YASKAWA V1000 - Digital Text Display; LED Screen Displays

No. Display Name Function
12 ALM LED Light
Refer to LED Screen Displays on page 79.
13 REV LED Light
14 DRV LED Light
15 FOUT LED Light
16 – Communication Port
Port used for USB Copy Unit, LCD Operator Keypad, and for connecting to a
PC.
NOTICE: Use only specified cable when making connections to
the drive.
Failure to comply may damage the drive.
NOTICE: Do not open the port cover wider than 90 degrees. Failure to
comply may break the port cover and leave the unprotected port
susceptible to damage.
u

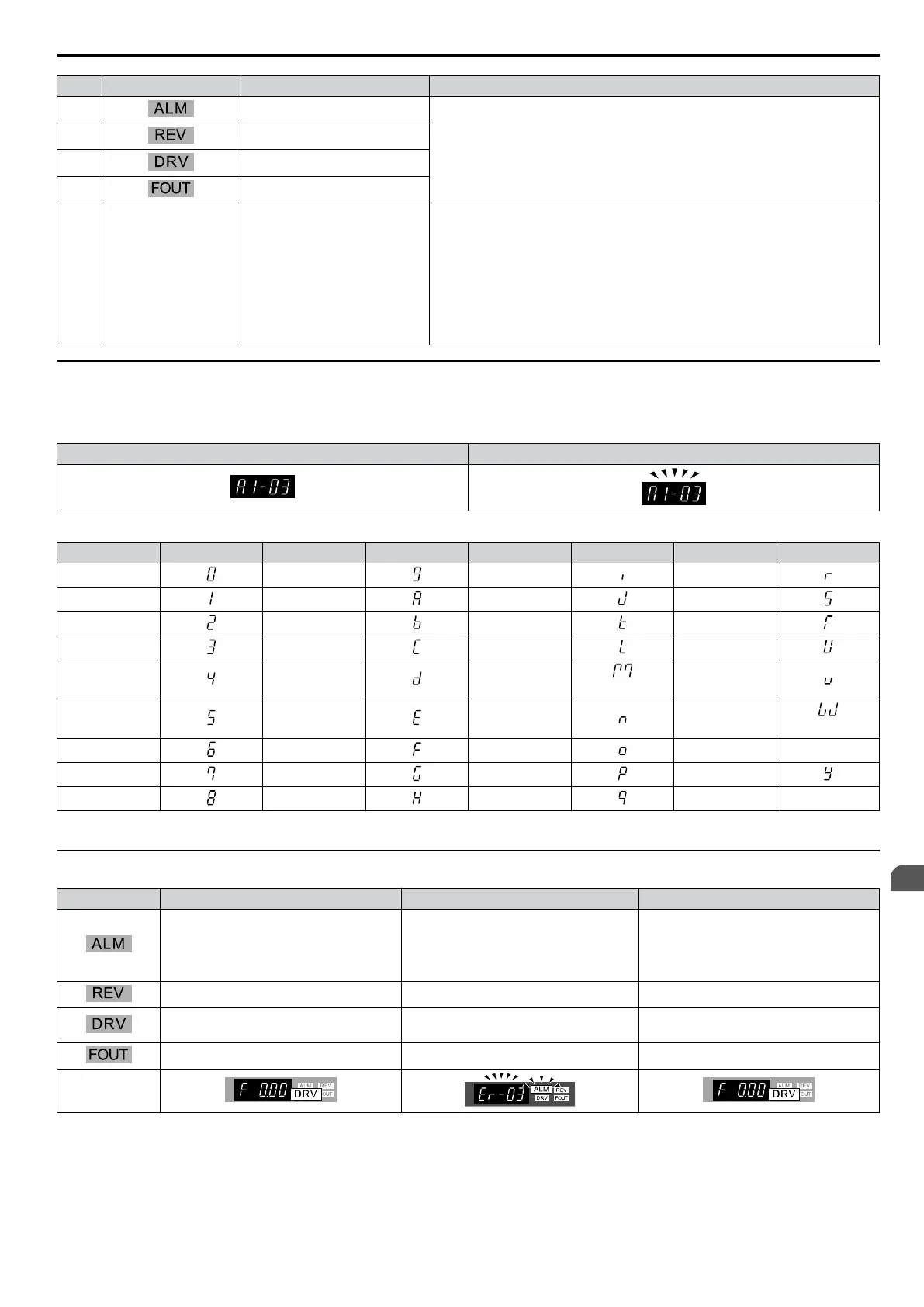

Digital Text Display
Text appears on the LED Operator as shown
below. This section explains the meaning of text as it appears on the display
screen.
Lit Flashing
Table 4.2 Digital Text Display
Text LED Text LED Text LED Text LED
0 9 I R
1 A J S
2 B K T
3 C L U
4 D M
<1>
V
5 E N W
<1>
6 F O X None
7 G P Y
8 H Q Z None
<1> Displayed in two digits.
u
LED Screen Displays
Display Lit Flashing Off
When the drive detects an alarm or error
• When an alarm occurs
•
oPE detected
•
When a fault or error occurs during
Auto-Tuning
Normal state (no fault or alarm)
Motor is rotating in reverse — Motor is rotating forward
Drive Mode
Auto-Tuning
When DriveWorksEZ is used
<1>
Programming Mode
Displays output frequency (Hz) — —
As illustrated in
this manual
STOP
<1> Refer to the DriveWorksEZ instruction manual for further information.
4.2 Using the Digital LED Operator
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
79
4
Start-Up Programming & Operation
