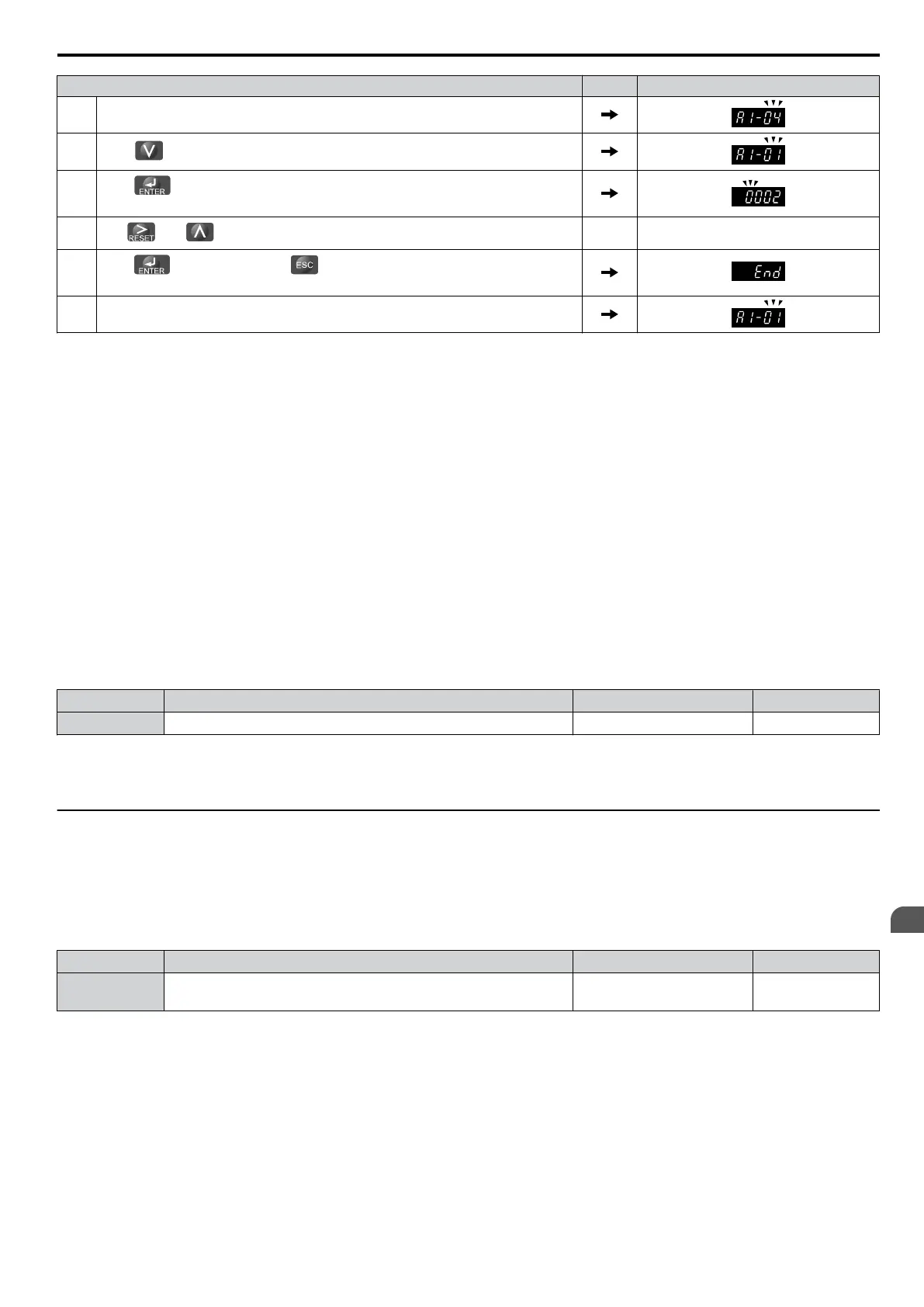

Step Display/Result
6. Drive returns to the parameter display.
7.
Press and scroll to A1-01.
8.
Press to display the value set to A1-01. If the first "0" blinks, parameter settings
are unlocked.
9.
Use and to change the value if desired. This is not typical.
10.
Press
to save the setting, or to return to the previous display without saving
changes.
11. The display automatically returns to the parameter display.
Note: Parameter settings can be edited after entering the
correct password. Performing a 2-Wire or 3-Wire initialization resets the password
to “0000”. Reenter the password to parameter A1-05 after drive initialization.
n
A1-06: Application Presets
Several Application Presets are available to facilitate drive setup for commonly used applications. Selecting one of these
Application Presets automatically sets the required parameters to default values and selects I/Os. In addition, Application
Preset parameters are assigned to the list of User Parameters, A2-01 through A2-16. These can be accessed in the Setup
Mode and provide quicker application adjustment by eliminating the need to scroll through multiple menus.
Refer to Application Selection on page 94 for details on parameter A1-06.
n
A1-07: DriveWorksEZ Function Selection
DriveWorksEZ is a software package that can be used to customize the drive functionality or add PLC functionality by
the interconnection and configuration of basic software function blocks. The drive performs program created by the user
in 2 ms cycles.
Parameter A1-07 can be used to enable or disable the DriveWorksEZ program inside the drive.
Note: 1. If DriveWorksEZ assigned functions to any multi-function output terminals, those functions stay set after disabling DriveWorksEZ.
2. Reinitialization using A1-03 does not reset A1-07 to the factory default value.
3. For more information on DriveWorksEZ, contact a Yaskawa representative or the Yaskawa sales department directly.
No. Parameter Name Setting Range Default
A1-07 DriveWorksEZ Function Selection 0 to 2 0
Setting 0: DWEZ Disabled
Setting 1: DWEZ Enabled
Setting 2: Digital Input
u
A2: User Parameters
n
A2-01 to A2-32: User Parameters
The user can select 32 parameters and assign them to A2-01 through A2-32. This saves time later scrolling through the
parameter
menu.
The
list
of
User
Parameters
can
also track the most recently edited settings and save those parameters to
this list.
No. Parameter Name Setting Range Default
A2-01 to A2-32 User Parameters 1 to 32 A1-02; b1-01 to o2-08
Depending on
A1-06
Saving User Parameters
To save specific parameters to A2-01 to A2-32, first set the access level to allow access to all parameters (A1-02 = 2).
Next assign the parameter number to the User Parameters list by entering it into one of the A2-oo parameters. By then
setting A1-01 to “1”, the access level can be restricted so that users can only set and reference the specific parameters
saved as User Parameters.
5.1 A: Initialization
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
115
5
Parameter Details
