YASKAWA V1000 - IP20;NEMA Type 1 Front and Bottom Cover Removal and Installation

u
IP20/NEMA Type 1 Front and Bottom Cover Removal and Installation
n
Removing the Protective Covers on an IP20/NEMA Type 1 Design
1.
Loosen the screw on the front cover to remove the front cover.

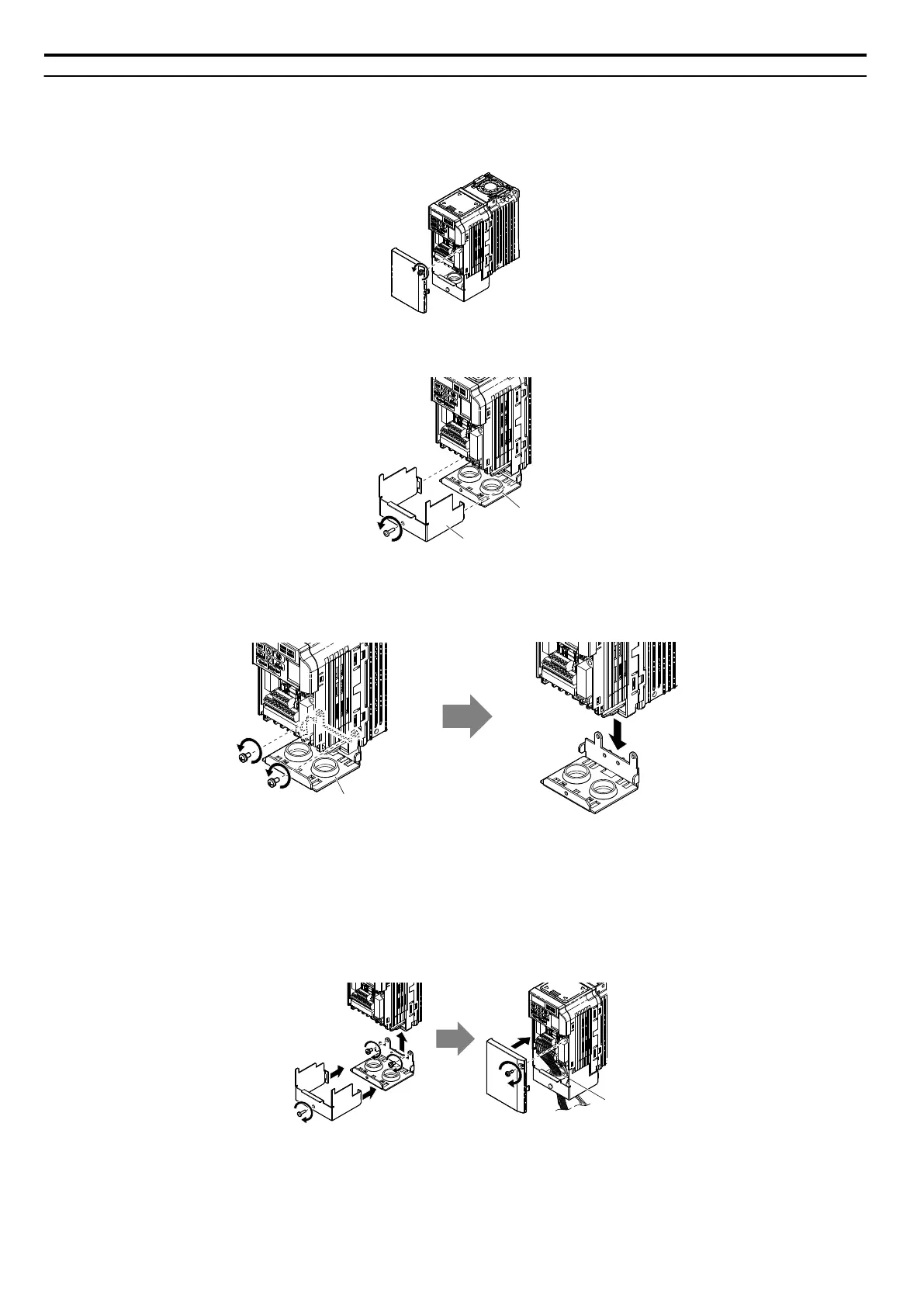

Figure 3.9 Remove the Front Cover on an IP20/NEMA Type 1 Drive
2.
Loosen the screw on the terminal cover to remove the terminal cover and expose the conduit bracket.
A
B
A – Conduit bracket B – Terminal cover
Figure 3.10 Remove the Terminal Cover on an IP20/NEMA Type 1 Drive
3.
Loosen two screws attaching the conduit bracket to remove.
A
A –Conduit bracket
Figure 3.11 Remove the Conduit Bracket on an IP20/NEMA Type 1 Drive
n
Reattaching the Protective Covers
Pass
power wiring and control signal wiring through
the exit holes on the bottom of the conduit bracket of the drive. Place
power wiring and control signal wiring in separate conduits. Properly connect all wiring after installing the drive and
connecting other devices. Reattach all protective covers when wiring is complete.
A
A –Pass power wiring and control signal wiring through different exit holes at the
bottom of the drive.
Figure 3.12 Reattach the Protective Covers and Conduit Bracket on an IP20/NEMA Type 1 Drive
