No. Parameter Name Setting Range Default
E3-04 Motor 2 Max Output Frequency 40.0 to 400.0 Hz
60.0 Hz
<3>
E3-05 Motor 2 Max Voltage
0.0 to 255.0 V
<1>
200.0 V
<1>
E3-06 Motor 2 Base Frequency 0.0 to 400.0 Hz
60.0 Hz
<3>
E3-07 Motor 2 Mid Output Frequency 0.0 to 400.0 Hz
<2>
<3>
E3-08 Motor 2 Mid Output Frequency Voltage
0.0 to 255.0 V
<1> <2>
E3-09 Motor 2 Minimum Output Frequency 0.0 to 400.0 Hz
<2>
<3>
E3-10 Motor 2 Minimum Output Frequency Voltage
0.0 to 255.0 V
<1> <2>
E3-11 Motor 2 Mid Output Frequency 2 0.0 to 400.0 Hz 0.0 Hz
E3-12 Motor 2 Mid Output Frequency Voltage 2
0.0 to 255.0 V
<1>
0.0 Vac
E3-13 Motor 2 Base Voltage
0.0 to 255.0 V
<1>
0.0 Vac
<1> Values shown here are for 200 V class drives. Multiply voltage values by 1.15 for U-spec drives. Double the value when using 400 V class
drives.
<2> Default setting is determined by the control mode for motor 2.
<3>
The default value is for the following localized drives: Japan (Model code: CIMR-VAoA) and Asia (Model code: CIMR-VToA) .Refer to
China Localized Drive Default Values on page 381 for the default values of China localized (Model code: CIMR-VBo
A) drives.
Output (V)
Frequency (Hz)
E3-05
E3-12
E3-13
E3-08
E3-10
E3-09
E3-07
E3-06
E3-11
E3-04

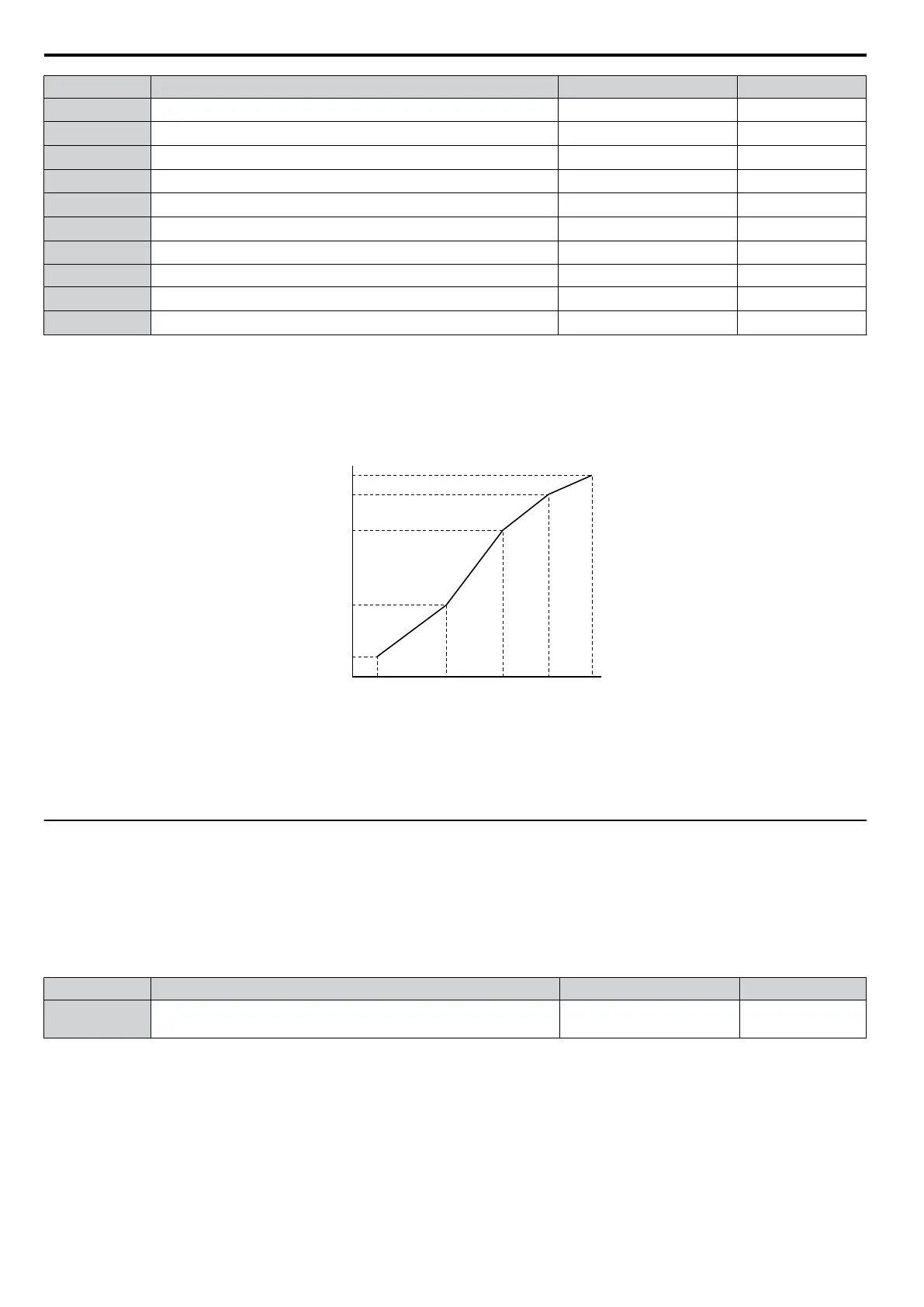

Figure 5.43 V/f Pattern for Motor 2
Note: 1. The following condition must be true when setting up the V/f pattern: E3-09
≤ E3-07 ≤
E3-06 ≤ E3-11 ≤ E3-04
2. To make the V/f pattern a straight line set E3-09 = E3-07. In this case the E3-08 setting is disregarded.
u
E4: Motor 2 Parameters
E4 parameters contain the motor data for motor
2. These parameters are usually set automatically during the Auto-Tuning
process. They may need to be set manually if there is a problem performing Auto-Tuning.
n
E4-01: Motor 2 Rated Current
Set E4-01 to the full load amps (FLA) stamped on the nameplate of motor 2. During Auto-Tuning the value must be entered
to parameter T1-04. If Auto-Tuning completes successfully, the value entered will automatically be saved to E4-01.
No. Parameter Name Setting Range Default
E4-01 Motor 2 Rated Current
10 to 200% of the drive rated
current.
Depending on
o2-04
Note: Display is in the following units: BA0001 to BA0018, 2A0001 to 2A0040, and 4A0001 to 4A0023: 0.01 A units.
2A0056 to 2A0069, 4A0031 to 4A0038: 0.1 A units.
n
E4-02: Motor 2 Rated Slip
This
parameter sets the motor 2 rated slip
frequency. The drive calculates this value automatically during Rotational Auto-
Tuning.
For information on calculating the motor rated slip, see the description for E2-02.
5.5 E: Motor Parameters
168
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
