u

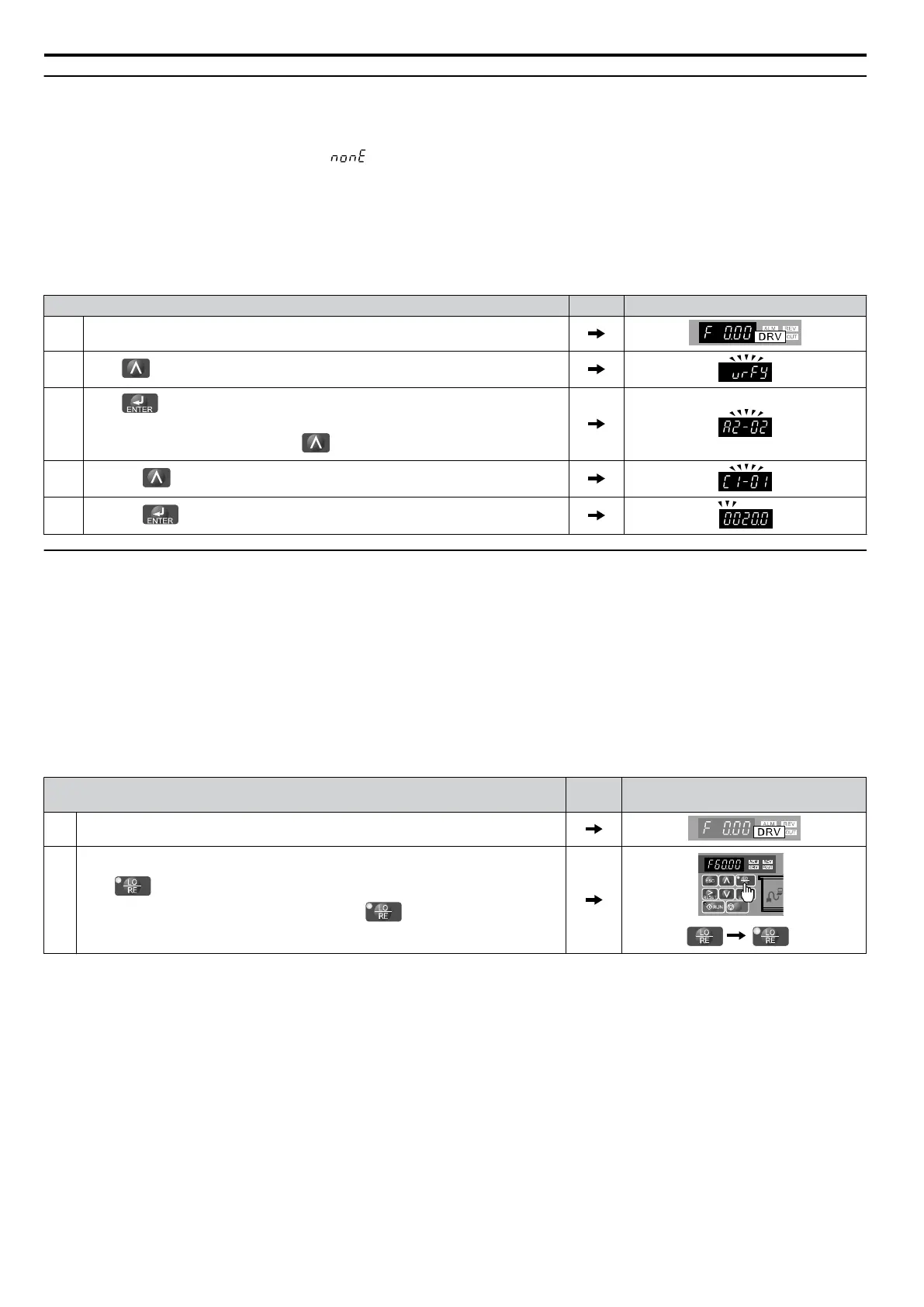

Verifying Parameter Changes: Verify Menu
The Verify Menu lists edited parameters from the Programming Mode or as a result of Auto-Tuning. The Verify Menu
helps determine which settings have been changed, and is particularly useful when replacing a drive. If no settings have
been changed, the Verify Menu will read . The Verify menu also allows users to access and re-edit previously edited
parameters.
Note:
The
Verify Menu will not display A1-oo
parameters (except for A1-02), nor will it display parameters A2-01 to A2-32 or E5-01 even
if those parameters have been changed from default settings.
The following example is a continuation of the steps beginning on page 85. Here, parameter C1-01 is accessed using the
Verify Menu and is changed again to 20.0 s.
To check the list of edited parameters:
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press
until the display shows the “Verify” representation.
3.
Press to enter the list of parameters that have been edited from their original
default settings.
Scroll through the list by pressing the key.
4.
Press the key until C1-01 appears.
5.
Press the key to access the setting value. (number farthest to the left flashes)
u
Switching Between LOCAL and REMOTE
Entering the run command using the LED operator is referred to as LOCAL, while entering the run command from an
external device via the control circuit terminals or network option is referred to as REMOTE.
WARNING! Sudden
Movement Hazard. The drive may start unexpectedly
if the Run command is already applied when switching from
LOCAL mode to REMOTE mode when b1-07 = 1, resulting in death or serious injury. Be sure all personnel are clear of rotating machinery
and electrical connections prior to switching between LOCAL mode and REMOTE mode.
There are two ways to switch between LOCAL and REMOTE.
Note: 1. After selecting LOCAL, the LO/RE light will remain lit.
2. The drive will not allow the user to switch between LOCAL and REMOTE during run.
n
Using the LO/RE Key on the LED Operator
Step Display/Result
1. Turn on the power to the drive. The initial display appears.
2.
Press . The LO/RE light will light up. The drive is now in Local.
To set the drive for REMOTE operation, press the key again.
n
Using Input Terminals S1 through S7 to Switch between LO/RE
Switch between LOCAL and REMOTE using one of the digital input terminals S1 through S7 (set the corresponding
parameter H1-01 through H1-07 to “1”).
Follow the example below to set the digital input terminals.
Note:
1. Refer to Parameter List on page 329 for a list of digital input selections.
2. Setting a multi-function input terminal to a value of 1 disables the LO/RE key on the LED operator.
4.3 The Drive and Programming Modes
86
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
