YASKAWA V1000 Technical Manual

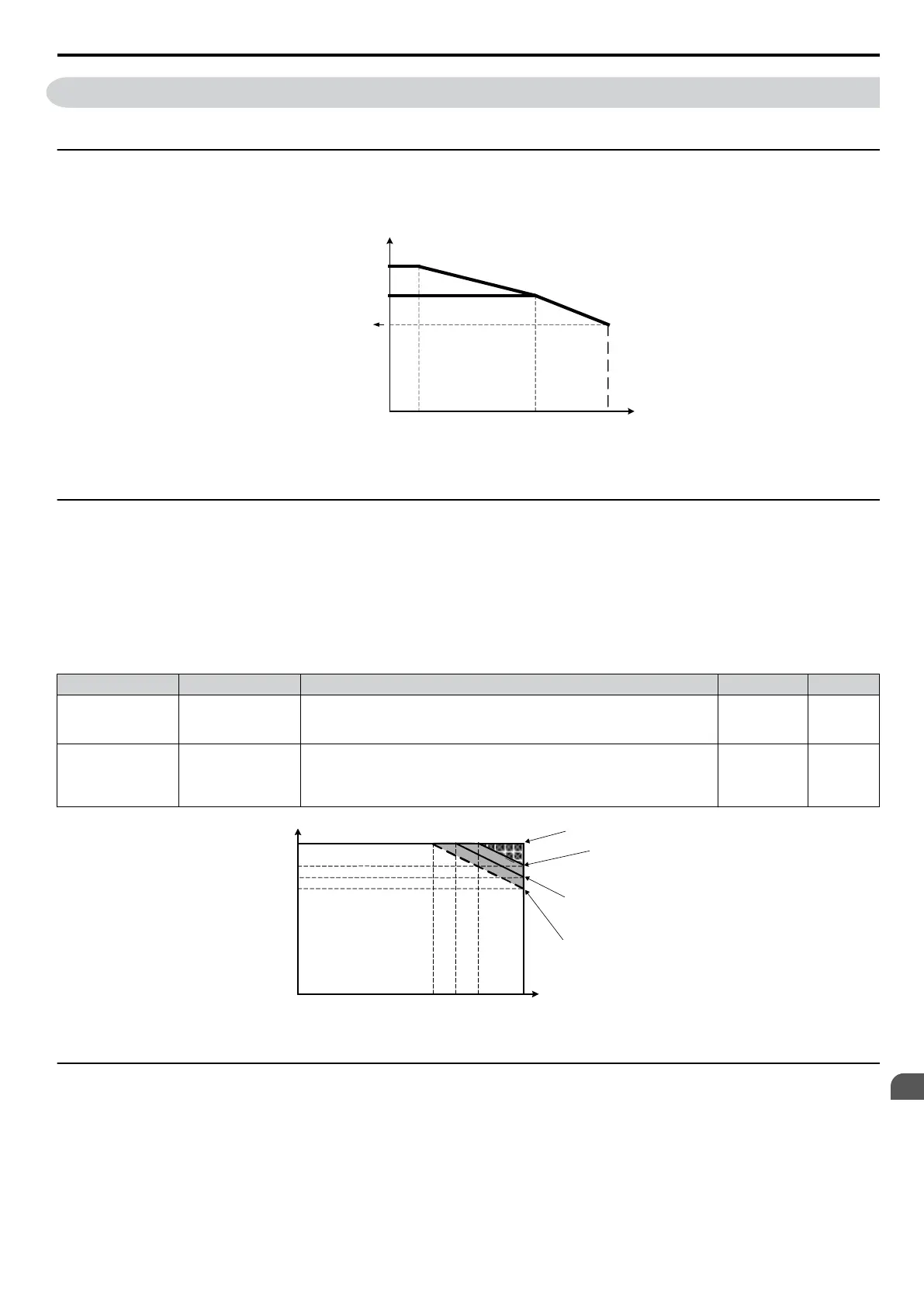

A.6 Drive Derating Data
The drive can be operated at above rated temperature, altitude and default carrier frequency by derating the drive capacity.
u
Carrier Frequency Derating
Derate drive capacity using Figure A.1 as the carrier frequency of the drive increases above the factory setting.
ND
10 (8)
15
0
HD
2
Drive
Rating
Carrier Frequency (C6-02)
200 V Class:
80% of HD
400 V Class:
60% of HD
Carrier Frequency Derating
Figure A.1 Carrier Frequency Derating
u
Temperature Derating
As
the
ambient
temperature
for
the
drive
is
increased above the drive specification the drive should be derated. Additionally
parameter L8-35 Installation Method Selection on page 327 should be set according to enclosure type and mounting method
as illustrated in Figure A.2.
n
Output Current Derating Due to Ambient Temperature
Set L8-12 and L8-35 according to the installation conditions when the ambient temperature is above the drive specification
or when drives are mounted side-by-side in a cabinet. The output current is derated as shown in Figure A.2.
No. Name Description Range Def.
L8-12
Ambient
Temperature
Setting
Adjust the drive overload (oL2) protection level when the drive is installed
in an environment that exceeds its ambient temperature rating.
-10 to 50 40 °C
L8-35
Installation Method
Selection
0: IP20/IP00 Drive
1: Side-by-Side Mounting
2: NEMA Type 1 Drive
3: Finless Drive or External Heatsink Installation
0 to 3 0
40
50
0%
30
o
35
50%
70%
80%
85%
100%
oo
o
Drive
Rating
Ambient temp C
Parameter L8-12
Parameter L8-35 = 0 (IP20/IP00 Drive)
Parameter L8-35 = 2
(NEMA Type 1 Drive)
Parameter L8-35 = 1
(Side-by-side Mounting)
Parameter L8-35 = 3
(Finless Drive or External
Heatsink Installation)
-10
o
o
Figure A.2 Ambient Temperature and Installation Method Derating
u
Altitude Derating
The
drive
standard
ratings
are
valid
for
an
installation altitude up to 1000 m. If the altitude exceeds 1000 m, both the drive
input voltage and the rated output current must be derated for 1% per 100 m. The maximum altitude is 3000 m.
A.6 Drive Derating Data
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
327
A
Specifications

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
