YASKAWA V1000 Technical Manual

u

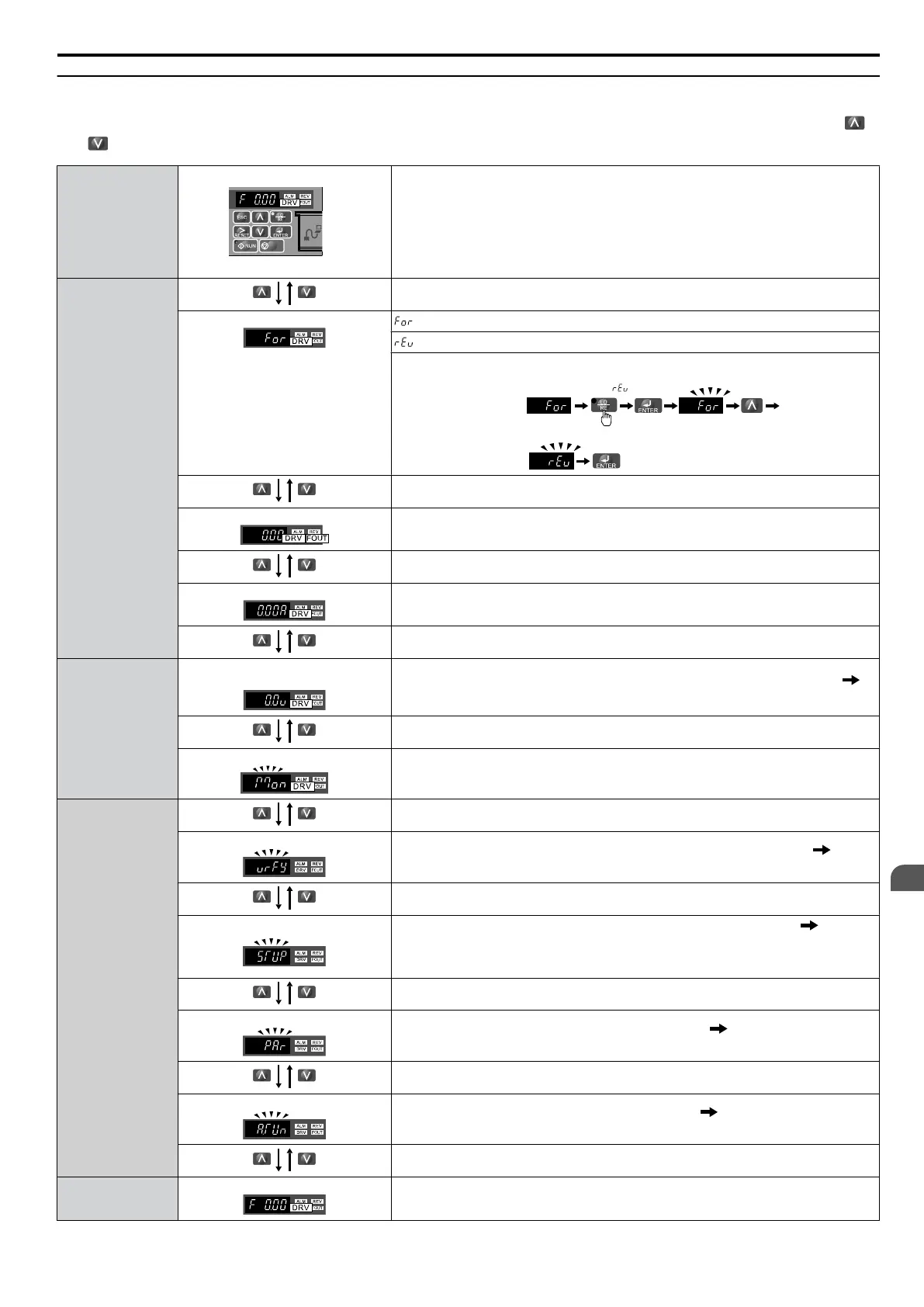

Navigating the Drive and Programming Modes
The drive is set to operate in Drive Mode when it is first powered up. Switch between display screens by using the
and keys.
Power Up
Frequency Reference
STOP
Default Setting
This display screen allows the user to monitor and set the frequency reference while the
drive is running. Refer to The Drive and Programming Modes on page 82.
Note: The user can select items to display when the drive is first powered up by setting
parameter o1-02.
Drive Mode
Forward/Reverse
STOP
: Motor rotates forward.
: Motor rotates in reverse.
Note: For applications that should not run in reverse (fans, pumps, etc.), set parameter
b1-04 = “1” to prohibit the motor from rotating in reverse. This sequence also puts the
drive in LOCAL mode.
The LED is lit when
LOCAL is selected
Switching to reverse:
Output Frequency Display
STOP
Monitors the frequency output by the drive.
Output Current Display
STOP
Monitors the output current of the drive.
Drive Mode
Output Voltage Reference
(Default setting)
STOP
Scroll through o1-01 (User Monitor Selection) until the desired contents appear.
Refer to Parameter List on page 329
Monitor Display
STOP
Monitor parameters (U parameters) are displayed.
Programming
Mode
Verify Function
STOP
Lists all parameters that have been edited or changed from default settings. Refer
to Verifying Parameter Changes: Verify Menu on page 86.
Setup
STOP
A select list of parameters necessary to get the drive operational quickly. Refer to
The Setup Group within the Programming Mode on page 84.
Note: Parameters to be displayed differ depending on the setting of A1-06 (Application
Preset). Refer to Application Selection on page 94.
Parameter Setting
STOP
Allows the user to access and edit all parameter settings. Refer to Parameter List
on page 329.
Auto-Tuning
STOP
Motor parameters are calculated and set automatically. Refer to Auto-Tuning on
page 100.
Drive Mode
Frequency Reference
STOP
Returns to the frequency reference display screen.
4.3 The Drive and Programming Modes
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
83
4
Start-Up Programming & Operation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
