IP20/NEMA Type 1 Top Cover Removal and Installation
To improve the ambient temperature rating of a NEMA Type 1 drive from 40 °C to 50 °C or to mount NEMA Type 1
drives side-by-side, the top cover can be removed. Remove the top cover and set L8-35 to “2”.
Refer to Temperature Derating on page 327 for details.
Note: Removing the top cover of a
NEMA Type 1 drive converts the drive to an IP20/Open-Chassis rating, and the drive will no longer have
a NEMA Type 1 rating.
n
Removing the Top Cover
Insert the blade of a straight-edge screwdriver into the opening of the top cover. Gently lift up on the front cover as indicated
by the arrow in Figure 3.13 to remove it from the drive.

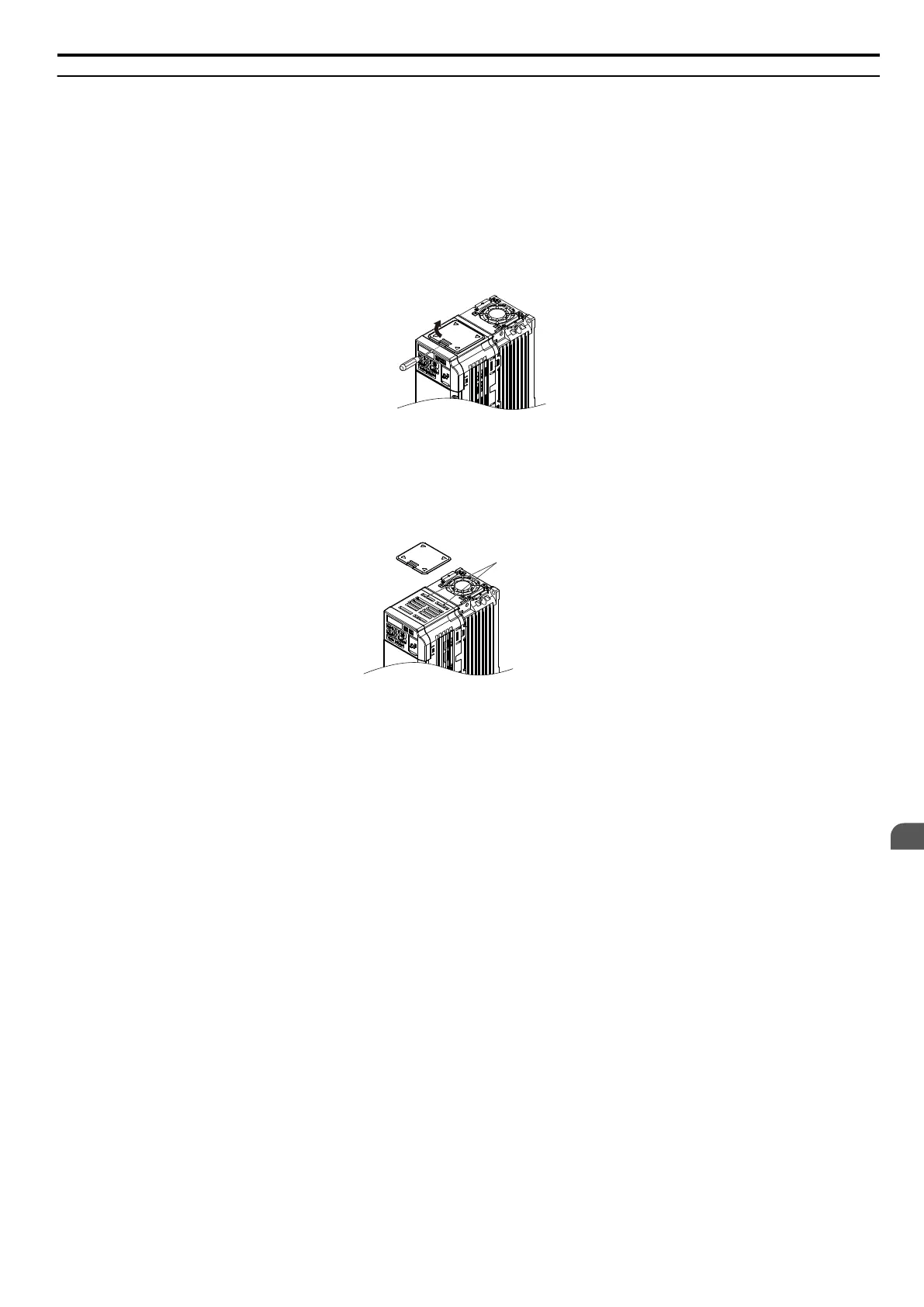

Figure 3.13 Removing the Top Cover
n
Reattaching the Top Cover
Align
the connection tabs on the underside of
the top cover with the connection tabs on the drive. Pinch in on the top cover
to click the cover into place on the drive.
Connection tabs
Figure 3.14 Reattaching the Top Cover
3.5 Protective Covers
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
55
3
Electrical Installation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
