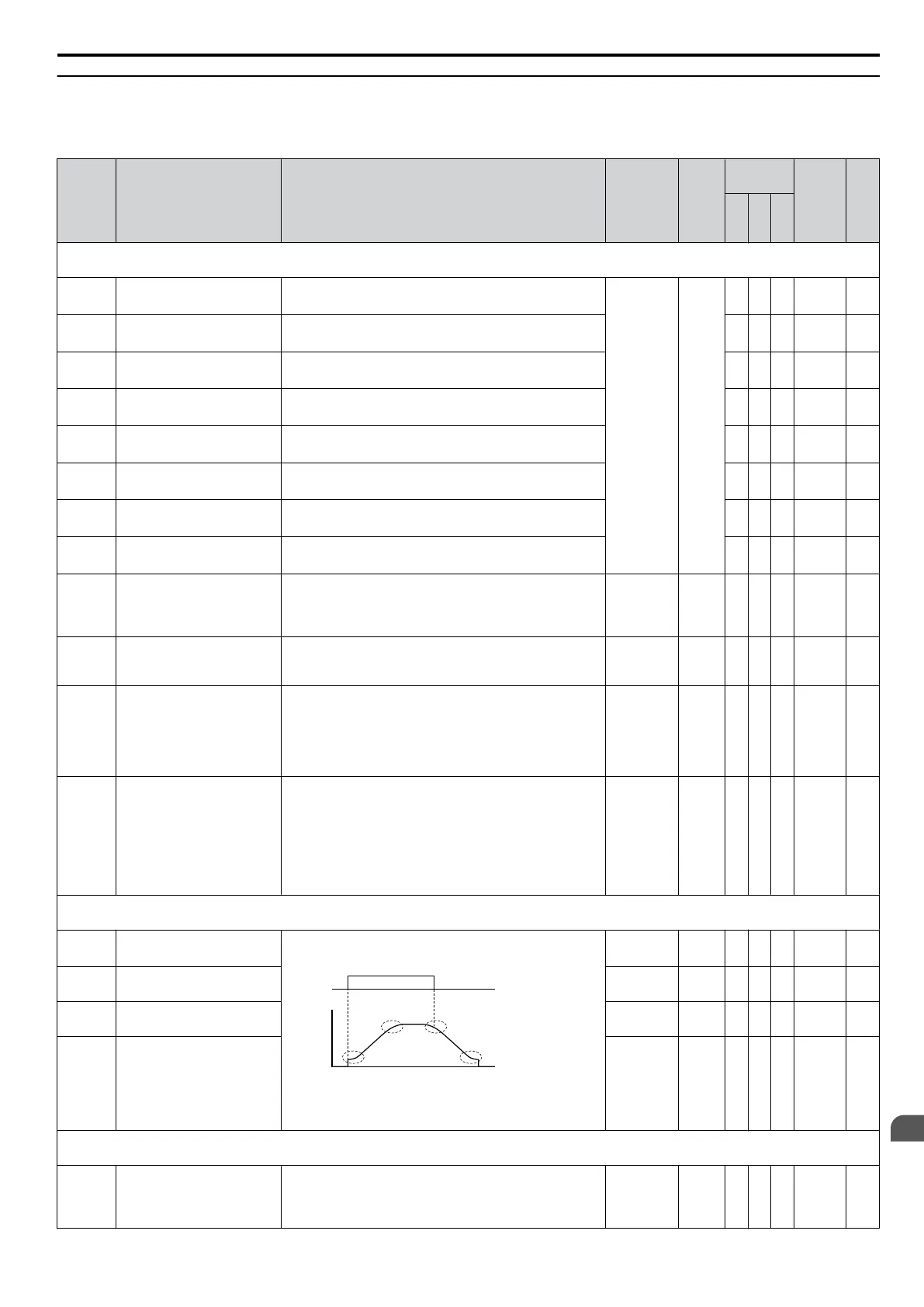

C: Tuning
C parameters are used to adjust the acceleration
and deceleration times, S-curves, slip and torque compensation functions
and carrier frequency selections.
No. Name Description Range Def.
Control
Mode
Addr.
Hex
Pg.
V/
f
O
L
V
P
M
C1: Acceleration and Deceleration Times
Use C1 parameters to configure motor acceleration and deceleration.
C1-01
<1>
Acceleration Time 1 Sets the time to accelerate from 0 to maximum frequency.
0.0 to
6000.0
<2>
10.0 s
S S S 200 142
C1-02
<1>
Deceleration Time 1
Sets the time to decelerate from maximum frequency to
0.
S S S 201 142
C1-03
<1>
Acceleration Time 2
Sets the time to accelerate from 0 to maximum frequency
when
Accel/Decel times 2 are selected by a digital input.
A A A 202 142
C1-04
<1>
Deceleration Time 2
Sets the time to decelerate from maximum frequency to 0
when Accel/Decel times 2 are selected by a
digital input.
A A A 203 142
C1-05
<1>
Acceleration Time 3 (Motor
2 Accel Time 1)
Sets the time to accelerate from 0 to maximum frequency
when Accel/Decel times 3 are selected by a
digital input.
A A A 204 142
C1-06
<1>
Deceleration Time 3 (Motor
2 Decel Time 1)
Sets the time to decelerate from maximum frequency to 0
when Accel/Decel times 3 are selected by a
digital input.
A A A 205 142
C1-07
<1>
Acceleration Time 4 (Motor
2 Accel Time 2)
Sets the time to accelerate from 0 to maximum frequency
when Accel/Decel times 4 are selected by a
digital input.
A A A 206 142
C1-08
<1>
Deceleration Time 4 (Motor
2 Decel Time 2)
Sets the time to decelerate from maximum
frequency to 0
when Accel/Decel times 4 are selected by a digital input.
A A A 207 142
C1-09 Fast-Stop Time
Sets the time to decelerate from maximum frequency to 0
for the multi-function input fast-stop function.
Note: This parameter is also used by selecting
“Fast-Stop”
as a Stop Method when a fault is detected.
0.0 to
6000.0
<2>
10.0 s A A A 208 143
C1-10
Accel/Decel Time Setting
Units
Sets the resolution of C1-01 to C1-09.
0: 0.01 s (0.00 to 600.00 s)
1: 0.1 s (0.0 to 6000.0 s)
0, 1 1 A A A 209 143
C1-11
Accel/Decel Time
Switching Frequency
Sets the frequency for automatic acceleration/
deceleration switching.
Below set frequency: Accel/Decel Time 4
Above set frequency: Accel/Decel Time 1
The multi-function input “Accel/Decel Time 1” or
“Accel/Decel Time 2” take priority.
0.0 to 400.0
Hz
0.0 Hz A A A 20A 144
C1-14
<3>
Accel/Decel Rate Frequency
Sets the base frequency used to calculate acceleration and
deceleration times.
When
set to 0.0 Hz, the drive calculates the time required
to accelerate from 0 Hz to E1-04, and decelerate from
E1-04 down to 0 Hz (conventional setting).
When set to any other value above 0.0 Hz, the drive
calculates the time required to accelerate from 0 Hz to
C1-14, and to decelerate from C1-14 down to 0 Hz.
0.0 to 400.0
Hz
0.0 Hz A A A 264 144
C2: S-Curve Characteristics
Use C2 parameters to configure S-curve operation.
C2-01
S-Curve Characteristic at
Accel Start
The S-curve can be controlled in the four points shown
below.
Run
command
Output
frequency
Time
C2-01
C2-04
C2-02
C2-03
ON
OFF
S-curve is used to further soften the starting and stopping
ramp. The longer the S-curve time, the softer the starting
and stopping ramp.
0.00 to
10.00
0.20 s
<4>
A A A 20B 145
C2-02
S-Curve Characteristic at
Accel End
0.00 to 10.0 0.20 s A A A 20C 145
C2-03
S-Curve Characteristic at
Decel Start
0.00 to 10.0 0.20 s A A A 20D 145
C2-04
S-Curve Characteristic at
Decel End
0.00 to 10.0 0.00 s A A A 20E 145
C3: Slip Compensation
Use C3 parameters to configure the slip compensation function.
C3-01
<1>
Slip Compensation Gain
Sets the slip compensation gain. Decides for what amount
the
output frequency is boosted in order to compensate the
slip.
Note: Adjustment is not normally required.
0.0 to 2.5
0.0
<4>
A A − 20F 146
B.2 Parameter Table
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
337
B
Parameter List
