u
Removing and Attaching the Protective Covers
Refer to Electrical Installation on page 45,
for information regarding the removal and reattachment of protective covers.
u

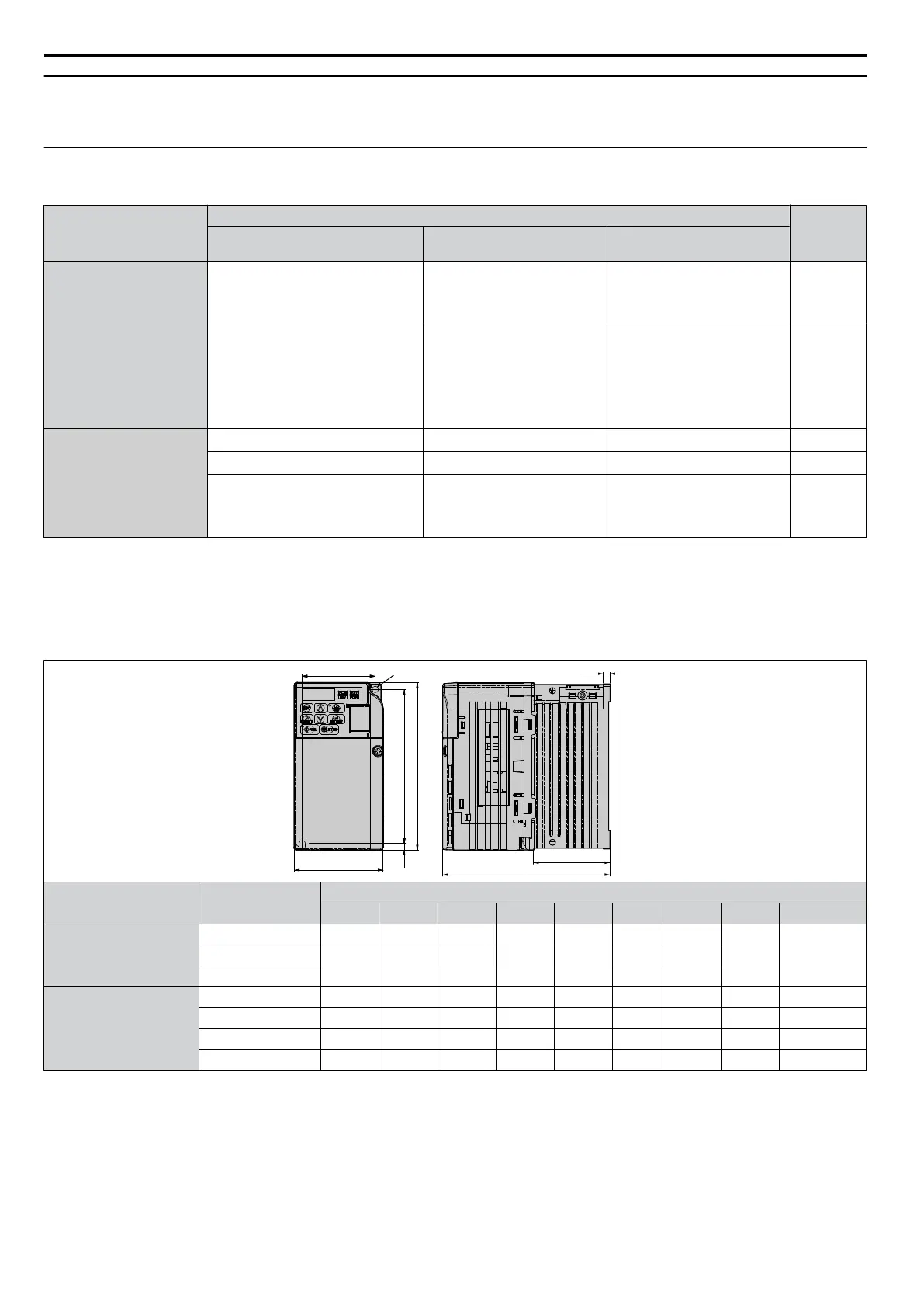

Exterior and Mounting Dimensions
Table 2.2 Drive Models and Types
Protective Design
Drive Model
Page
Single-Phase
200 V Class
Three-Phase
200 V Class
Three-Phase
400 V Class
IP20/Open-Chassis
BA0001B
BA0002B
BA0003B
2A0001B
2A0002B
2A0004B
2A0006B
– 40
BA0006B
BA0010B
BA0012B
BA0018B
2A0008B
2A0010B
2A0012B
2A0018B
2A0020B
4A0001B
4A0002B
4A0004B
4A0005B
4A0007B
4A0009B
4A0011B
41
IP20/NEMAType 1
<1> <1>
– 41
<1> <1> <1>
42
–
2A0030F
2A0040F
2A0056F
2A0069F
4A0018F
4A0023F
4A0031F
4A0038F
43
<1> Models in this capacity range have IP20/Open-Chassis enclosures. Customers may convert these models to IP20/NEMA Type 1 enclosures
using an IP20/NEMA Type 1 Kit (EZZ020564o). The figure shows an IP20/Open-Chassis model fitted with the NEMA Type 1 Kit.
Note: Refer to Specifications on page 317 for information on the amount of heat generated by the drive and appropriate cooling methods.
n
IP20/Open-Chassis Drives
Table 2.3 IP20/Open-Chassis
D1
t1
D
2-M4
W1
H1H2
W
H
Voltage Class Drive Model
Dimensions (mm)
W H D W1 H1 H2 D1 t1 Wt. (kg)
Single-Phase
200 V Class
BA0001B 68 128 76 56 118 5 6.5 3 0.6
BA0002B 68 128 76 56 118 5 6.5 3 0.6
BA0003B 68 128 118 56 118 5 38.5 5 1.0
Three-Phase
200 V Class
2A0001B 68 128 76 56 118 5 6.5 3 0.6
2A0002B 68 128 76 56 118 5 6.5 3 0.6
2A0004B 68 128 108 56 118 5 38.5 5 0.9
2A0006B 68 128 128 56 118 5 58.5 5 1.1
2.2 Mechanical Installation
40
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
