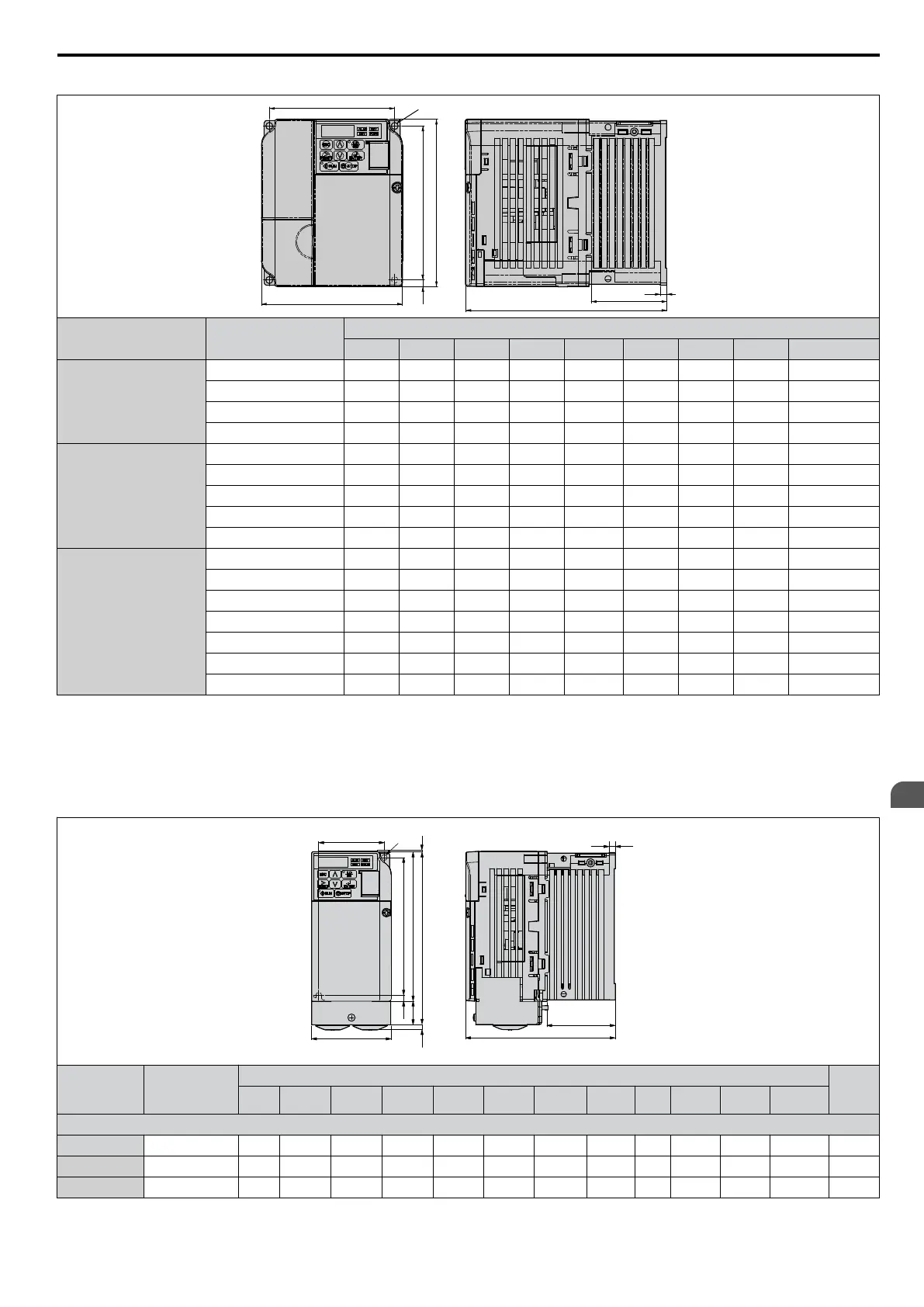

Table 2.4 IP20/Open-Chassis
t1
D
D1
4-M4
H
W1
W
H2 H1
Voltage Class Drive Model
Dimensions (mm)
W H D W1 H1 H2 D1 t1 Wt. (kg)
Single-Phase
200 V Class
BA0006B 108 128 137.5 96 118 5 58 5 1.7
BA0010B 108 128 154 96 118 5 58 5 1.8
BA0012B 140 128 163 128 118 5 65 5 2.4
BA0018B 170 128 180 158 118 5 65 5 3.0
Three-Phase
200 V Class
2A0008B 108 128 129 96 118 5 58 5 1.7
2A0010B 108 128 129 96 118 5 58 5 1.7
2A0012B 108 128 137.5 96 118 5 58 5 1.7
2A0018B 140 128 143 128 118 5 65 5 2.4
2A0020B 140 128 143 128 118 5 65 5 2.4
Three-Phase
400 V Class
4A0001B 108 128 81 96 118 5 10 5 1.0
4A0002B 108 128 99 96 118 5 28 5 1.2
4A0004B 108 128 137.5 96 118 5 58 5 1.7
4A0005B 108 128 154 96 118 5 58 5 1.7
4A0007B 108 128 154 96 118 5 58 5 1.7
4A0009B 108 128 154 96 118 5 58 5 1.7
4A0011B 140 128 143 128 118 5 65 5 2.4
n
IP20/Open-Chassis Enclosure Drives Converted to IP20/NEMA Type 1 Enclosure Drives
Converting an IP20/Open-Chassis design to an IP20/NEMA Type 1 requires the NEMA Type 1 Kit option
(EZZ020564o). The values appearing in Table 2.5, Table 2.6, and Table 2.7 represent the dimensions after the NEMA
Type 1 Kit has been installed.
Table 2.5 IP20/Open-Chassis Design Fitted with NEMA Type 1 Kit
W
W1
H1H4
H5 H2
HH3
D1
D
2-M4
t1
H6
Drive Model
NEMA Type 1
Kit Model
EZZ
Dimensions (mm)
Wt. (kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 t1
Single-Phase 200 V Class
BA0001B 020564A 68 149.5 76 56 128 118 4 20 5 1.5 6.5 3 0.8
BA0002B 020564A 68 149.5 76 56 128 118 4 20 5 1.5 6.5 3 0.8
BA0003B 020564B 68 149.5 118 56 128 118 4 20 5 1.5 38.5 5 1.2
2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
41
2
Mechanical Installation
