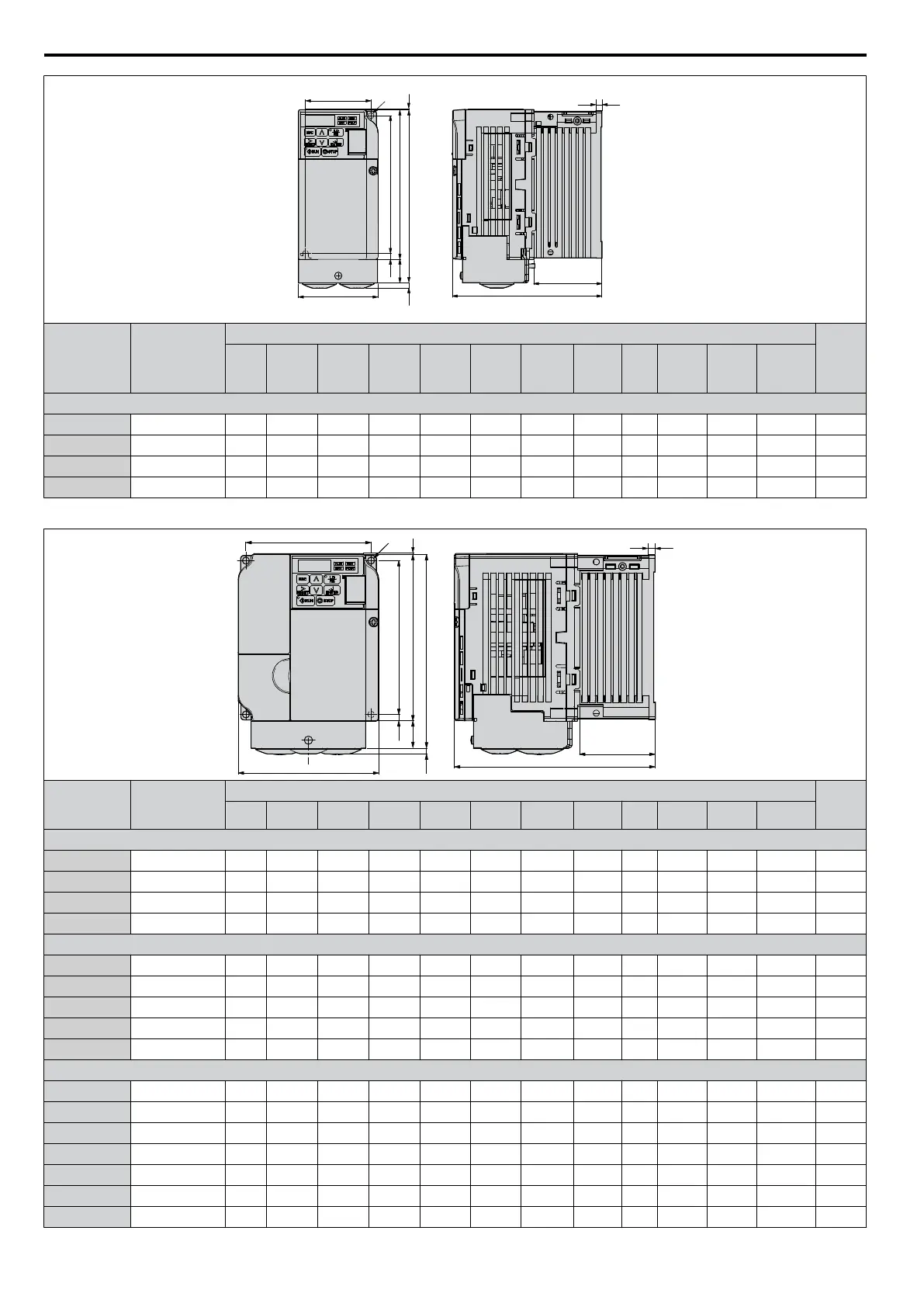

YASKAWA V1000 Technical Manual

W
W1
H1H4
H5 H2
HH3
D1
D
2-M4
t1
H6
Drive Model
NEMA Type 1
Kit Model
EZZ
Dimensions (mm)
Wt. (kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 t1
Three-Phase 200 V Class
2A0001B 020564A 68 149.5 76 56 128 118 4 20 5 1.5 6.5 3 0.8
2A0002B 020564A 68 149.5 76 56 128 118 4 20 5 1.5 6.5 3 0.8
2A0004B 020564A 68 149.5 108 56 128 118 4 20 5 1.5 38.5 5 1.1
2A0006B 020564A 68 149.5 128 56 128 118 4 20 5 1.5 58.5 5 1.3
Table 2.6 IP20/Open-Chassis Design Fitted with the NEMA Type 1 Kit
H6
4-M4
W1
W
H5 H2
H4
HH3
D1
D
H1
t1
Drive Model
NEMA Type 1
Kit Model
EZZ
Dimensions (mm)
Wt. (kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 t1
Single-Phase 200 V Class
BA0006B 020564C 108 149.5 137.5 96 128 118 4 20 5 1.5 58 5 1.9
BA0010B 020564D 108 149.5 154 96 128 118 4 20 5 1.5 58 5 2.0
BA0012B 020564E 140 153 163 128 128 118 4.8 20 5 5 65 5 2.6
BA0018B 020564F 170 171 180 158 128 118 4.8 38 5 5 65 5 3.3
Three-Phase 200 V Class
2A0008B 020564G 108 149.5 129 96 128 118 4 20 5 1.5 58 5 1.9
2A0010B 020564G 108 149.5 129 96 128 118 4 20 5 1.5 58 5 1.9
2A0012B 020564C 108 149.5 137.5 96 128 118 4 20 5 1.5 58 5 1.9
2A0018B 020564H 140 153 143 128 128 118 4.8 20 5 5 65 5 2.6
2A0020B 020564H 140 153 143 128 128 118 4.8 20 5 5 65 5 2.6
Three-Phase 400 V Class
4A0001B 020564G 108 149.5 81 96 128 118 4 20 5 1.5 10 5 1.2
4A0002B 020564G 108 149.5 99 96 128 118 4 20 5 1.5 28 5 1.4
4A0004B 020564C 108 149.5 137.5 96 128 118 4 20 5 1.5 58 5 1.9
4A0005B 020564J 108 149.5 154 96 128 118 4 20 5 1.5 58 5 1.9
4A0007B 020564J 108 149.5 154 96 128 118 4 20 5 1.5 58 5 1.9
4A0009B 020564J 108 149.5 154 96 128 118 4 20 5 1.5 58 5 1.9
4A0011B 020564H 140 153 143 128 128 118 4.8 20 5 5 65 5 2.6
2.2 Mechanical Installation
42
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
