YASKAWA V1000 Technical Manual

n
IP20/NEMA Type 1 Drives

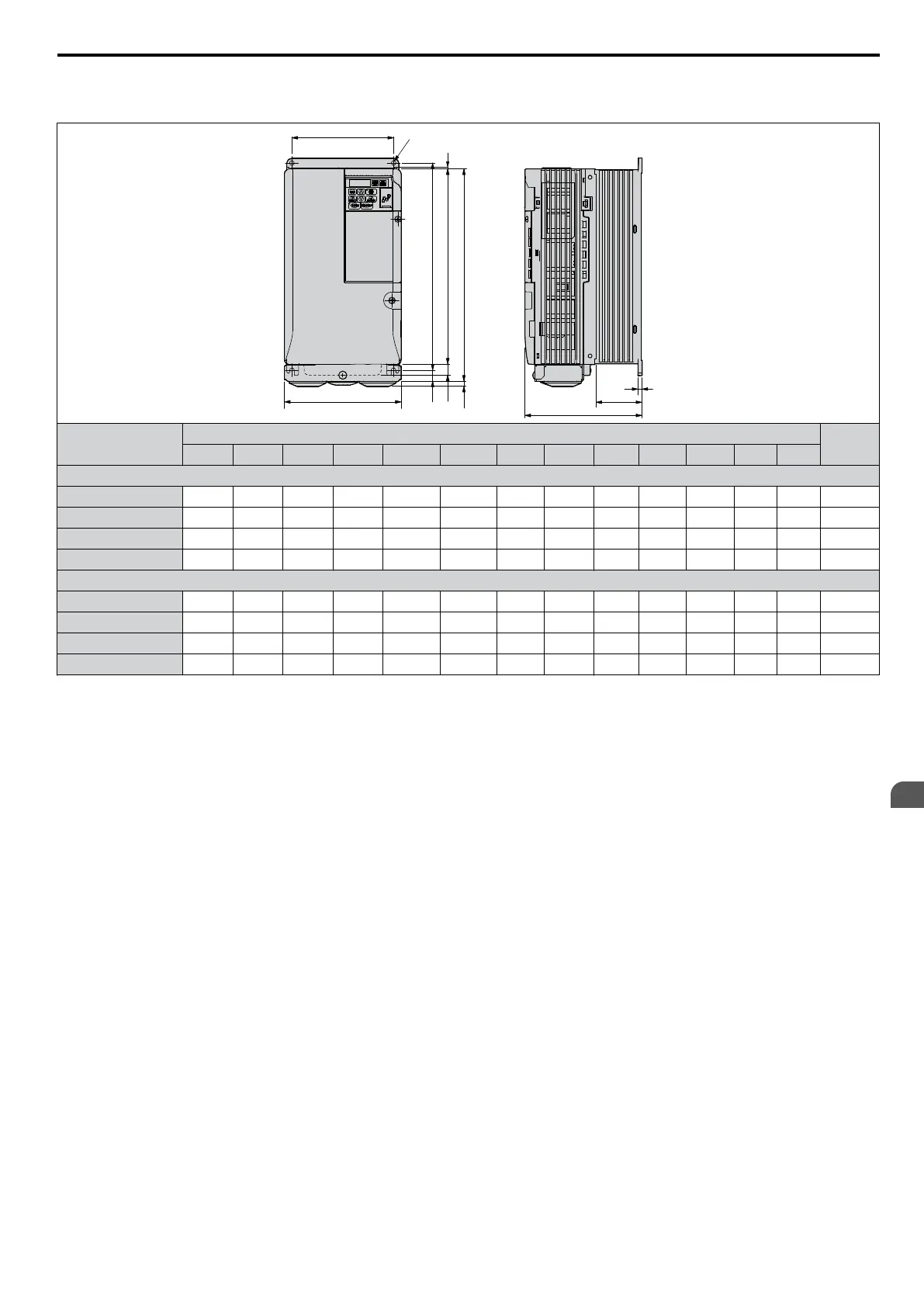

Table 2.7 IP20/NEMA Type 1
W1
W
H5
H2
H4
H
H3
D1
t1
D
H1
4-d
H6
Drive Model
Dimensions (mm)
Wt. (kg)
W H D W1 H1 H2 H3 H4 H5 H6 D1 t1 d
Three-Phase 200 V Class
2A0030F 140 254 140 122 234 248 6 13 13 1.5 55 5 M5 3.8
2A0040F 140 254 140 122 234 248 6 13 13 1.5 55 5 M5 3.8
2A0056F 180 290 163 160 270 284 6 15 13 1.5 75 5 M5 5.5
2A0069F 220 350 187 192 320 336 7 15 22 1.5 78 5 M6 9.2
Three-Phase 400 V Class
4A0018F 140 254 140 122 234 248 6 13 13 1.5 55 5 M5 3.8
4A0023F 140 254 140 122 234 248 6 13 13 1.5 55 5 M5 3.8
4A0031F 180 290 143 160 270 284 6 15 13 1.5 55 5 M5 5.2
4A0038F 180 290 163 160 270 284 6 15 13 1.5 75 5 M5 5.5
2.2 Mechanical Installation
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
43
2
Mechanical Installation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
