YASKAWA V1000 Technical Manual

3.4 Terminal Block Configuration
The figures in this section provide illustrations of the main circuit terminal block configurations of the different drive sizes.
Models: CIMR-V
BA0001, 0002, 0003
CIMR-V2A0001, 0002, 0004, 0006

Models: CIMR-V
BA0006, 0010, 0012
CIMR-V2A0008, 0010, 0012, 0018, 0020

CIMR-V4A0001, 0002, 0004, 0005
0007, 0009, 0011
Models: CIMR-V
2A0030, 0040
CIMR-V4A0018, 0023

Model: CIMR-V
2A0069

Model: CIMR-V
BA0018

Models: CIMR-V
2A0056
CIMR-V4A0031, 0038


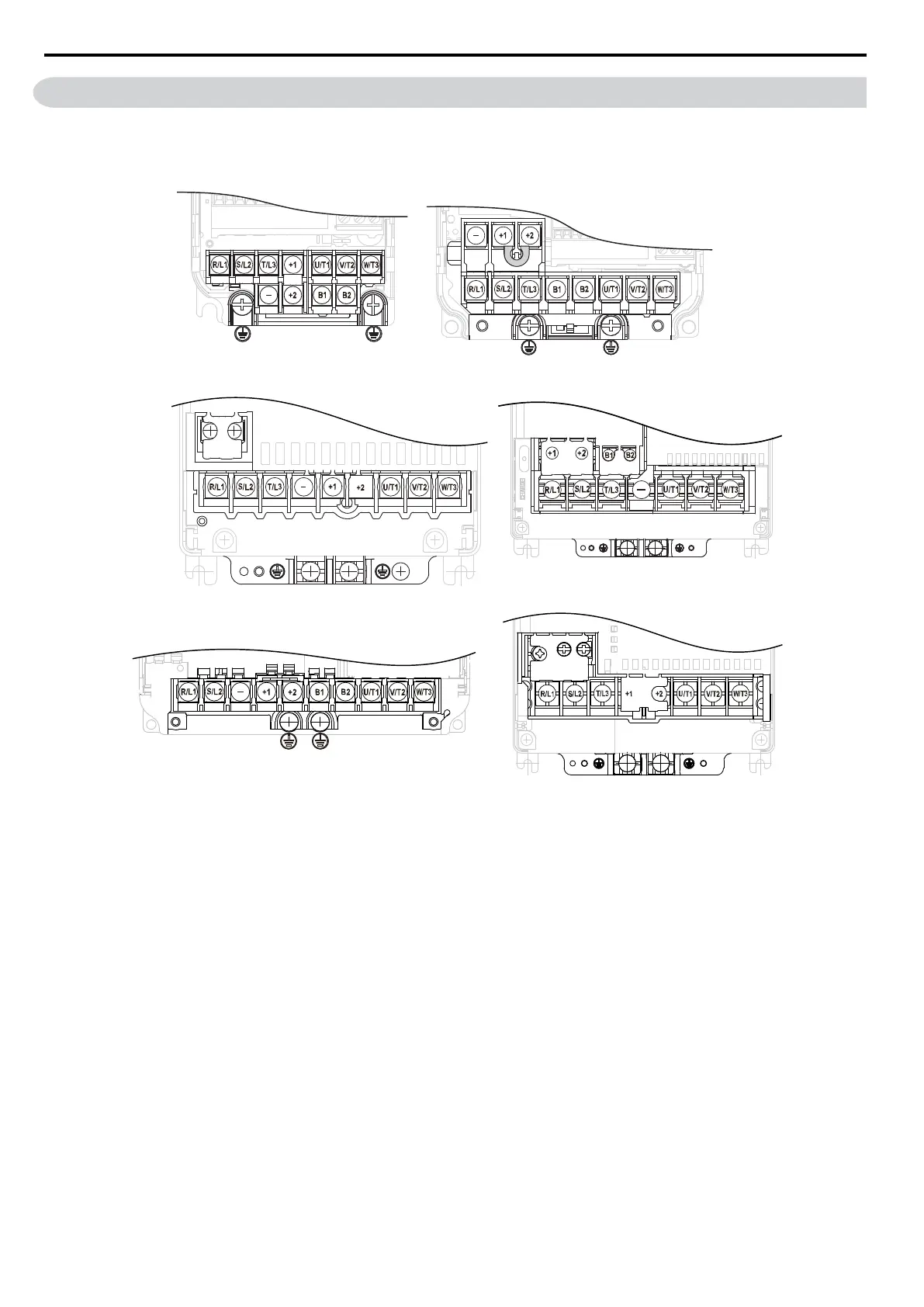

Figure 3.5 Main Circuit Terminal Block Configurations
3.4 Terminal Block Configuration
52
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
