Zero-Phase Reactor
A zero-phase reactor can be used to reduce the noise on the input and output sides of the drive.
Close-up of V/T2-phase wiring
1st pass
4th pass
3rd pass
2nd pass
D
E
F
C
B
A
Pass each wire (U/T1, V/T2, W/T3)
through the core 4 times.
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
A – Power supply
B – MCCB
C – Zero-phase reactor on input side
D – Drive
E – Zero-phase reactor on output side
F – Motor

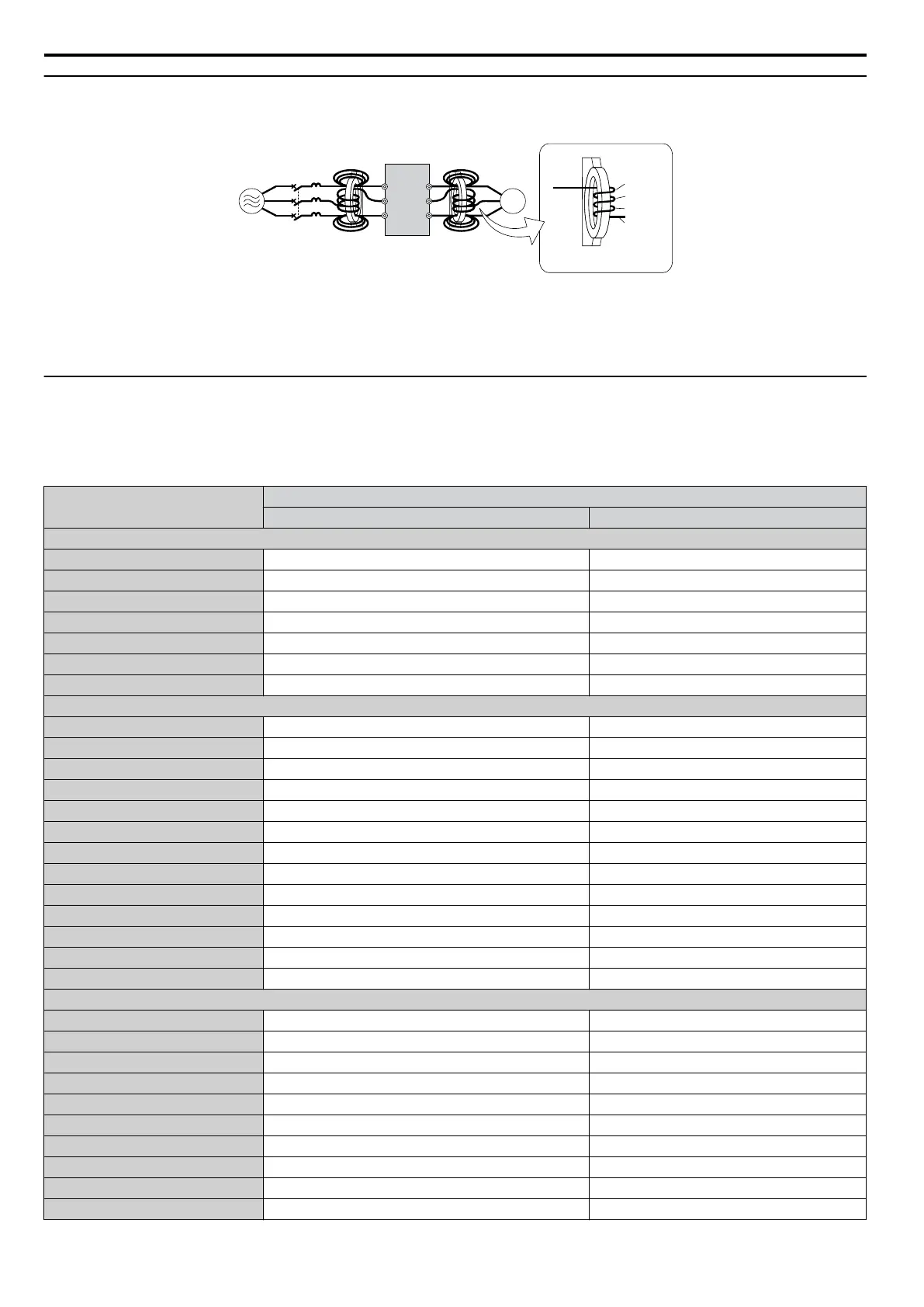

Figure 8.10 Zero-Phase Reactor
u
Installing Fuses on the Input Side
Always install input fuses to the input side of the as a protective measure against damage caused by a short circuit.
Refer to Table 8.2 for input fuse selection.
Table 8.2
Input Fuses
Drive Model
Class L Fuse Type Manufacturer: Fuji Electric
Model Fuse Ampere Rating
Single-Phase 200 V Class
BA0001 CR6L-20/UL 20
BA0002 CR6L-30/UL 30
BA0003 CR6L-50/UL 50
BA0006 CR6L-75/UL 75
BA0010 CR6L-100/UL 100
BA0012 CR6L-100/UL 100
BA0018 CR6L-150/UL 150
Three-Phase 200 V Class
2A0001 CR6L-20/UL 20
2A0002 CR6L-20/UL 20
2A0004 CR6L-20/UL 20
2A0006 CR6L-30/UL 30
2A0008 CR6L-50/UL 50
2A0010 CR6L-50/UL 50
2A0012 CR6L-50/UL 50
2A0018 CR6L-75/UL 75
2A0020 CR6L-75/UL 75
2A0030 CR6L-100/UL 100
2A0040 CR6L-150/UL 150
2A0056 CR6L-150/UL 150
2A0069 CR6L-200/UL 200
Three-Phase 400 V Class
4A0001 CR6L-20/UL 20
4A0002 CR6L-20/UL 20
4A0004 CR6L-50/UL 50
4A0005 CR6L-50/UL 50
4A0007 CR6L-50/UL 50
4A0009 CR6L-50/UL 50
4A0011 CR6L-50/UL 50
4A0018 CR6L-50/UL 50
4A0023 CR6L-75/UL 75
4A0031 CR6L-100/UL 100
8.4 Installing Peripheral Devices
