YASKAWA V1000 Technical Manual

u
IP20/NEMA Type 1 Enclosure
n
Three-Phase AC 200 V 2A0030F to 2A0069F
Three-Phase AC 400 V 4A00018F to 4A0038F
C
B
A
D
E
H
I
P
K
M
N
L
F
G
J
O
A – Fan cover
B – Cooling fan
C – Mounting Hole
D – Case and Heatsink
E – Optional 24 VDC power supply
connection cover
F – Cover screws
G – Rubber bushing
H – Bottom cover
I – Front cover screws
J – Terminal cover
K – Terminal board Refer to Control
Circuit Terminal Block Functions
on page 63
L – Front cover
M – Comm port
N – LED operator Refer to Using the
Digital LED Operator on page
78
O – Case
P – Top cover

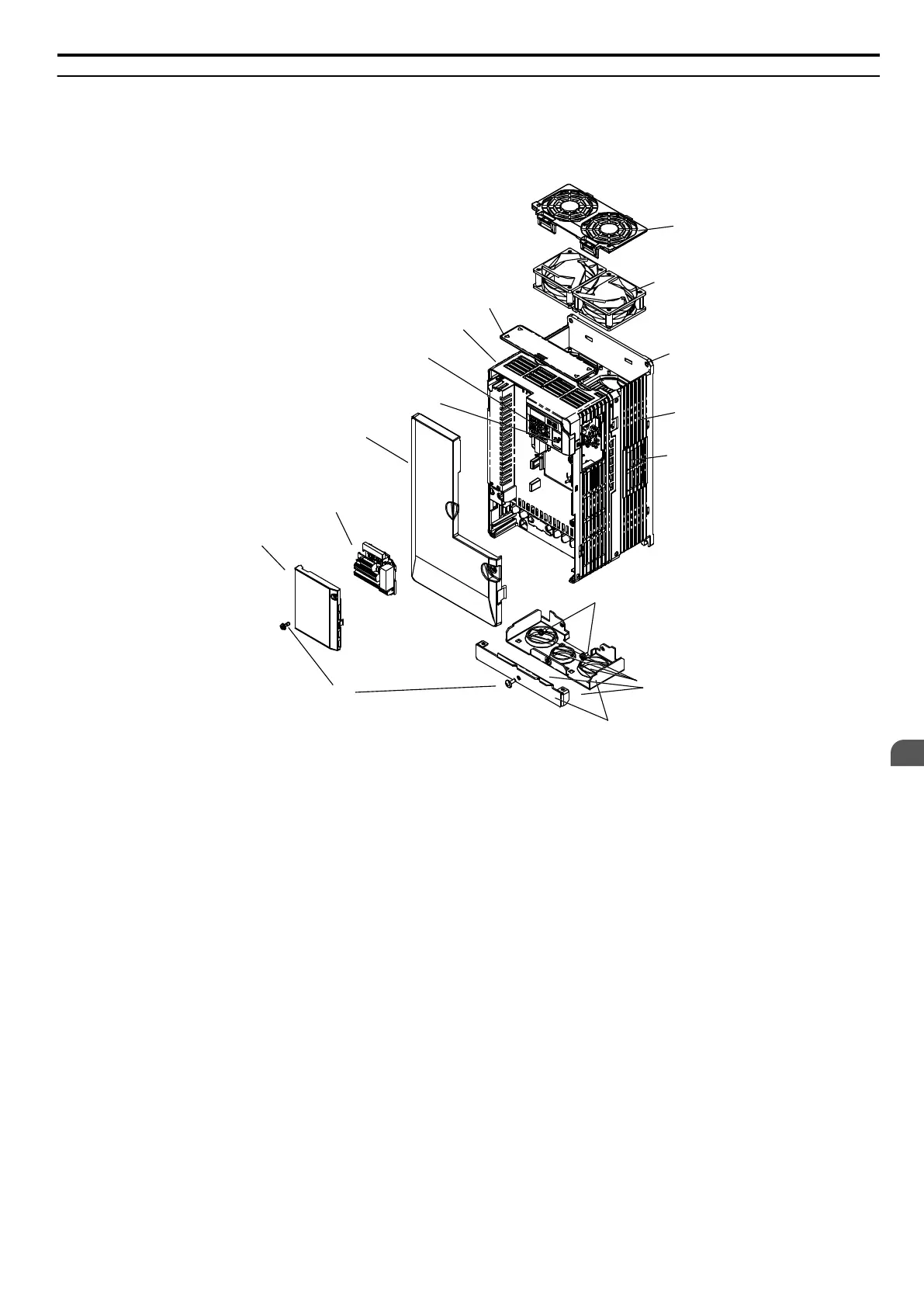

Figure 1.5 Exploded View of IP20/NEMA Type 1 Components (Model 4A0018F)
1.4 Component Names
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
33
1
Receiving

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
