YASKAWA V1000 Technical Manual

n
Installing the Cooling Fan
NOTICE: Prevent Equipment Damage. Follow cooling fan replacement instructions. Improper cooling fan replacement could result in
damage to equipment. When installing the replacement cooling fan into the drive, make sure the fan is facing upwards. To ensure
maximum useful product life, replace all cooling fans when performing maintenance.
1.

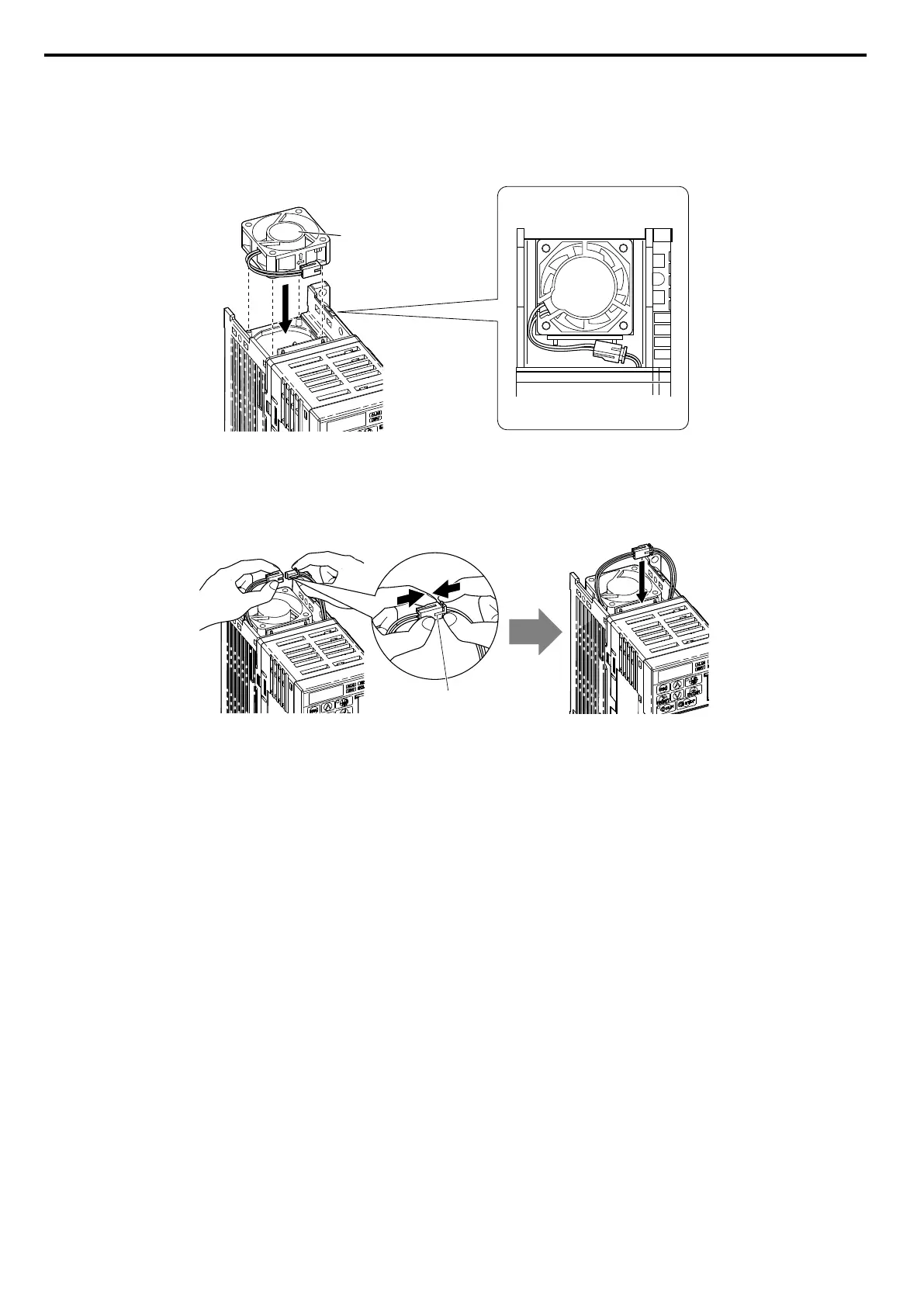

Install the replacement cooling fan into the drive,
ensuring the alignment pins line up, as shown in the figure below:
A
B
C
A – Label facing up
B – Back
C – Front
Figure 7.3 Cooling Fan Orientation
2.
Ensure the connectors are properly connected and place the cable back into the recess of the drive.
A
A –Push the connectors together so no space remains between them.
Figure 7.4 Connectors
Note: Ensure that the left and right tabs are locked back into place.
3.
Align the left and right cover tabs to install the fan cover back on the top of the drive.
7.4 Drive Cooling Fans
298
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
