3. Cabling
3-104
TI 33J01J10-01EN
F030804.ai
Shunt resistor module
(A1080RZ)
Ring terminal
Terminal C
Terminal B
Ring terminal
Cable connecting to terminal B
Cable connecting to terminal C
A B C

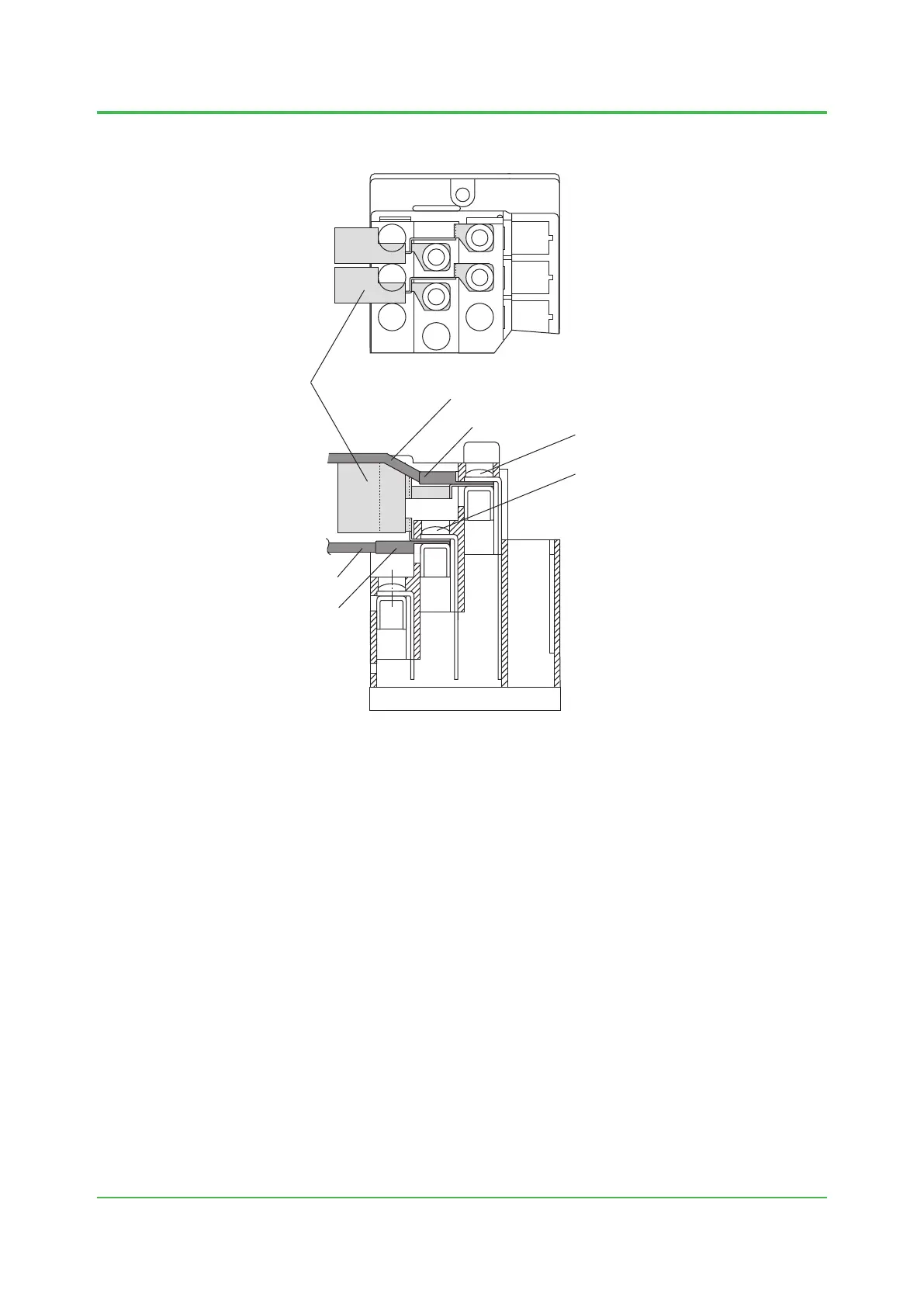

Figure Installing the shunt resistor module
2. Loosen the M4 screws of terminals B and C.
3. Insert the ring of the ring terminal of the cable that connects to terminal B into the gap.
oriented to the terminal block side.
terminals B and C.
The screw goes into the screw hole of the ring terminal and is secured temporarily.
5. Insert the ring of the ring terminal of the cable that connects to terminal C into the gap.
oriented in the opposite orientation of the shunt resistor module.
6. Tighten the M4 screws on terminals B and C.
