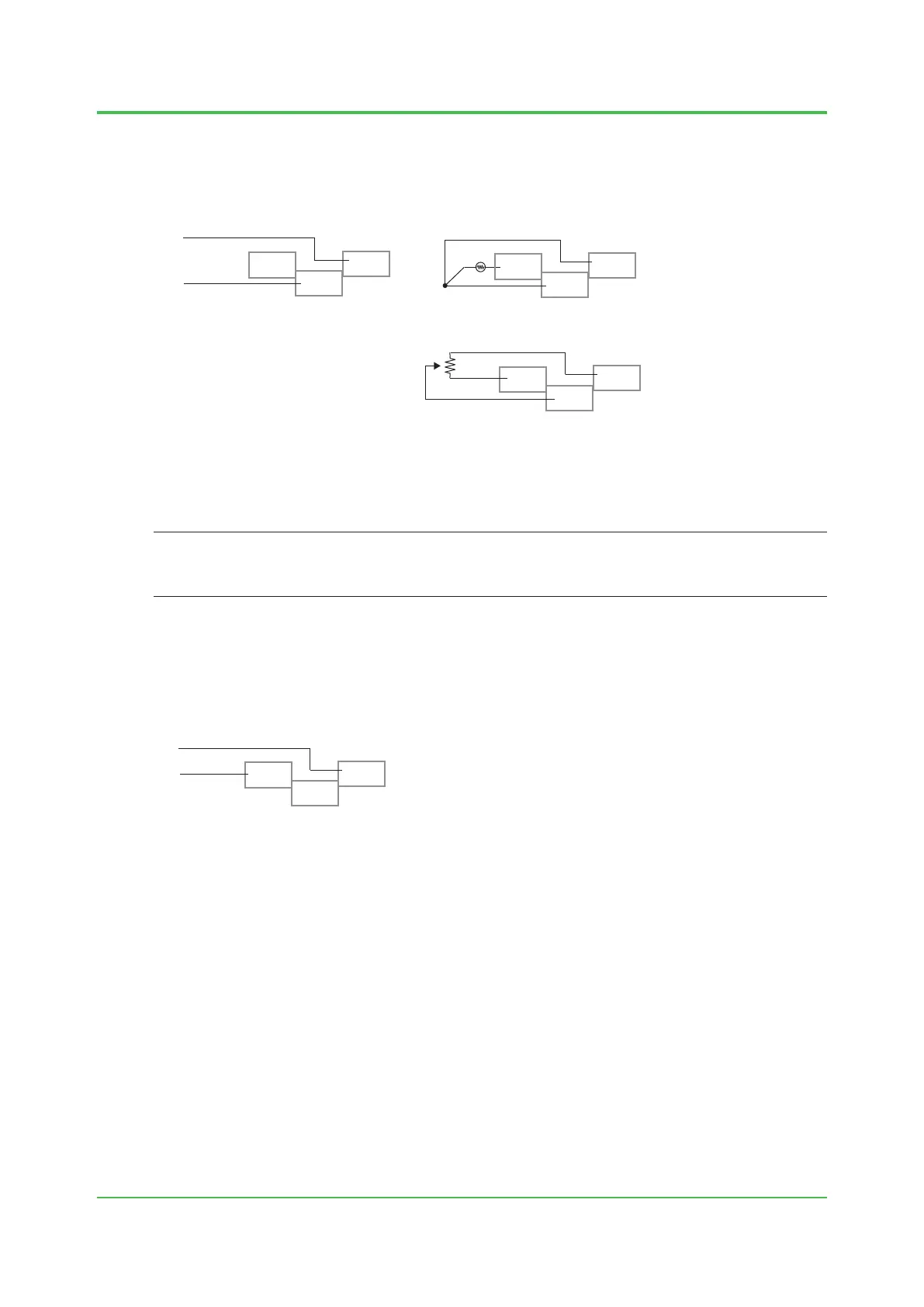

n A2SAT105 mV/TC/RTD input adaptor

A2SAT105).
When connecting a TC input or mV input
A
B
C
When connecting an RTD input
A
B
C
＋
－
A
B
C
When connecting a potentiometer input
0%
100%
F030821.ai
: 1 to 16
Figure When using the mV/TC/RTD input adaptor

S9393UK) on the terminal block.
SEE
ALSO

the standards they must conform to, refer to:

n A2SAM505 Current output/voltage output adaptor

(Model: A2SAM505).
A
B
C
＋
－
F030819.ai
: 1 to 16
Figure When using the current output/voltage output adaptor
