104

Printer Configuration Menus

PRIMARY NETWORK

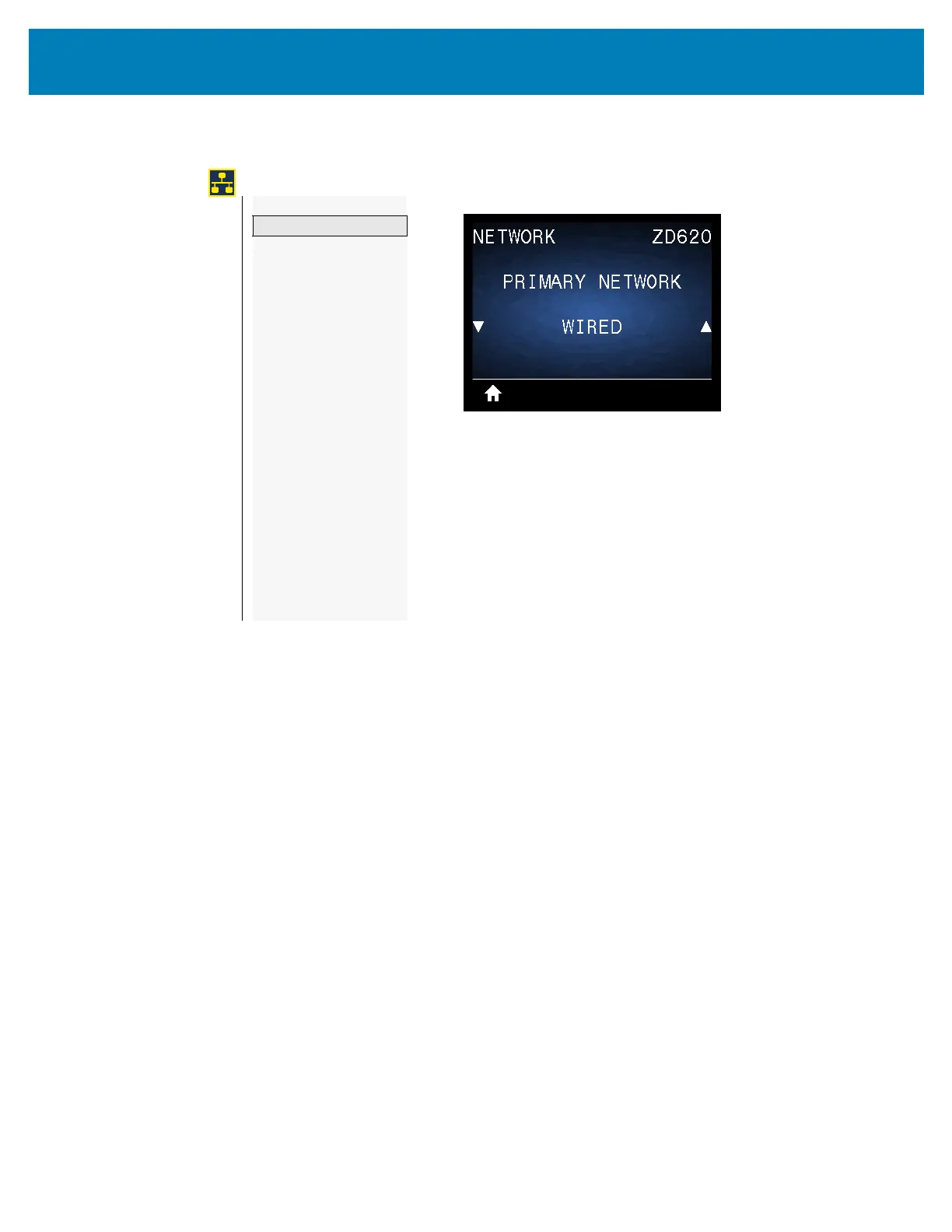

Description: View or modify whether the WIRED or WIRELESS print server is considered

primary. You may select which one is primary.

Accepted values:

WIRED or WIRELESS

SGD command used: ip.primary_network

NETWORK

—

ACTIVE PRINT SERVER

—

PRIMARY NETWORK

—

WIRED IP ADDRESS

—

WIRED SUBNET MASK

—

WIRED GATEWAY

—

WIRED IP PROTOCOL

—

WIRED MAC ADDRESS

—

WLAN IP ADDRESS

—

WLAN SUBNET MASK

—

WLAN GATEWAY

—

WLAN IP PROTOCOL

—

WLAN MAC ADDRESS

—

ESSID

—

CHANNEL

—

SIGNAL

—

IP PORT

—

IP ALTERNATE PORT

—

PRINT INFORMATION

—

RESET NETWORK

—

VISIBILITY AGENT

—

LOAD DEFAULTS
