Zebra ZD620 - WLAN SUBNET MASK

To Next Page

To Previous Page

111

Printer Configuration Menus

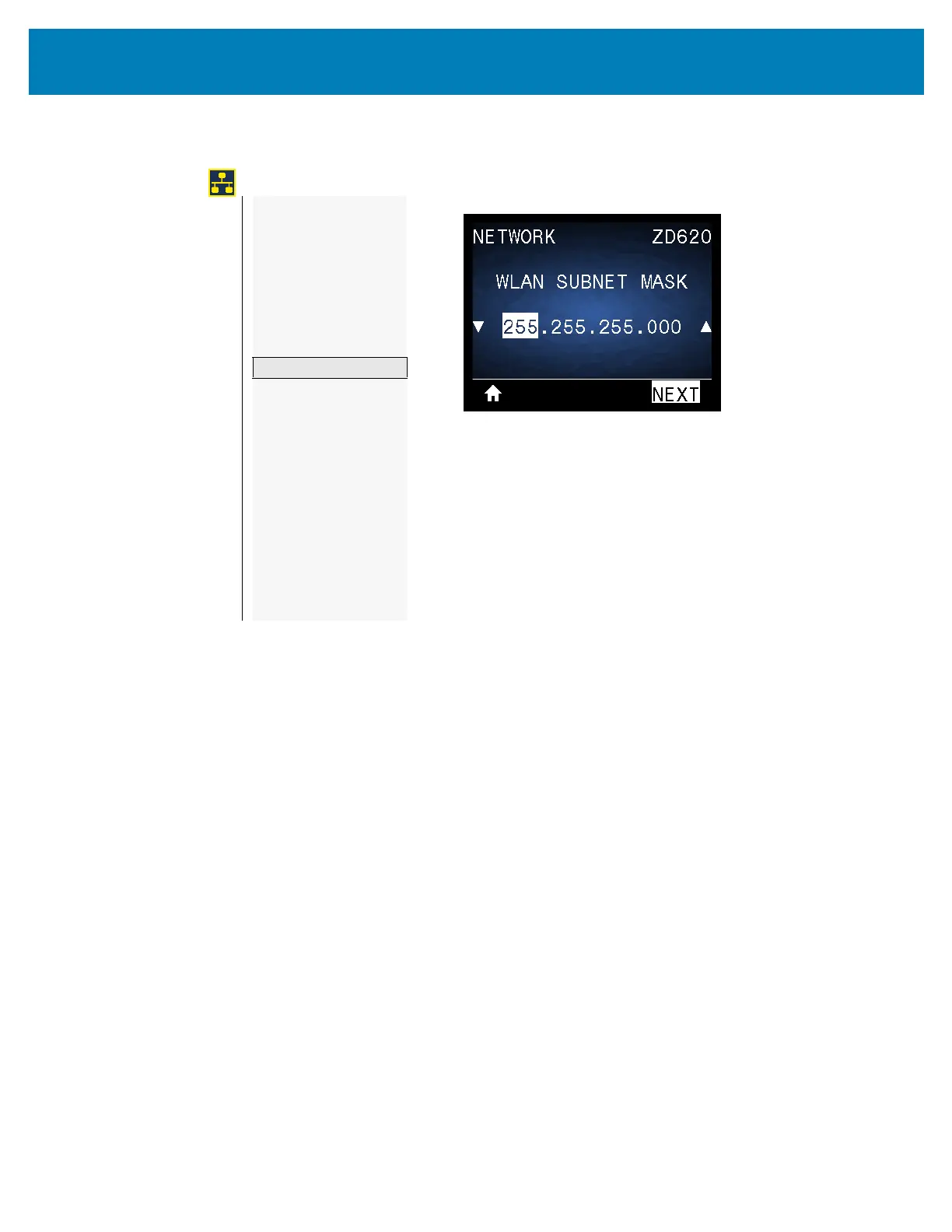

WLAN SUBNET MASK

Description: View and, if necessary, change the Wireless subnet mask.

To save changes to this setting, set WLAN IP PROTOCOL to

PERMANENT, and then reset

the print server (see RESET NETWORK).

Accepted values: 000 to 255 for each field

Related ZPL command(s): ^ND

SGD command used: wlan.ip.netmask

Printer Web page: View and Modify Printer Settings > Network Communications Setup >

Wireless Settings
