Interface Connector Wiring
Serial Port Interface
Zebra Auto-Detecting DTE and DCE for 9-Pin RS-232 Interface
Important • The maximum current available through the serial port, USB port or both will not
exceed a total of 0.75 Amps.
When XON/XOFF handshaking is selected in the printer driver, data flow is controlled by
the ASCII control codes DC1 (XON) and DC3 (XOFF). The DTR control lead will have no
effect.

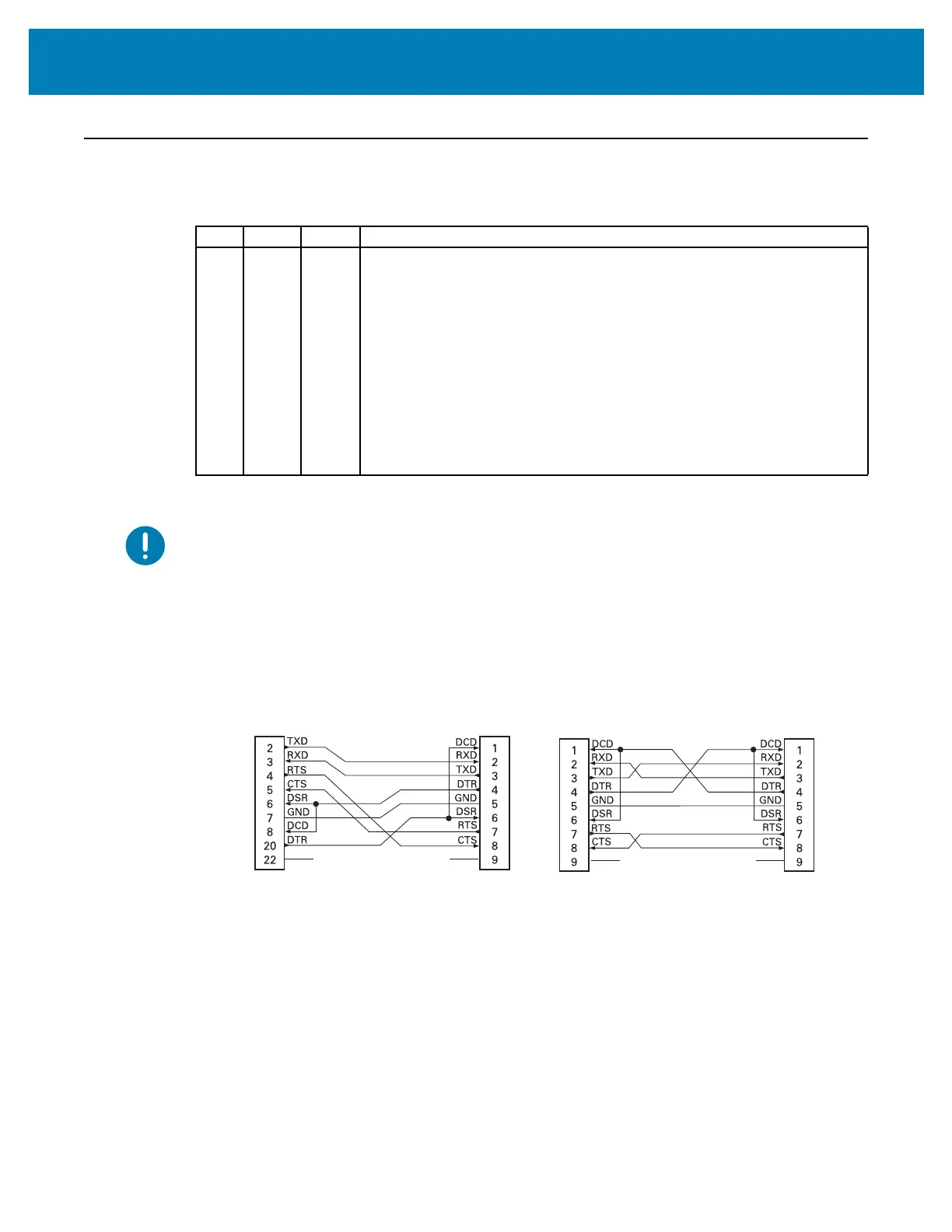

Connecting the Printer to a DTE Device
Interconnecting to DTE Devices — The printer is configured as data terminal equipment
(DTE). To connect the printer to other DTE devices (such as the serial port of a personal
computer), use an RS-232 null modem (crossover) cable.
Pin DTE DCE Description (DTE)
1— 5V
Not used
2RXDTXD
RXD (receive data) input to the printer
3TXDRXD
TXD (transmit data) output from the printer
4DTRDSR
DTR (data terminal ready) output from the printer -- controls when the
host may send data
5GNDGND
Circuit ground
6DSRDTR
DSR (data set ready) input to the printer
7RTSCTS
RTS (request to send) output from the printer -- always in the
ACTIVE condition when the printer is turned on
8CTSRTS
CTS (clear to send) - Not used by the printer
95V—
+5 V @ 0.75 A - FET Circuit current limited
DB-25S
Connector
to DTE Device (PC)
DB-9P
Connector
to Printer
DB-9P
Connector
to Printer
DB-9S
Connector
to DTE Device (PC)
