260

Maintenance

ZD620 and ZD420 Direct Thermal

Removing the Printhead

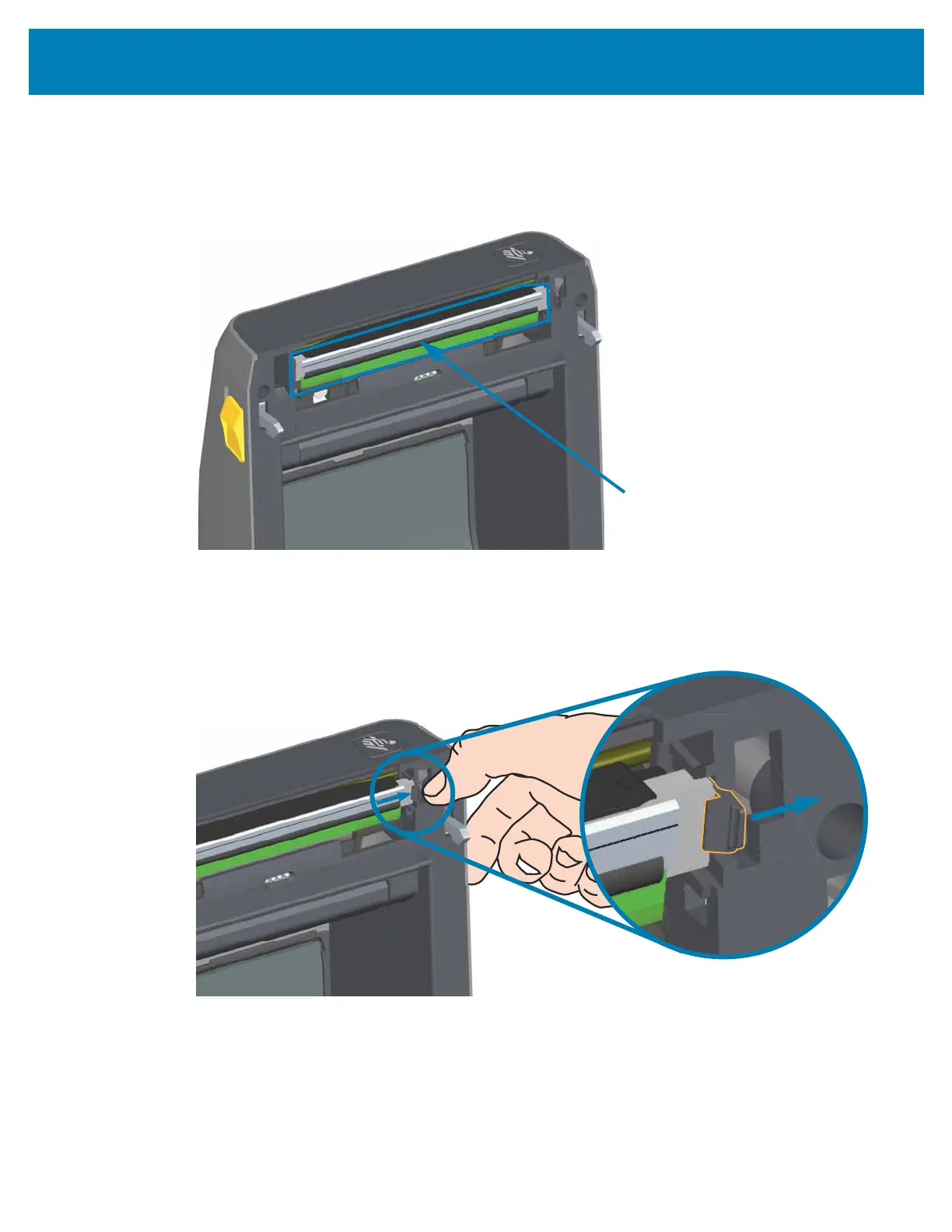

1. Turn the printer OFF. Open the printer.

2. Push the printhead release latch away from the printhead. The right side of printhead

releases.

Printhead
