344

ZPL Configuration

Configuration Setting to Command Cross-reference

The Printer Configuration Report, shown below, provides a listing of a majority of the

configurations settings that can be set by ZPL command.

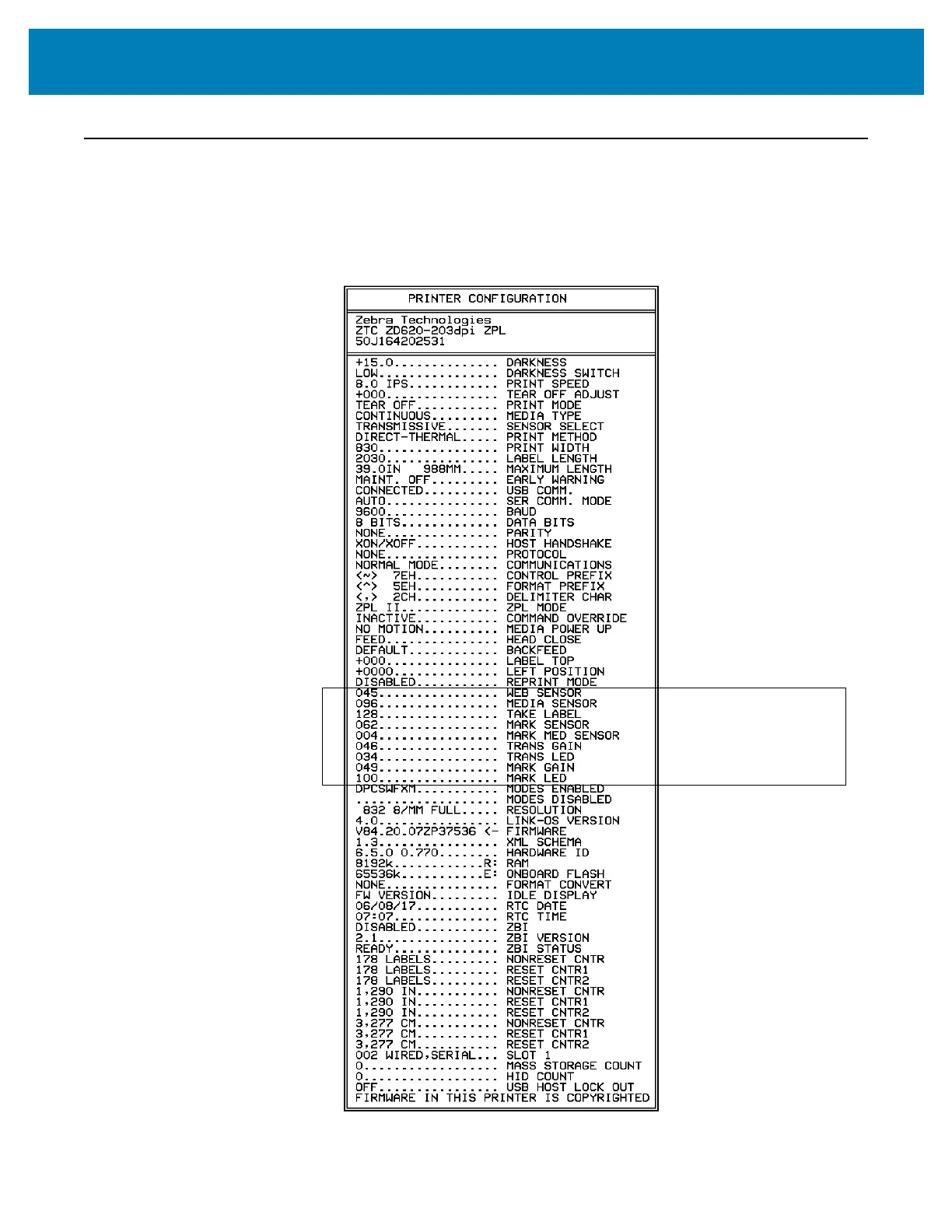

Figure 2 • Configuration Report Printout

Sensor Settings

used for

Service Purposes
