124

Printer Configuration Menus

COMMAND LANGUAGE

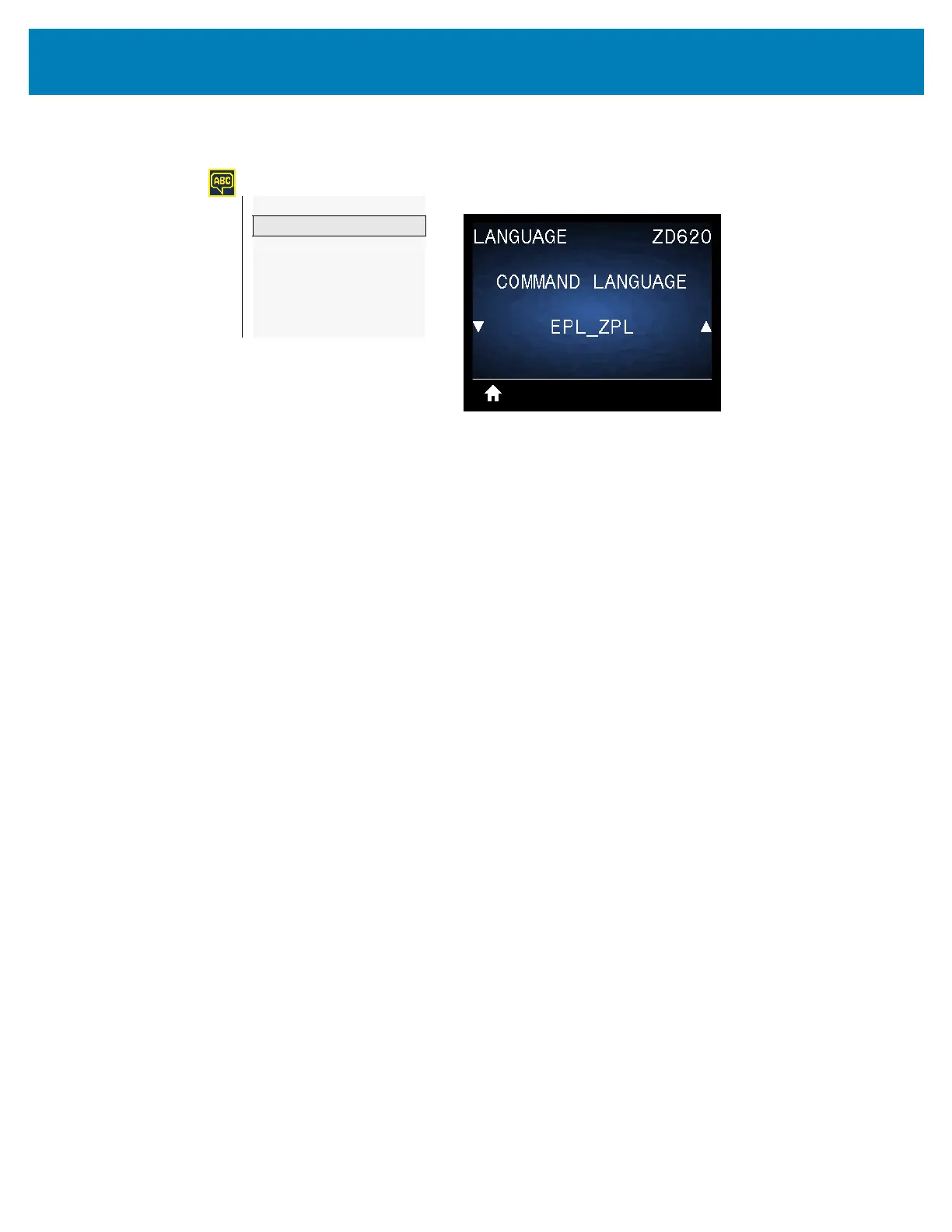

Description: The setting allows you to control the primary programming language

variations available, such as, EPL_ZPL, EPL (legacy language), and Hybrid_XML_ZPL

(used for format/form variable fill-in with XML structured elements).

Acceptable values:

• EPL_ZPL(EZPL)

• Hybrid_XML_ZPL

•EPL

LANGUAGE

—

LANGUAGE

—

COMMAND LANGUAGE

—

COMMAND CHAR

—

CONTROL CHAR

—

DELIMITER CHAR

—

ZPL MODE

—
