Zebra ZD620 User Manual

167
Setup
Loading the ZD420 Ribbon Cartridge
The printer uses a transfer ribbon cartridge for thermal transfer printing. Just slide the
cartridge into the ribbon transport and close the printer. The printer reads cartridge
information stored on the cartridge.

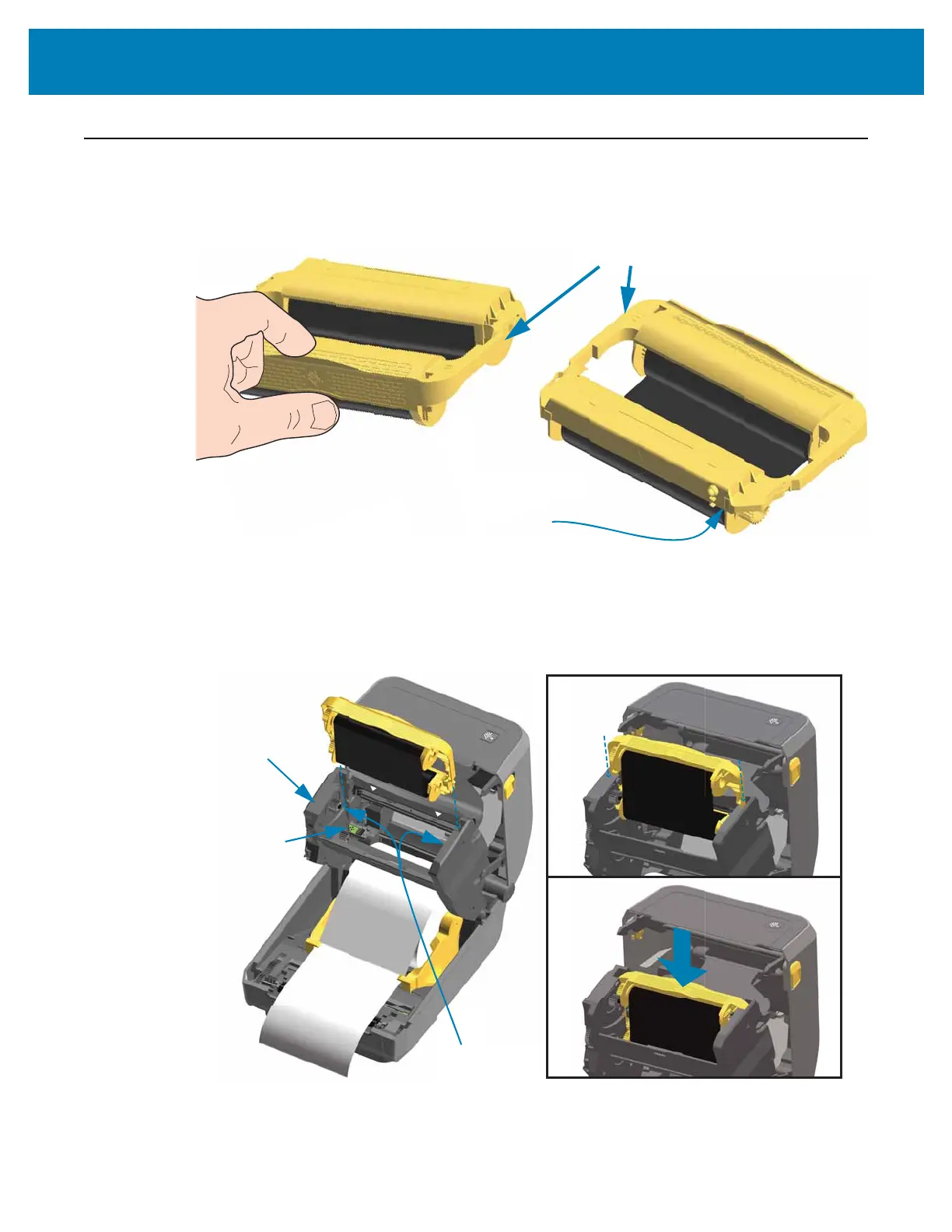

1. Insert the ribbon cartridge into the ribbon cartridge slot on the ribbon transport in your
open printer. Push until the cartridge is nearly flush to the front of the ribbon transport.
You will hear and feel the cartridge lock into place. Only Genuine Zebra Ribbon
Cartridges are supported.
Cartridge Information Smart Chip
Hold the Ribbon
Cartridge Here
Cartridge Guide Rails
I
n
s
e
r
t
t
h
i
s
E
n
d
I
n
s
e
r
t
t
h
i
s
E
n
d
Front of
Ribbon
Transport
Smart Chip
Reader
Cartridge
Guides

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
