Troubleshooting

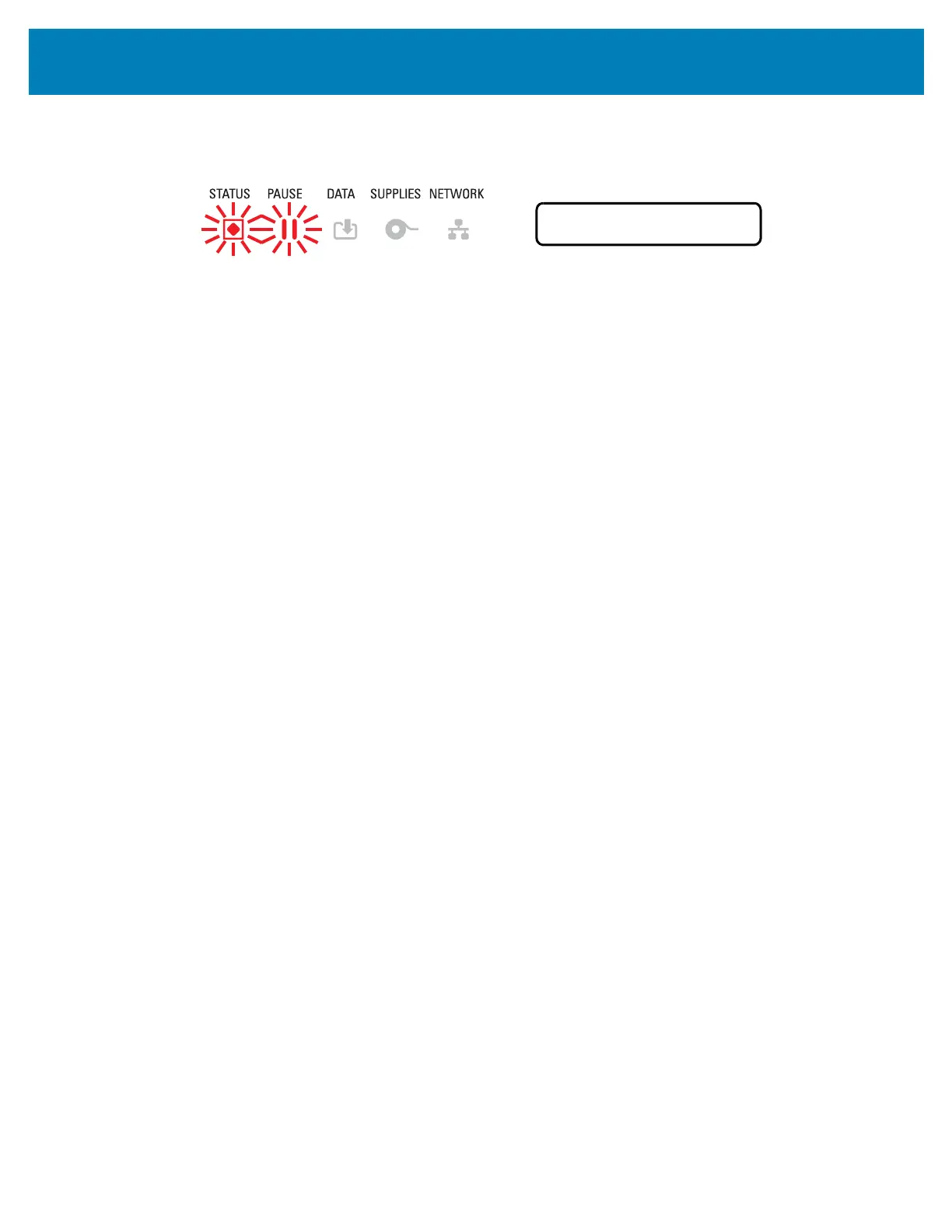

Alert: PRINTHEAD SHUTDOWN

1. The printhead is below operating temperature for proper printing.

Possible Cause - 1

Printhead has had a critical temperature or power failure

Resolution

1 — Turn the printer off by holding the power using the POWER button down for 5

seconds. Wait for thee printer to shutdown completely. Turn the printer on.

2 — If the printer does not recover from this error, call a service technician. This is not a

operator serviceable item.

PRINTHEAD SHUTDOWN

PRINTING HALTED
