262

Maintenance

Replacing the Printhead

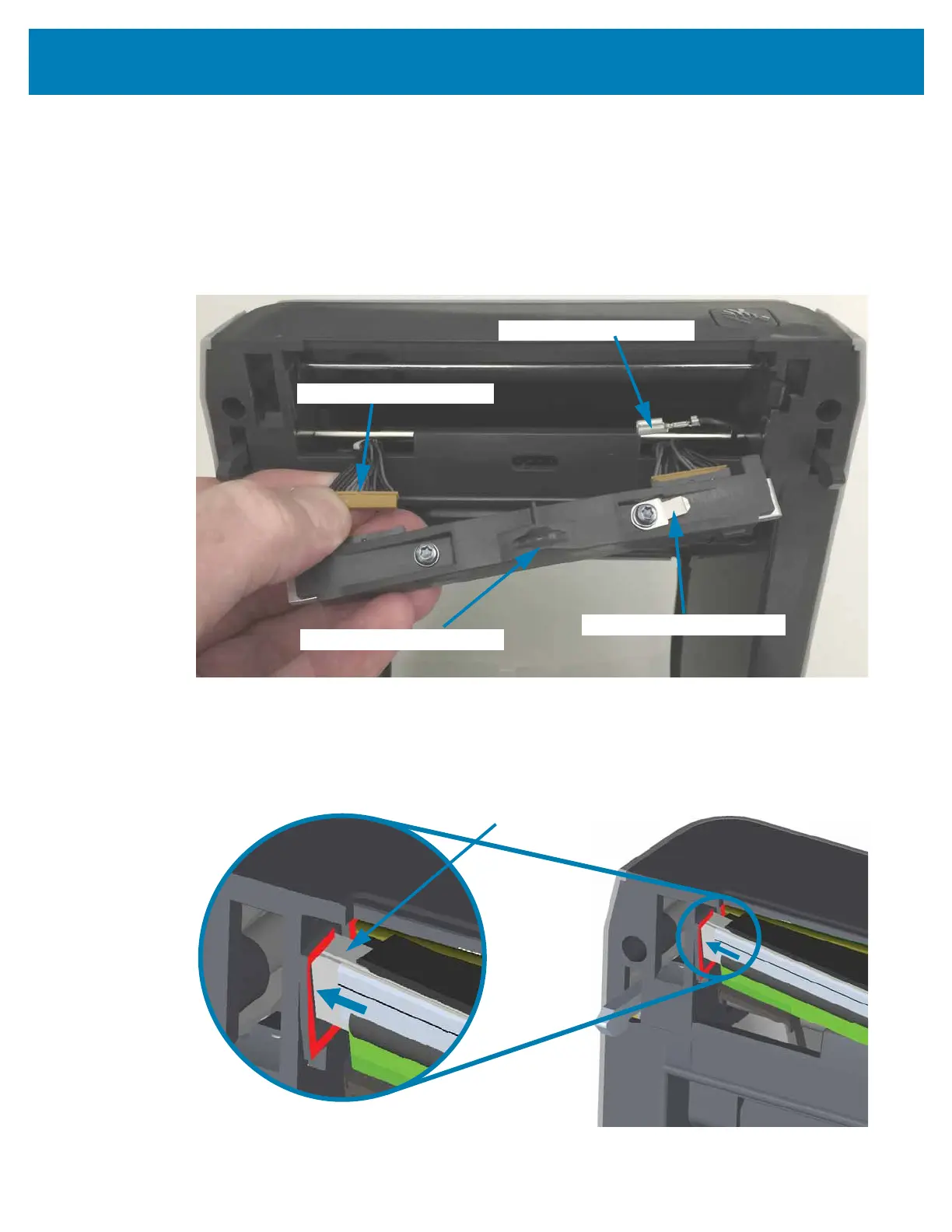

1. Push the right side printhead cable connector into the printhead. The connector is

keyed to only insert one way.

2. Attach the ground wire to the printhead’s ground tab.

3. Push the left side printhead cable connector onto the printhead.

4. Insert the left side of the printhead assembly into the recessed slot (highlighted in red)

on the left side of the printer.

Printhead Ground Wire

Printhead Ground Tab

Connector with Key

Spring Wire Notch

Tab

Slot
