133

Printer Configuration Menus

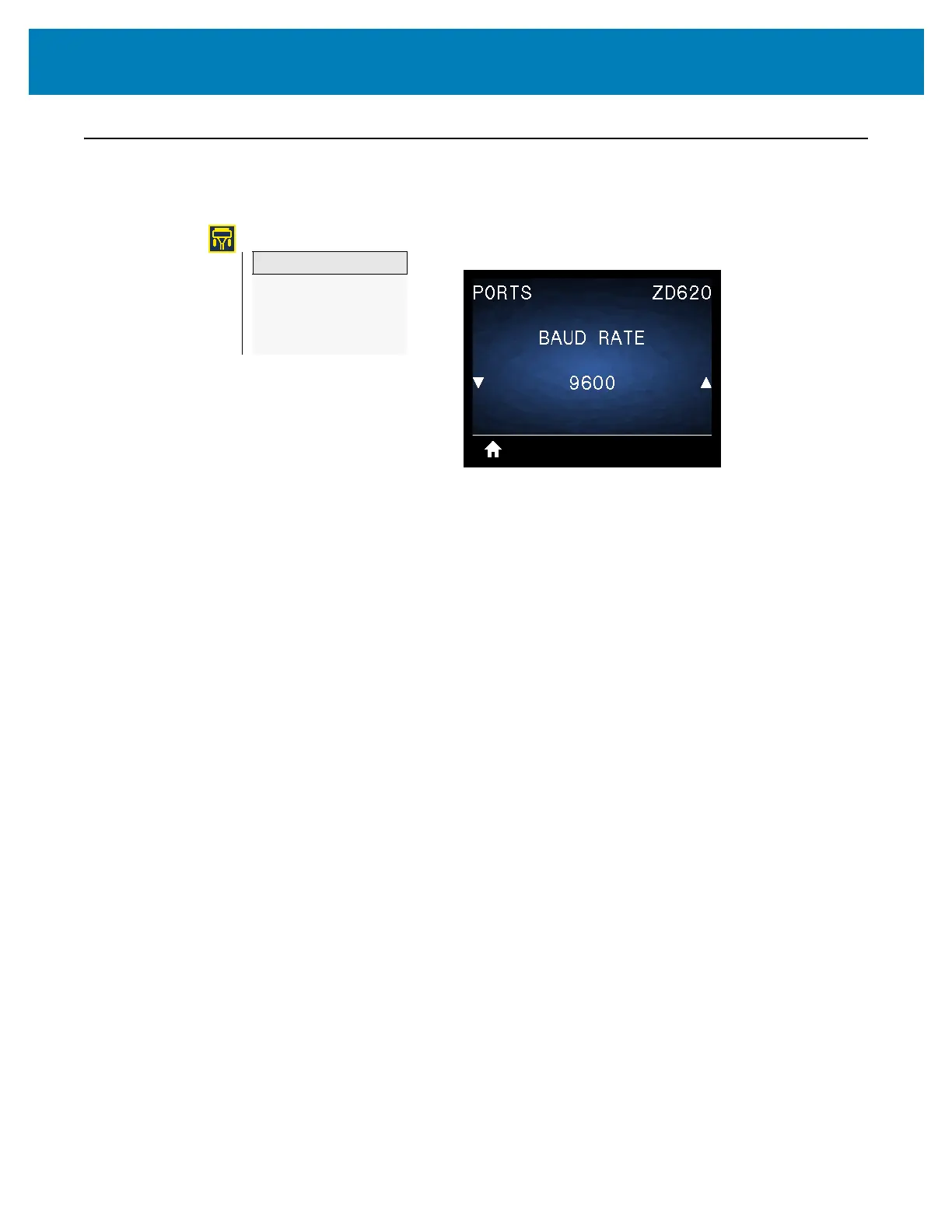

PORTS

BAUD RATE

Description: Select the baud value that matches the one being used by the host

computer.

Acceptable values: 115200,57600,38400,28800,19200,14400,9600,4800

Related ZPL command(s): ^SC

SGD command used: comm.baud

Print Server web page: View and Modify Printer Settings >

Serial Communications Setup

PORTS

—

BAUD RATE

—

DATA BITS

—

PARITY

—

HOST HANDSHAKE

—
