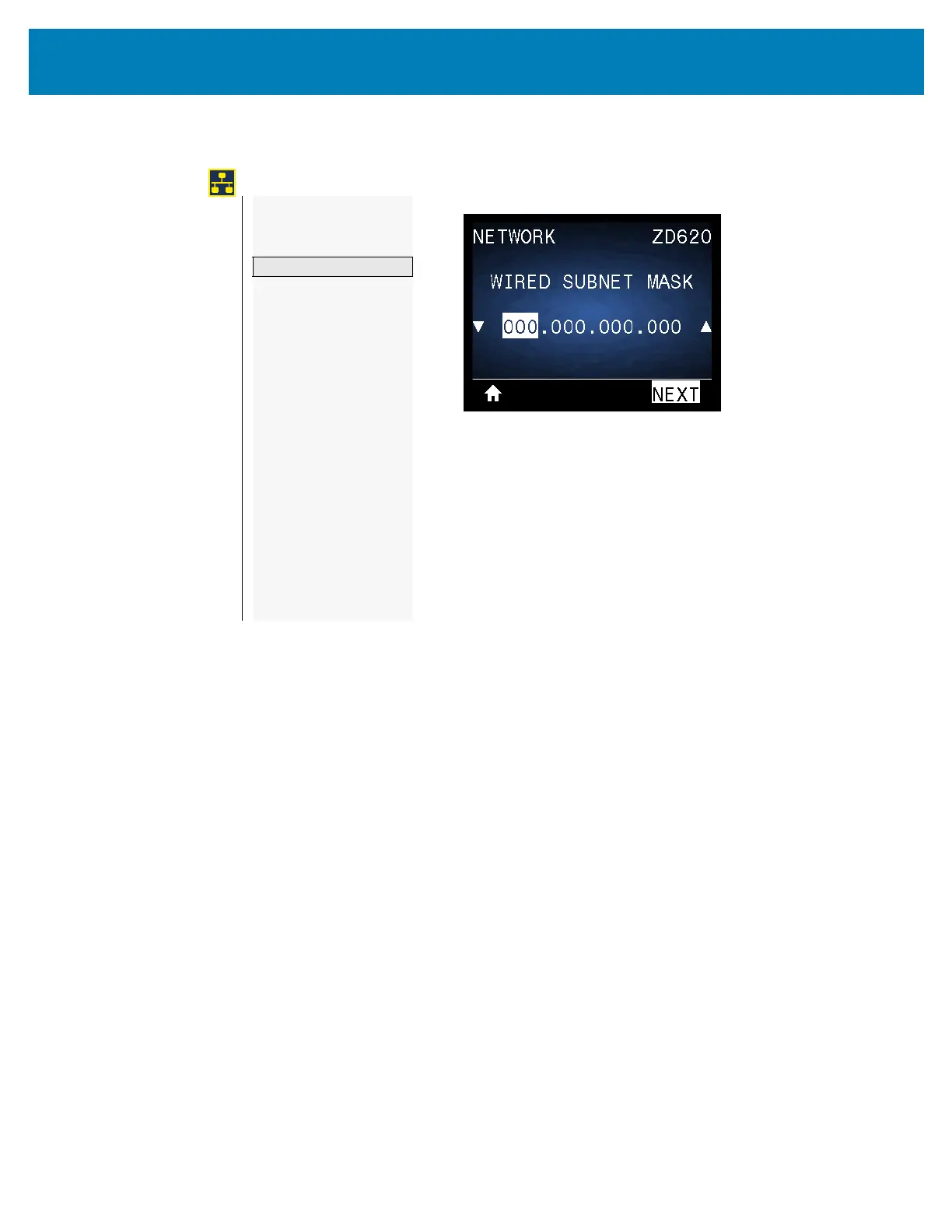

WIRED SUBNET MASK

Description: View and, if necessary, change the wired subnet mask.

To save changes to this setting, set WIRED IP PROTOCOL to PERMANENT, and then

reset the print server (see RESET NETWORK).

Accepted values: 000 to 255 for each field

Related ZPL command(s): ^ND

SGD command used: internal_wired.ip.netmask

Printer Web page: ViewandModifyPrinterSettings>Network Communications

Setup>TCP/IP Settings
