267

Maintenance

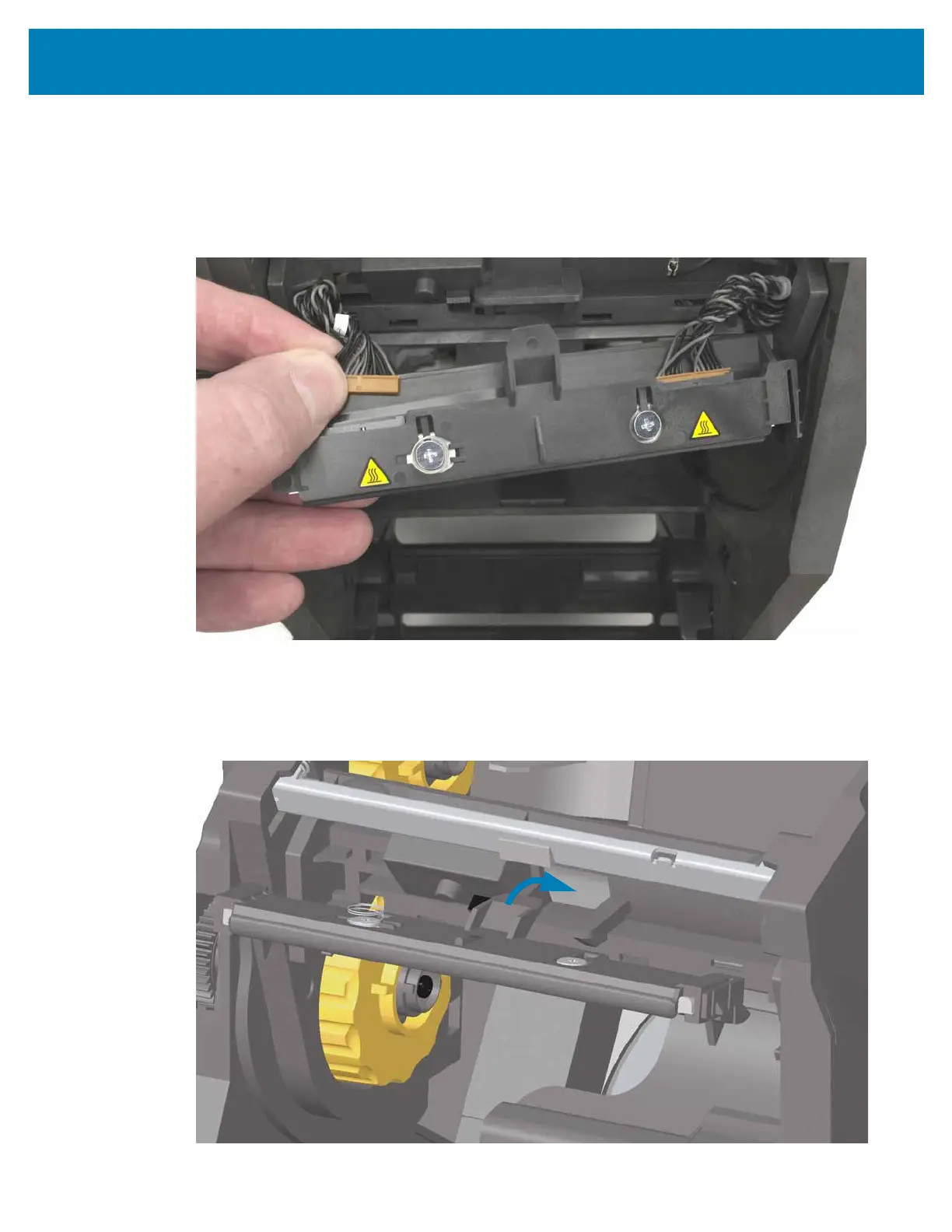

Replacing the Printhead

1. Push the right side printhead cable connector into the printhead. The connector is

keyed to only insert one way.

2. Push the left side printhead cable connector onto the printhead.

3. Insert the center tab on the printhead assembly into the center slot on the Printhead

Actuator Arm.
