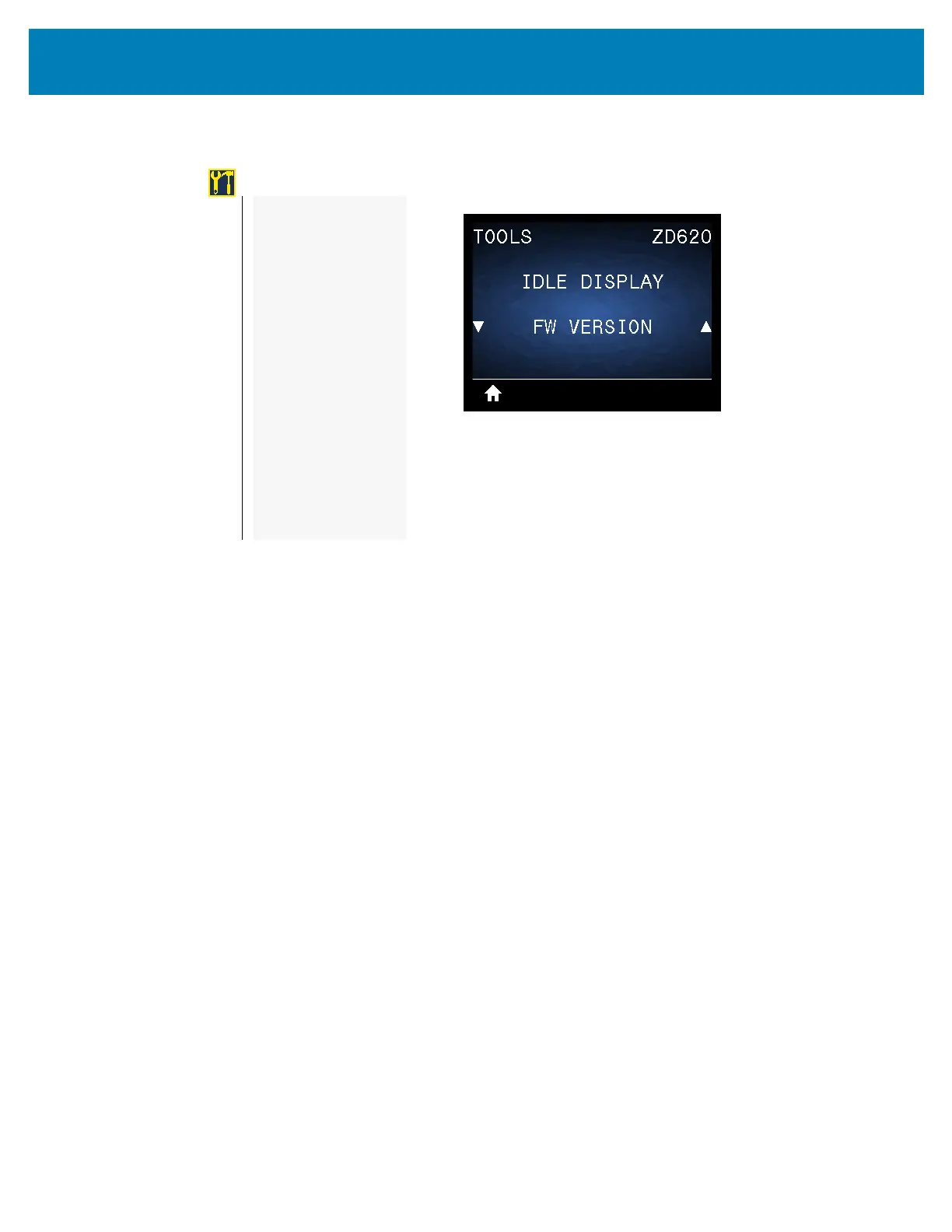

IDLE DISPLAY

Description: Select one of six information formats to display when the printer is idle.

Accepted values: FW VERSION, IP ADDRESS, MM/DD/YY 24 HR, MM/DD/YY 12 HR,

DD/MM/YY24HR, DD/MM/YY12HR

Related ZPL command(s): NotApplicable

SGD command used:

• device.idle_display_format

• device.idle_display_value

Print Server web page: NotApplicable
