Zebra ZD620 - Connecting the Printer to a DCE Device

To Next Page

To Previous Page

314

Interface Connector Wiring

Connecting the Printer to a DCE Device

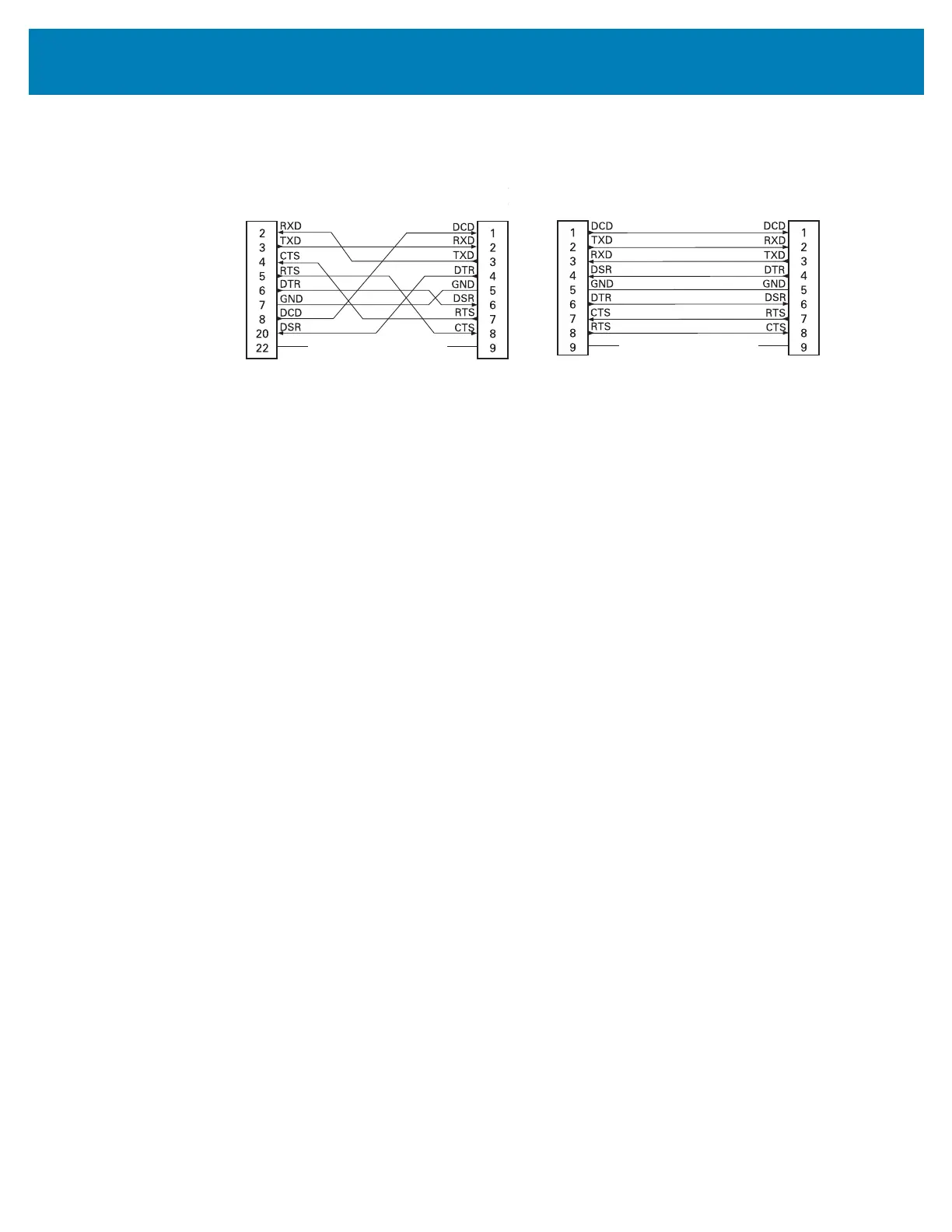

Interconnecting to DCE Devices — When the printer is connected via its RS-232

interface to data communication equipment (DCE) such as a modem, a STANDARD

RS-232 (straight-through) interface cable must be used.

DB-9P

Connector

to Printer

DB-9P

Connector

to Printer

DB-25S

Connector

to DCE Device

DB-9S

Connector

to DCE Device
