Setup

USB Interface

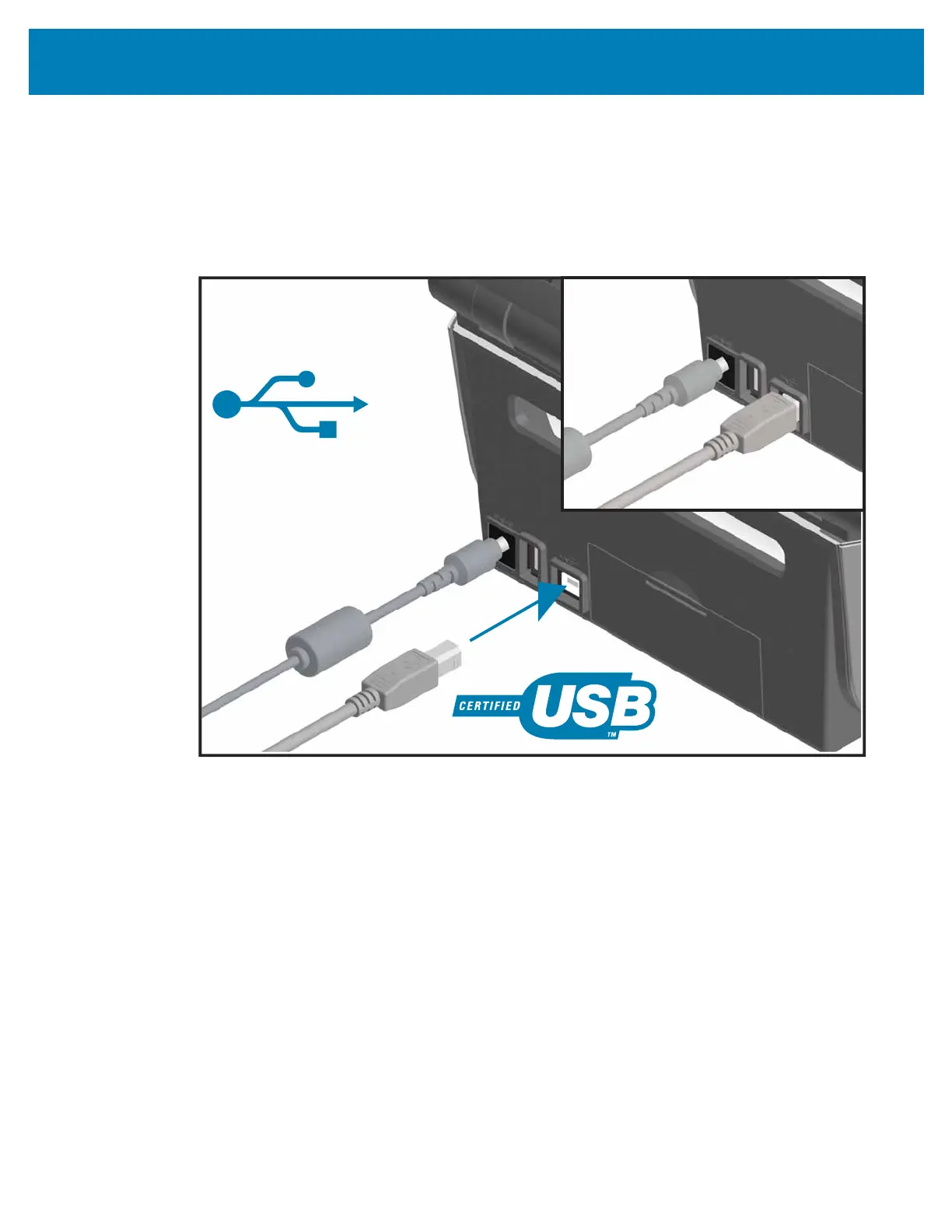

Universal Serial Bus (version 2.0 compliant) provides a fast interface that is compatible

with your existing PC hardware. USB’s “plug and play” design makes installation easy.

Multiple printers can share a single USB port/hub.

When using a USB cable, verify that the cable or cable packaging bears the “Certified

USB ™ ” mark (see below) to guarantee USB 2.0 compliance.
