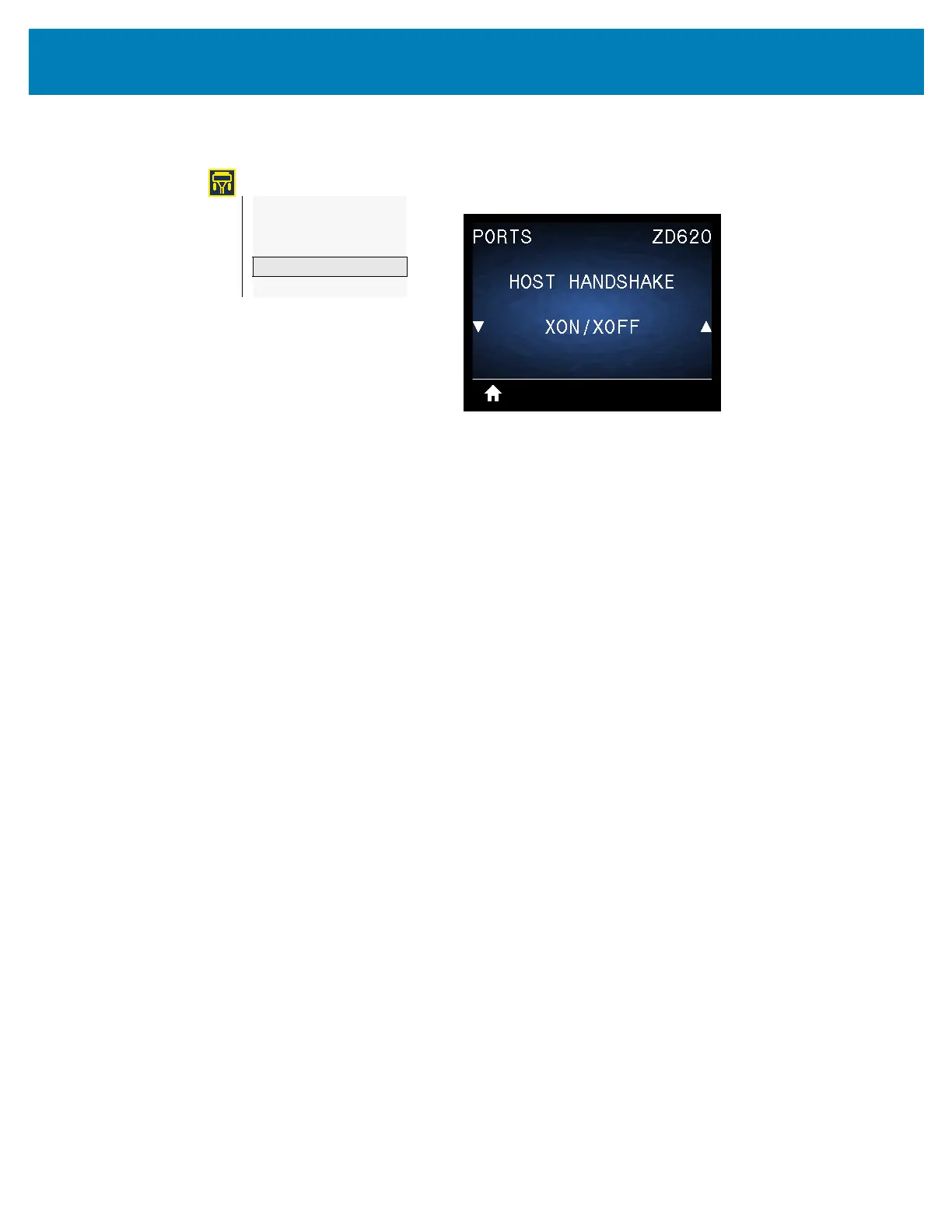

HOST HANDSHAKE

Description: Select the handshake protocol that matches the one being used by the host

computer.

Acceptable values: XON/XOFF,RTS/CTS,DSR/DTR

Related ZPL command(s): ^SC

SGD command used: comm.handshake

Print Server web page: ViewandModifyPrinterSettings>

Serial Communications Setup
