Controls and Indicators

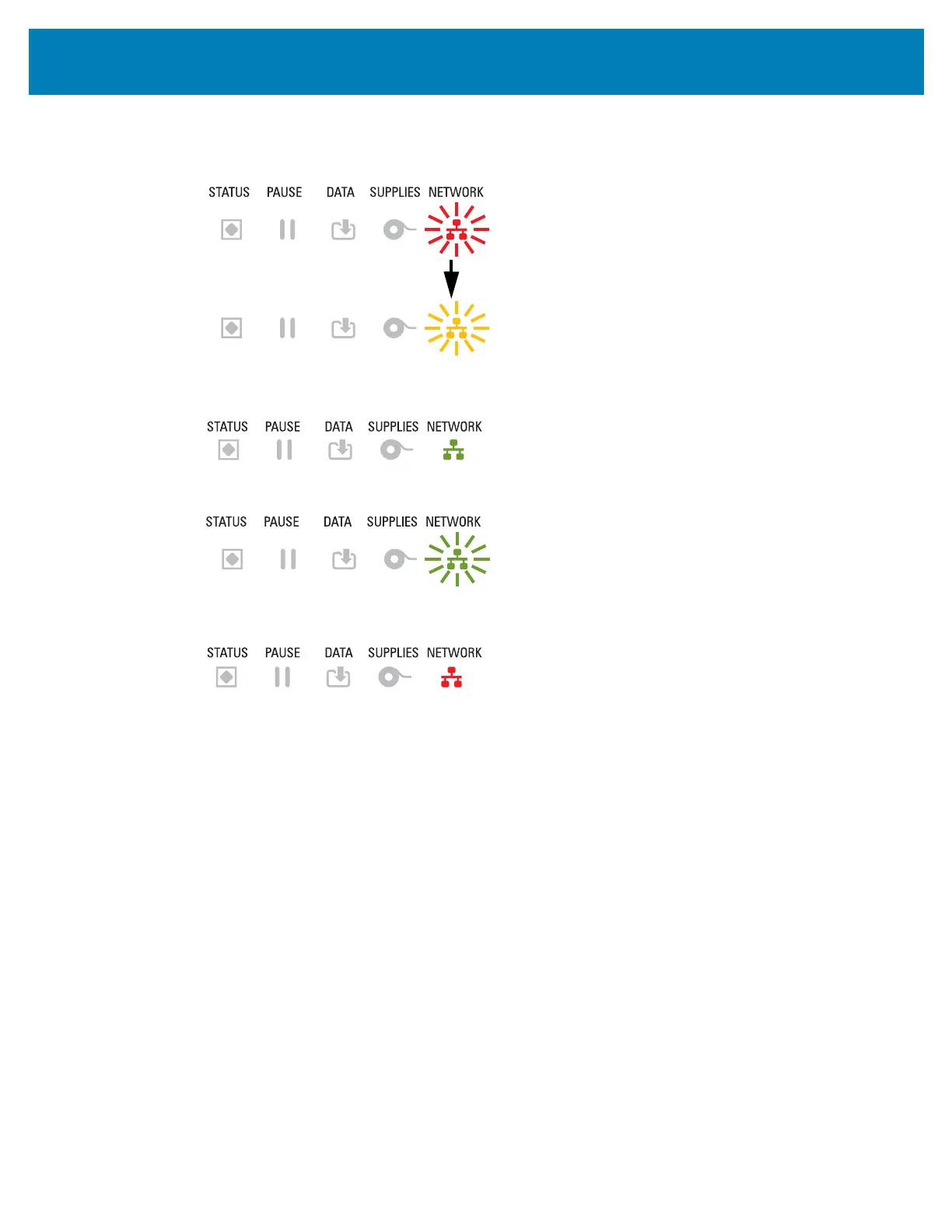

Status - Wi-Fi (WLAN) Option

Wi-Fi

Connecting to WLAN

The light flashes red while the printer associates

with the network.

The light then flashes yellow while the printer is

authenticating with the network.f

Wi-Fi (WLAN) 100base Link

The printer is connected to your network and the

Wi-Fi signal is strong.

Wi-Fi (WLAN) 10base Link

The printer is connected to your network and the

Wi-Fi signal is weak.

Wi-Fi (WLAN) Link Error

An error condition exists. The printer is not

connected to your network.
