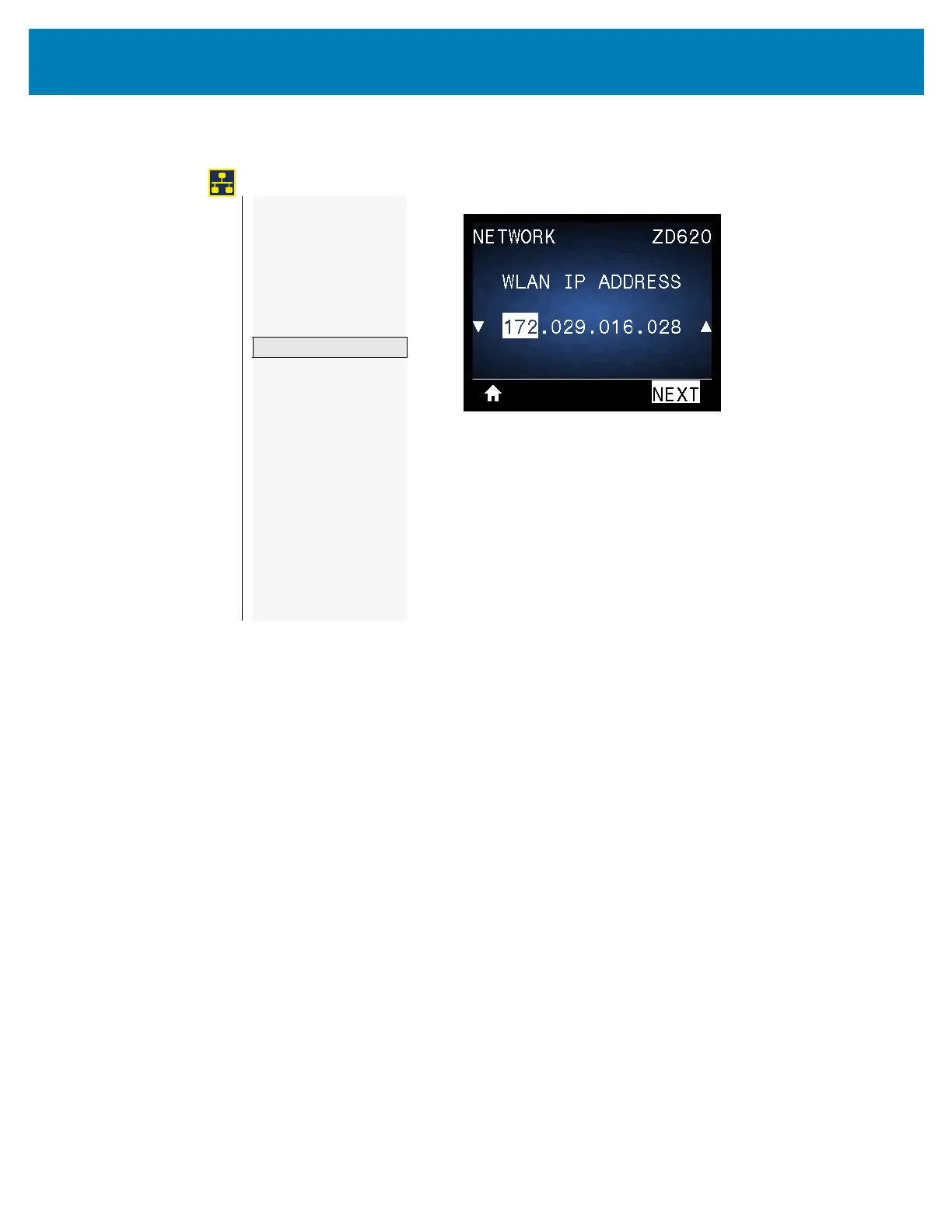

WLAN IP ADDRESS

Description: View and, if necessary, change the printer’s Wireless IP address.

To save changes to this setting, set WLAN IP PROTOCOL to PERMANENT, and then

reset the print server (see RESET NETWORK).

Accepted values: 000 to 255 for each field

Related ZPL command(s): ^ND

SGD command used: ip.addr,wlan.ip.addr

Printer Web page: View and Modify Printer Settings > Network Communications Setup >

Wireless Setup

NETWORK

—

ACTIVE PRINT SERVER

—

PRIMARY NETWORK

—

WIRED IP ADDRESS

—

WIRED SUBNET MASK

—

WIRED GATEWAY

—

WIRED IP PROTOCOL

—

WIRED MAC ADDRESS

—

WLAN IP ADDRESS

—

WLAN SUBNET MASK

—

WLAN GATEWAY

—

WLAN IP PROTOCOL

—

WLAN MAC ADDRESS

—

ESSID

—

CHANNEL

—

SIGNAL

—

IP PORT

—

IP ALTERNATE PORT

—

PRINT INFORMATION

—

RESET NETWORK

—

VISIBILITY AGENT

—

LOAD DEFAULTS
