130

Printer Configuration Menus

SENSORS

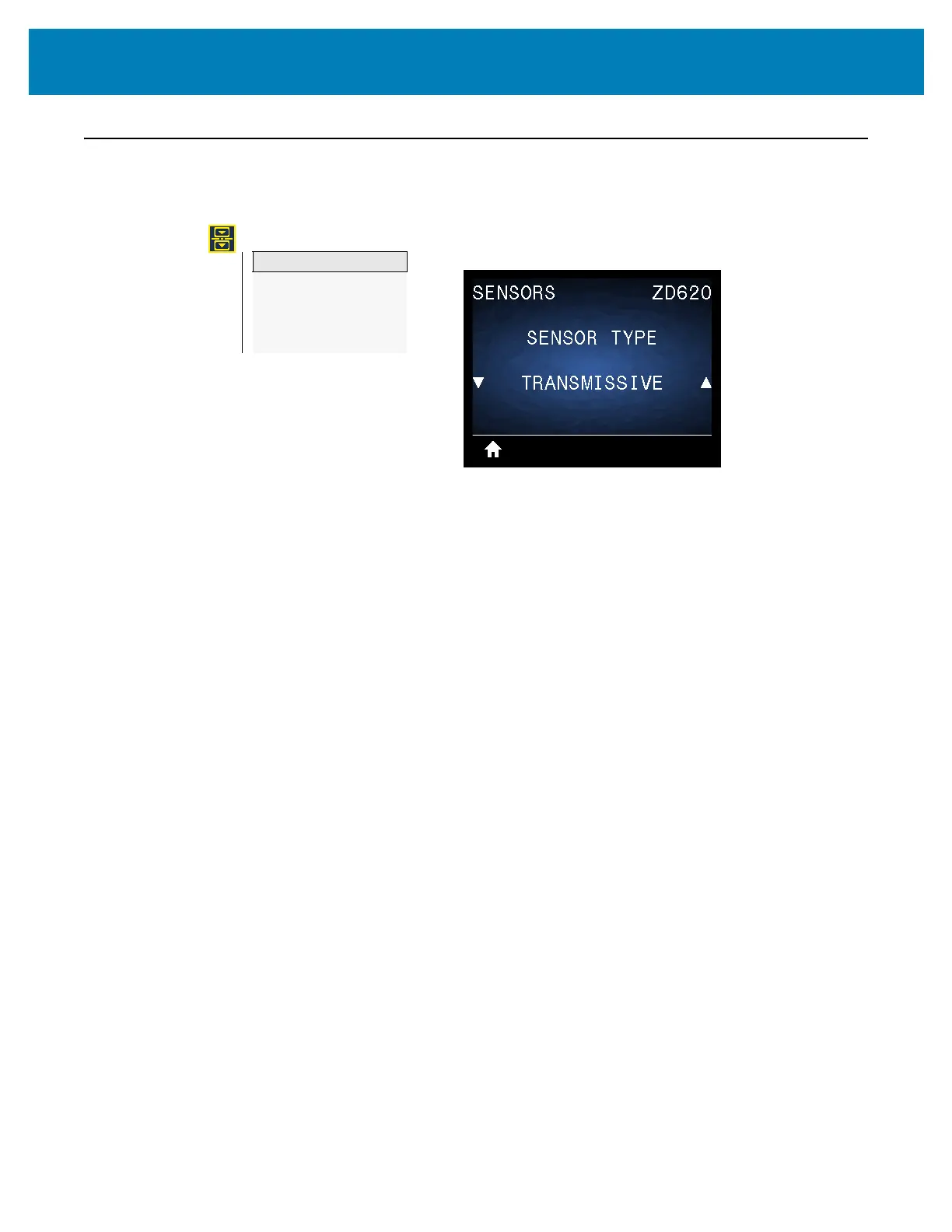

SENSOR TYPE

Description: Select the media sensor that is appropriate for the media that you are using.

The reflective sensor typically is used only for black mark media. The transmissive sensor

typically is used for other media types.

Acceptable values: TRANSMISSIVE or REFLECTIVE

Related ZPL command(s): ^JS

SGD command used: device.sensor_select

Print Server web page: View and Modify Printer Settings > Media Setup

SENSORS

—

SENSOR TYPE

—

MEDIA/RIBBON CAL

—

PRINT INFORMATION

—

LABEL SENSOR

—

TAKE LABEL
