266

Maintenance

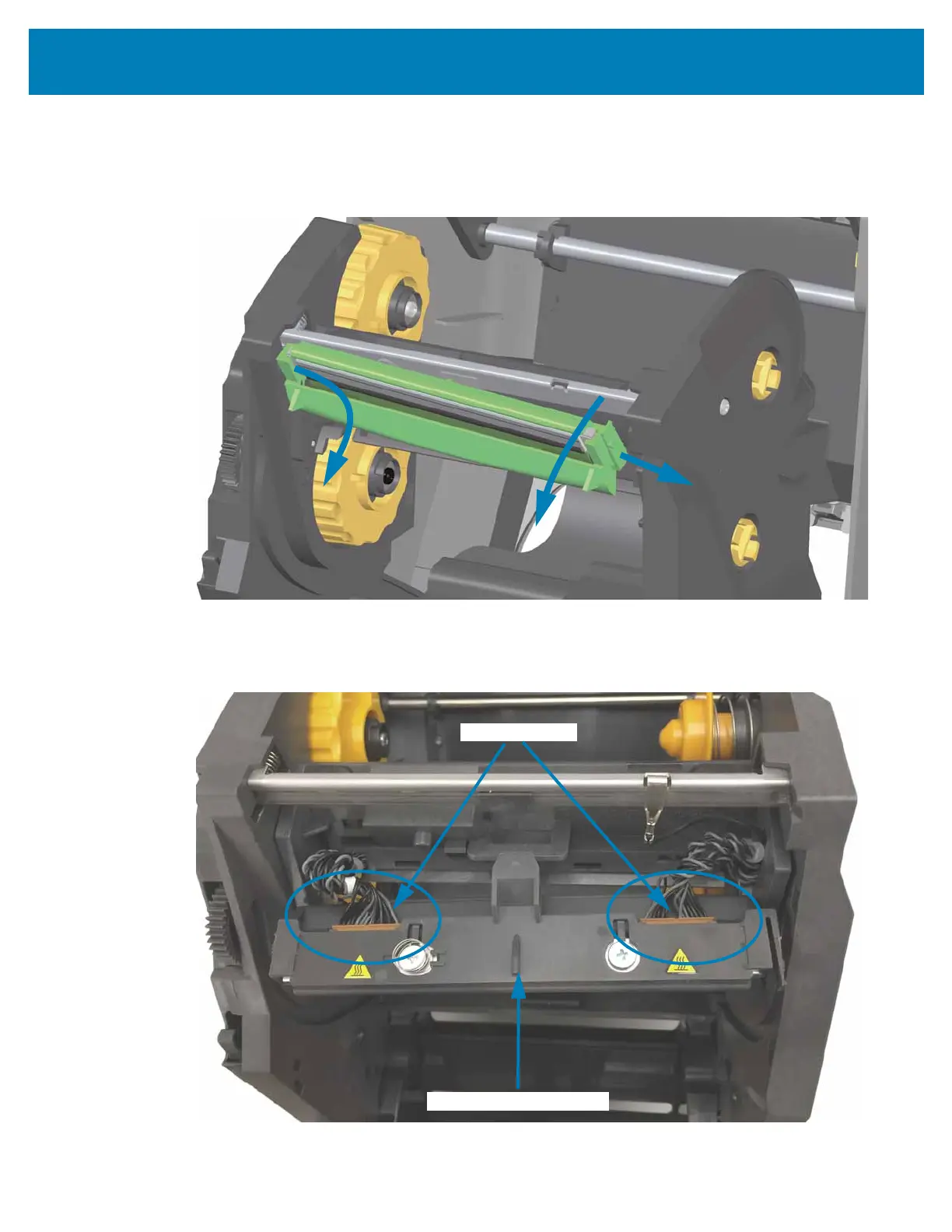

3. Swing the loose right side of the printhead out of the printer. Pull it to the right a little to

get the left side of the printhead clear. Pull the printhead down and free of the ribbon

carriage to gain access to its attached cables.

4. Gently but firmly pull the two printhead cable bundle connectors off of the printhead.

Printhead Assembly

Connectors
