Maintenance

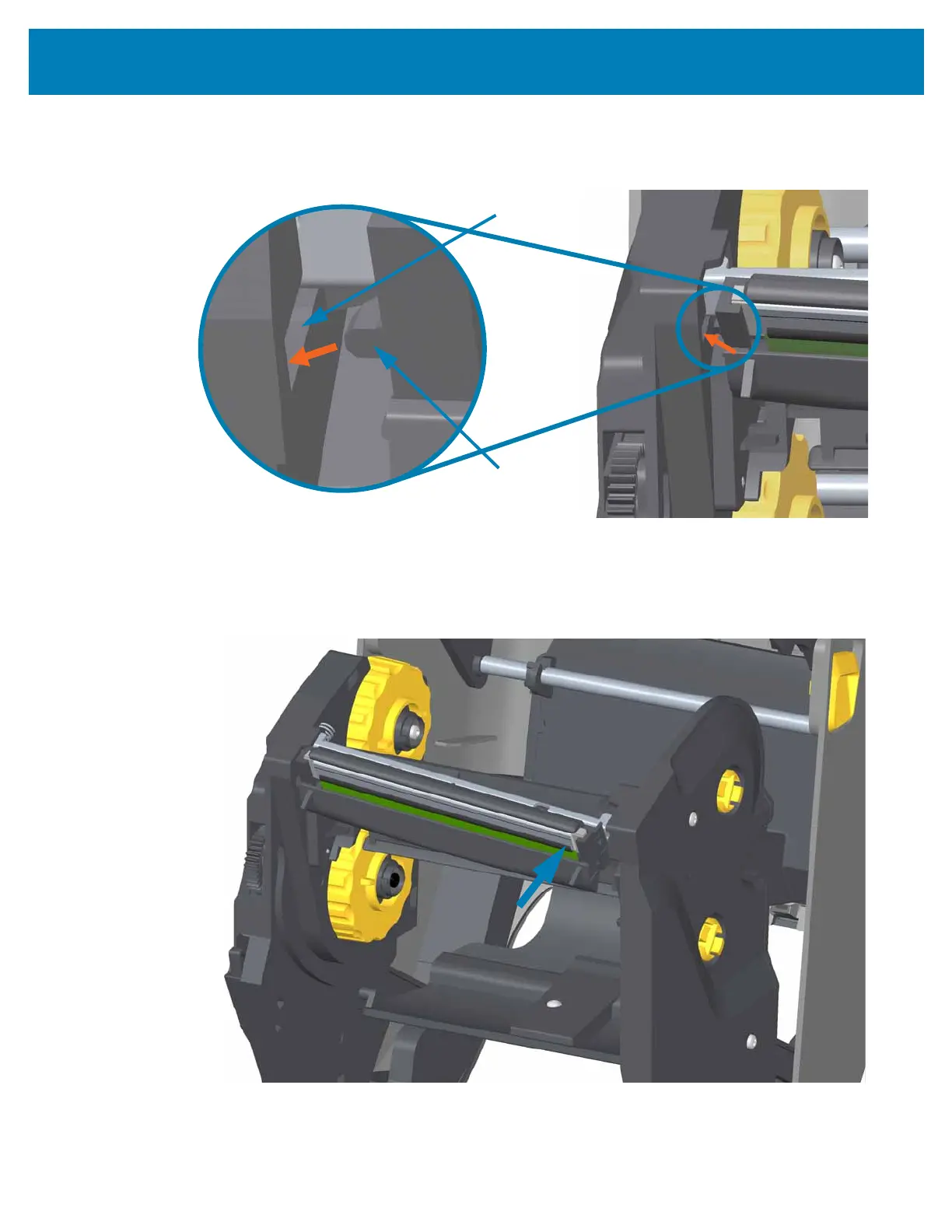

4. Insert the left side tab of the printhead assembly into the recessed slot on the left side

of the Printhead Actuator Arm.

5. Push the right side of the printhead into the printer until the latch locks the right side of

the printhead into the printer.

Tab

Slot
