Zebra ZD620 User Manual

154
Setup
Adjusting the Movable Sensor for Web (Gap) Sensing
The movable sensor for web/gap sensing supports multiple positions.
• The movable sensor’s ‘Default’ position is ideal for most label types.
• The adjustment range is ‘from center’ to ‘off-center’ positions which are ideal for
printing two (2) labels side by side on a roll.
• The movable sensor adjustment range covers sensor positions use by legacy
Zebra printers.
• Web (Gap) sensing with the movable sensor only functions when the movable
sensor’s alignment arrow points to any position on the alignment key.
Zebra Printer Models Fixed Sensor Position Relative to a ZD-Series Printer
• Default — Zebra Models: G-Series ™ fixed position sensors, LP/TLP 2842 ™ ,
LP/TLP 2844 ™ , LP/TLP 2042 ™
• Center Aligned — Zebra Model: LP/TLP 2742 ™
C
L

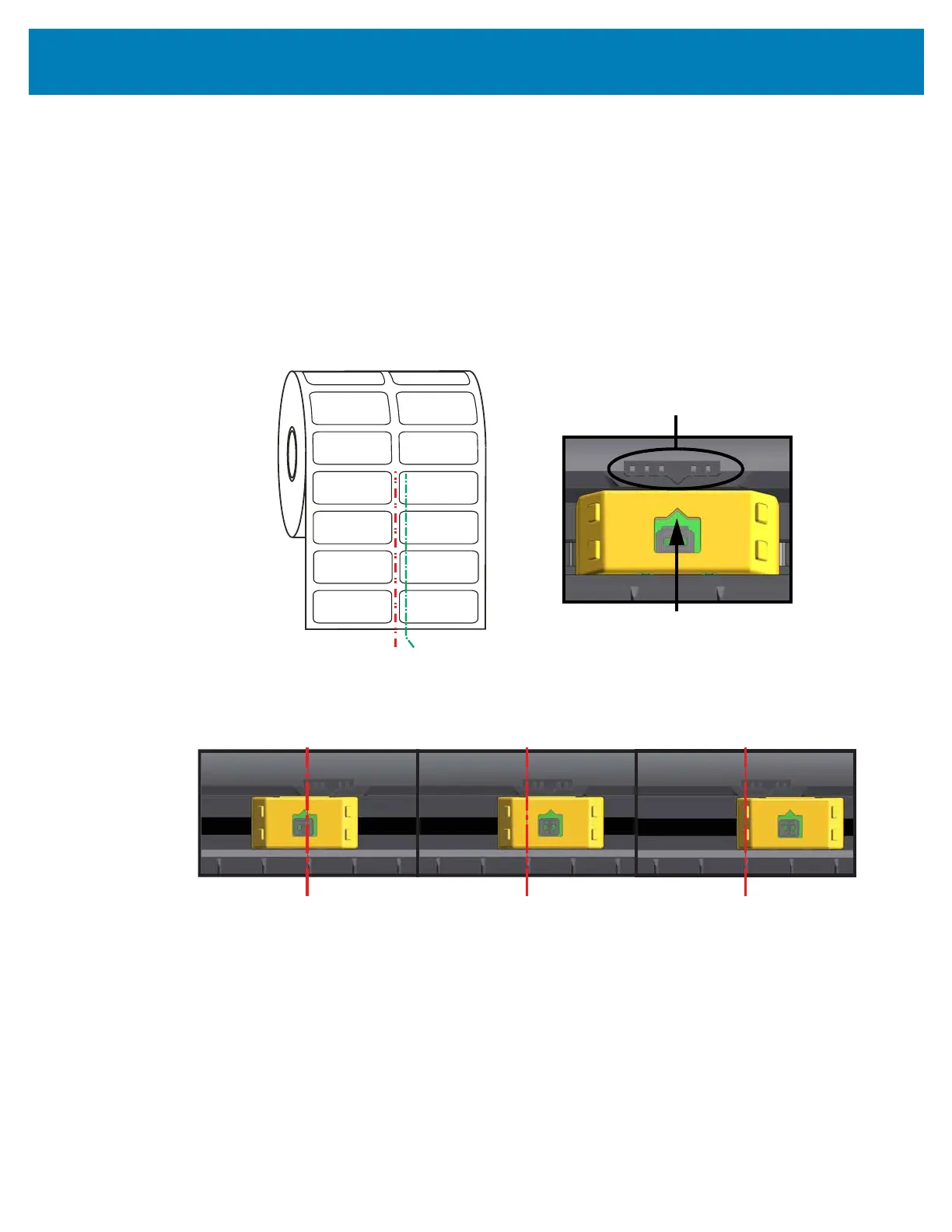

Default Gap
Sensing Position
Center Line -
Alignment Key
Alignment Arrow
(Default Position)
C
L
C
L
C
L
Adjustment Range - Left to Right
DefaultCenter Aligned Maximum Right

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
