Setup for Windows

6. Select Wireless and then click Next.

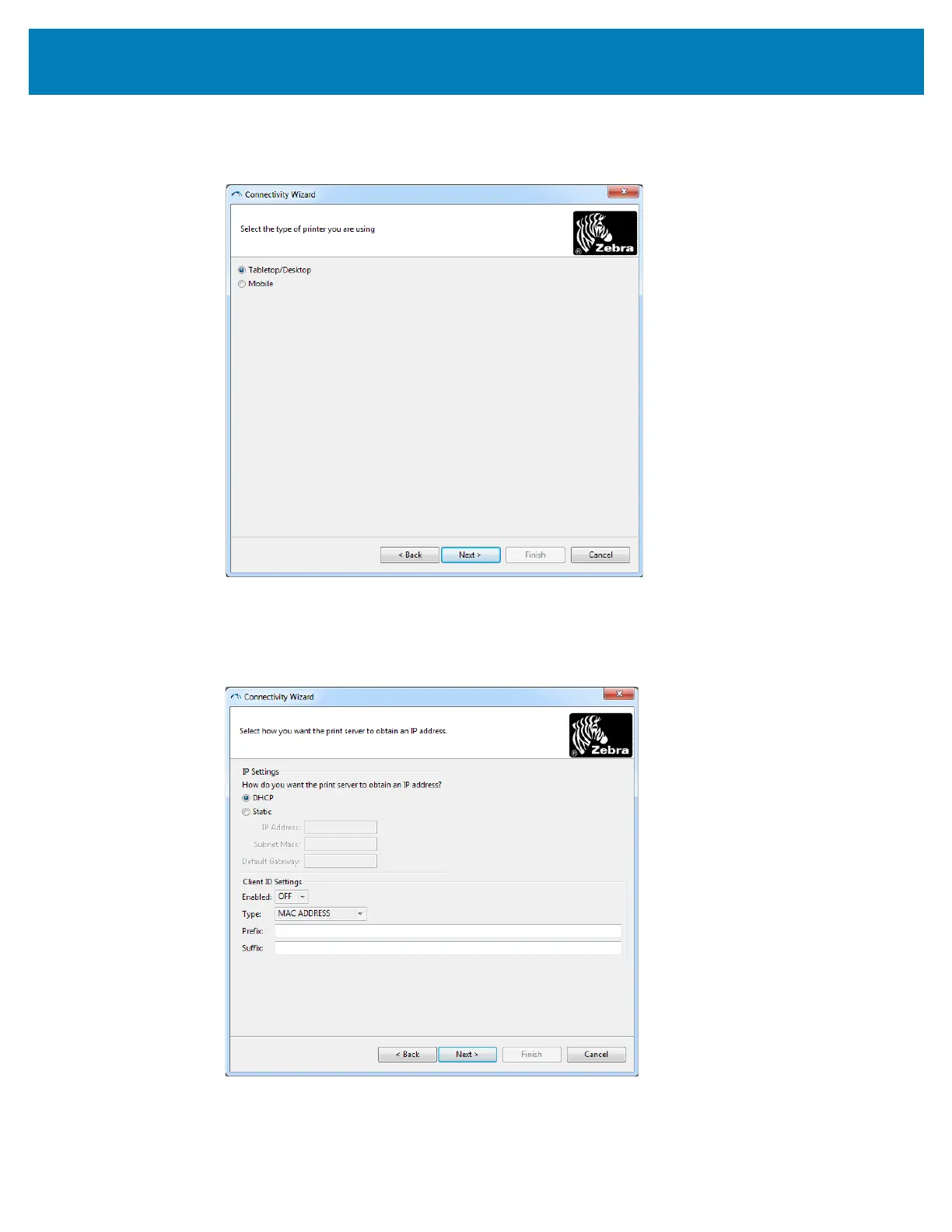

The wizard prompts you for the type of printer you are using.

7. Select the type of printer you are using and then click Next.

The wizard prompts for the wireless IP information.
