195

Setup for Windows

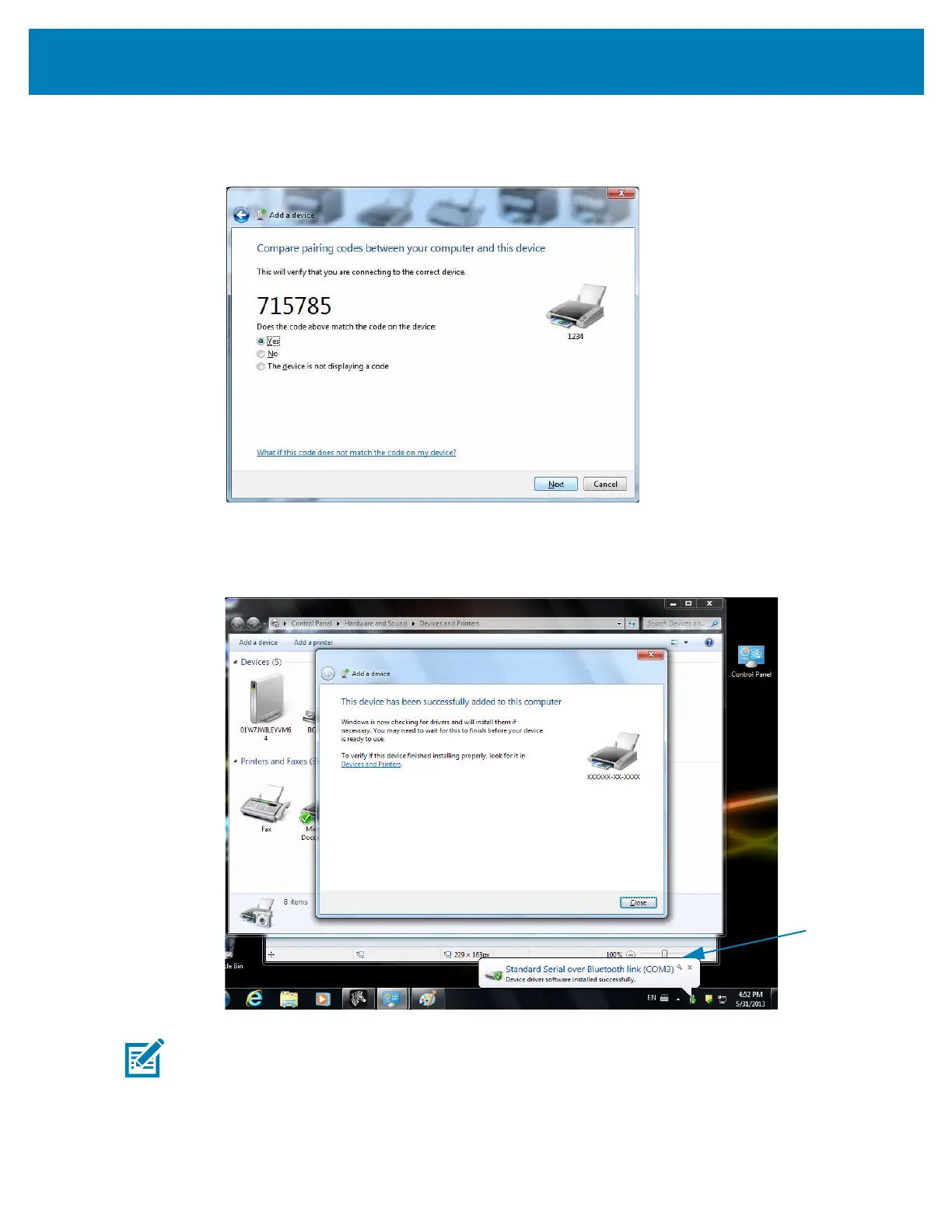

6. The printer will print a pairing code. Verify that the pairing numbers match with those

on your display screen. If the numbers match, then press the ‘Next button’ in the ‘Add

a device’ window.

7. When the pairing process successfully completes, the following message will be

displayed.

Note • The COM port number displayed in the task bar pop-up. It will only remain for a few seconds.
