211

Print Operations

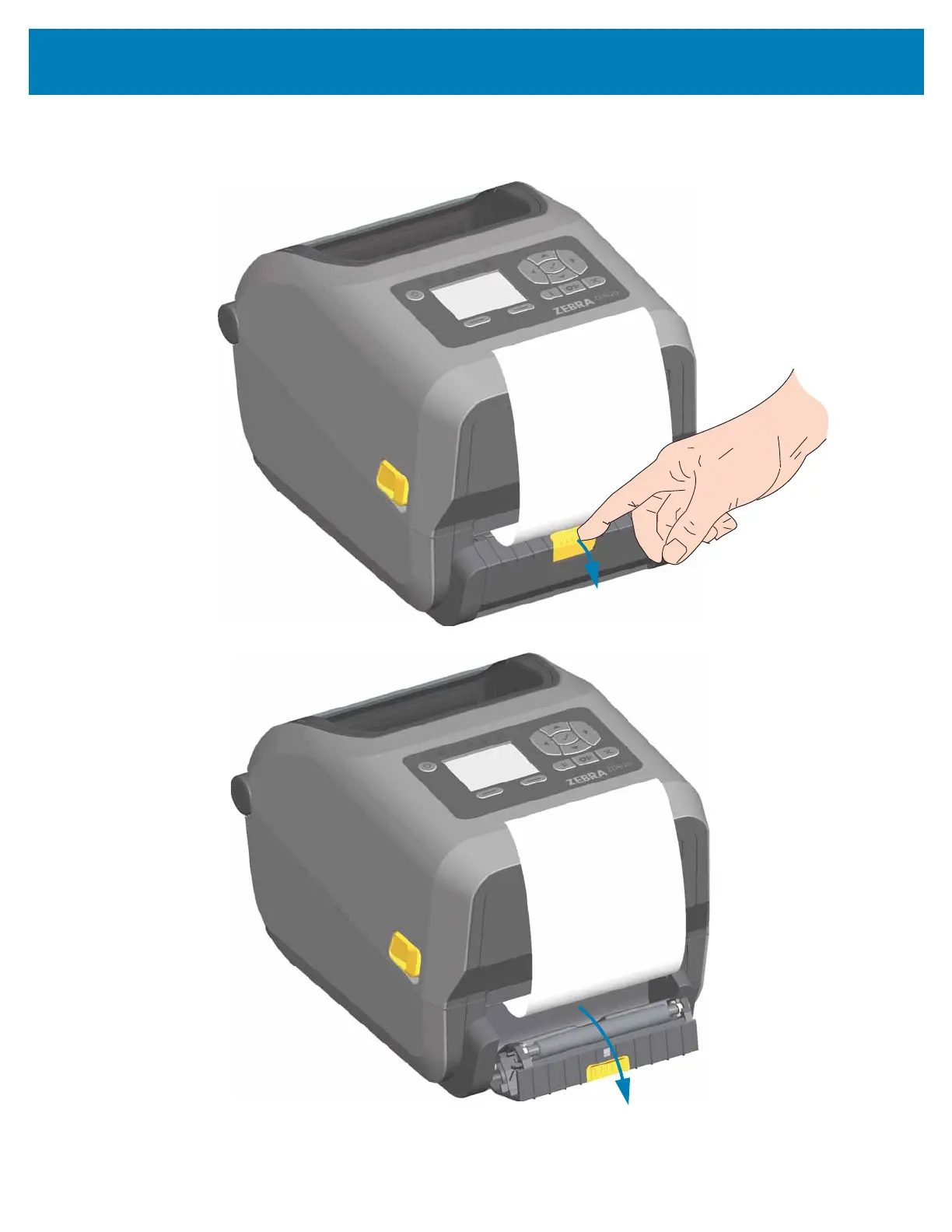

2. Lift the liner over the top of the printer. Pull the gold latch in the center of dispenser

door away from the printer and the door will open.
