234

USB Host Port and Link-OS Demonstration Examples

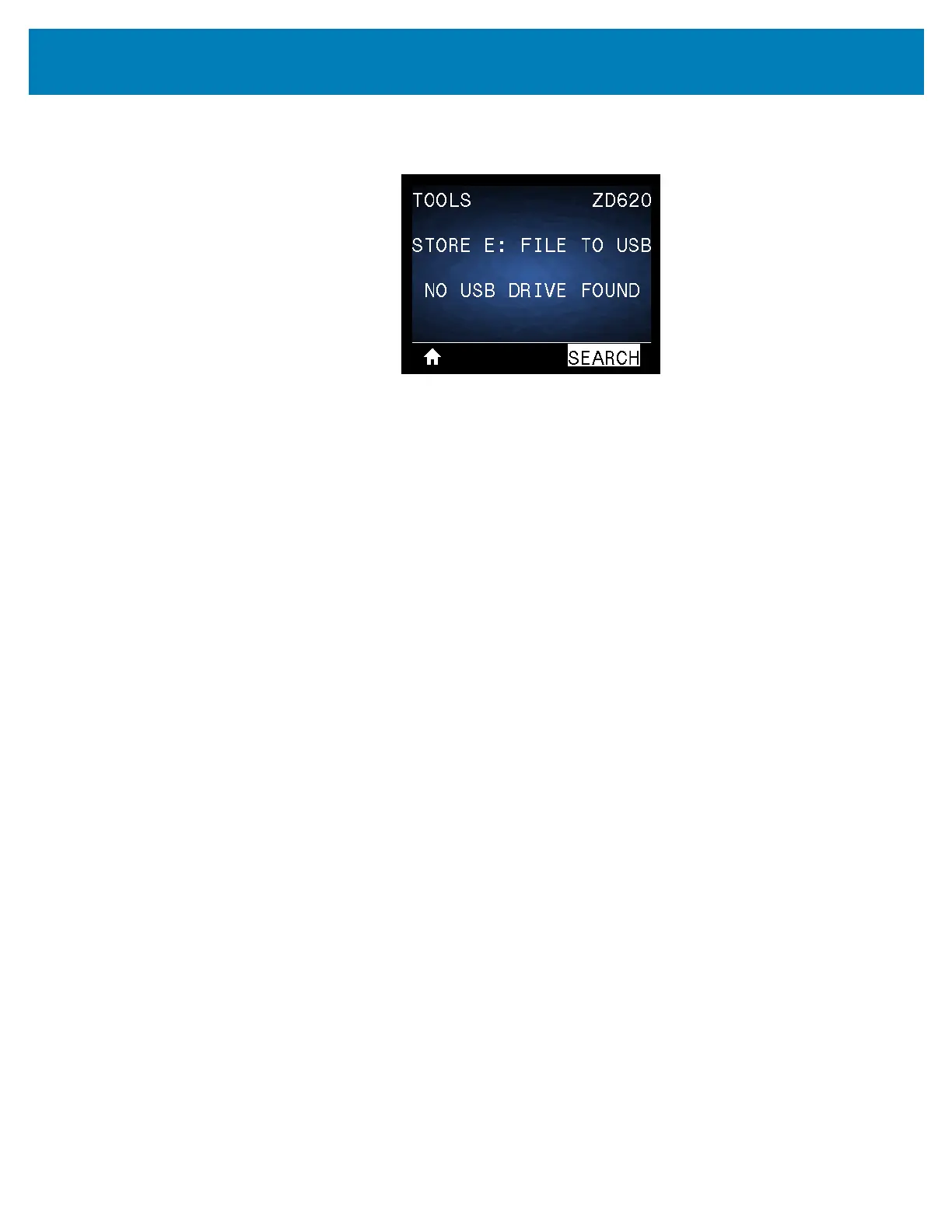

NOTE: You can now copy these files from the printer to a USB Flash drive using the user

menu item STORE E: FILE TO USB.

The option SELECT ALL is available to store all of the available files from the printer to

the USB Flash drive. Any .ZPL file that is copied will be post-processed such that the

contents of the file will be suitable to be sent to a printer for normal execution.
