329

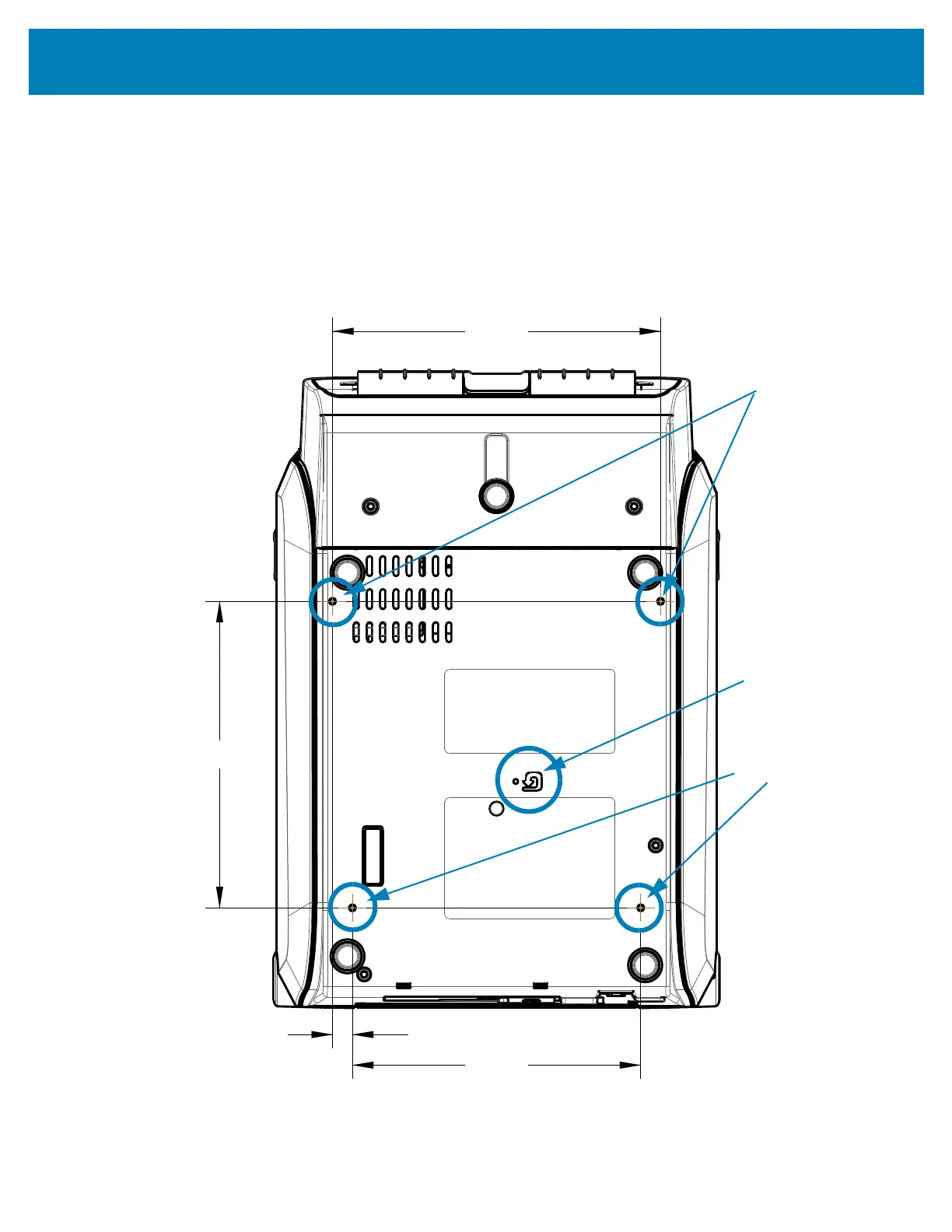

Dimensions

ZD620 / ZD420 Ribbon Cartridge Thermal Transfer Models

139.0

148.8

130.8

9.0

Dimensions are in millimeters (mm)

Mounting Holes

Hardware Reset

Access

(Provide 20-25

mm hole in

mounting plate or

surface)

Use M3 thread forming screws with maximum hole depth of 6 mm into the printer body.

Note - Do not remove the rubber feet or the printer can overheat.
