Chapter 5 Web Interface Tutorials

AX/DX/EX/PX Series User’s Guide

111

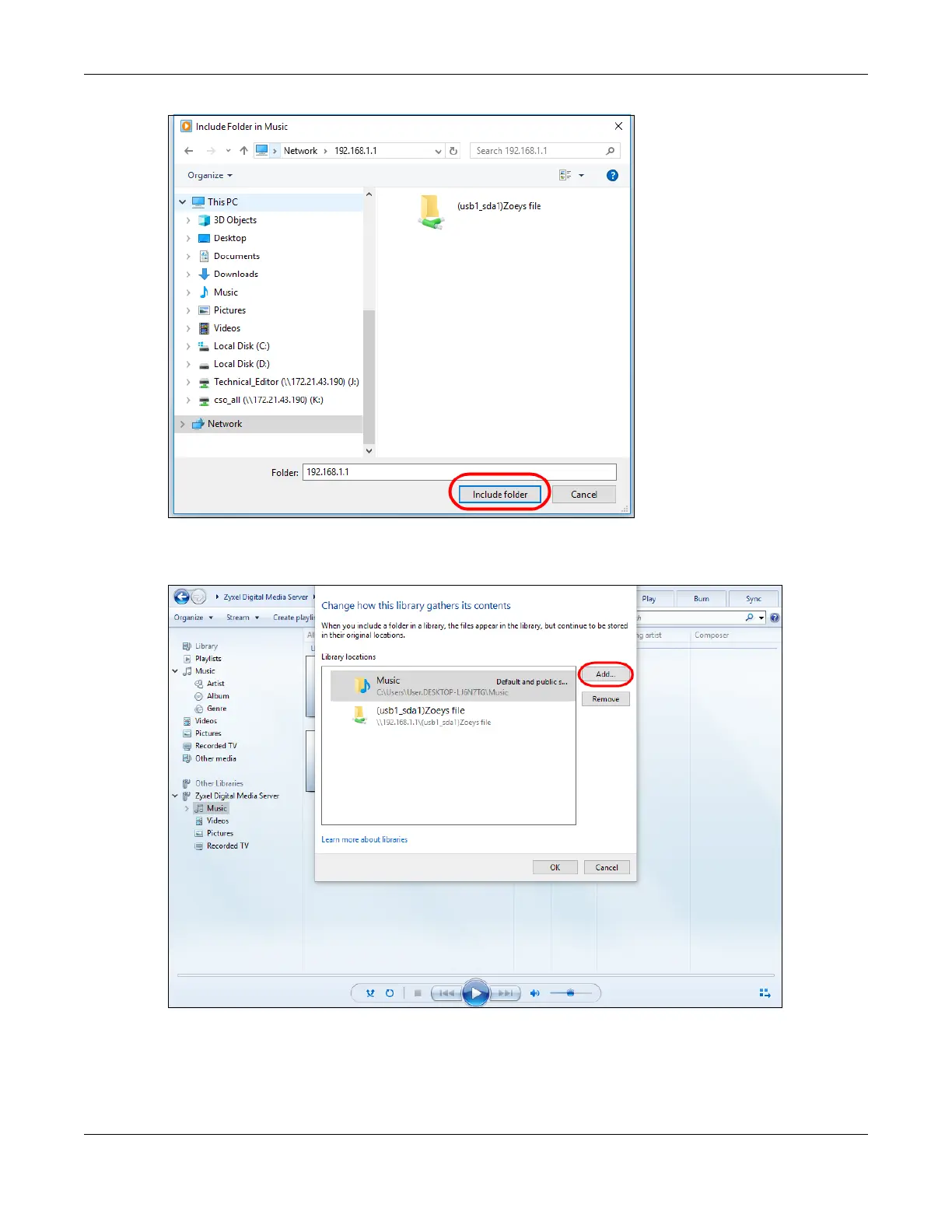

3 Select the shared folder, and then click Add to add it to your Media Library. Click OK to save the

settings.

4 In the right panel, you can browse and play the files available in the USB storage device based on the

category (Music, Video, Pictures, Recorded TV) you selected.
