Chapter 2 Hardware
AX/DX/EX/PX Series User’s Guide
54
The following table describes the items on the ports panels of DX3300-T0, DX3301-T0, DX5401-B0/B1,
EX3300-T0, EX3301-T0 and EX5401-B0/B1.
2.3.3 DX3300-T1 and EX3300-T1

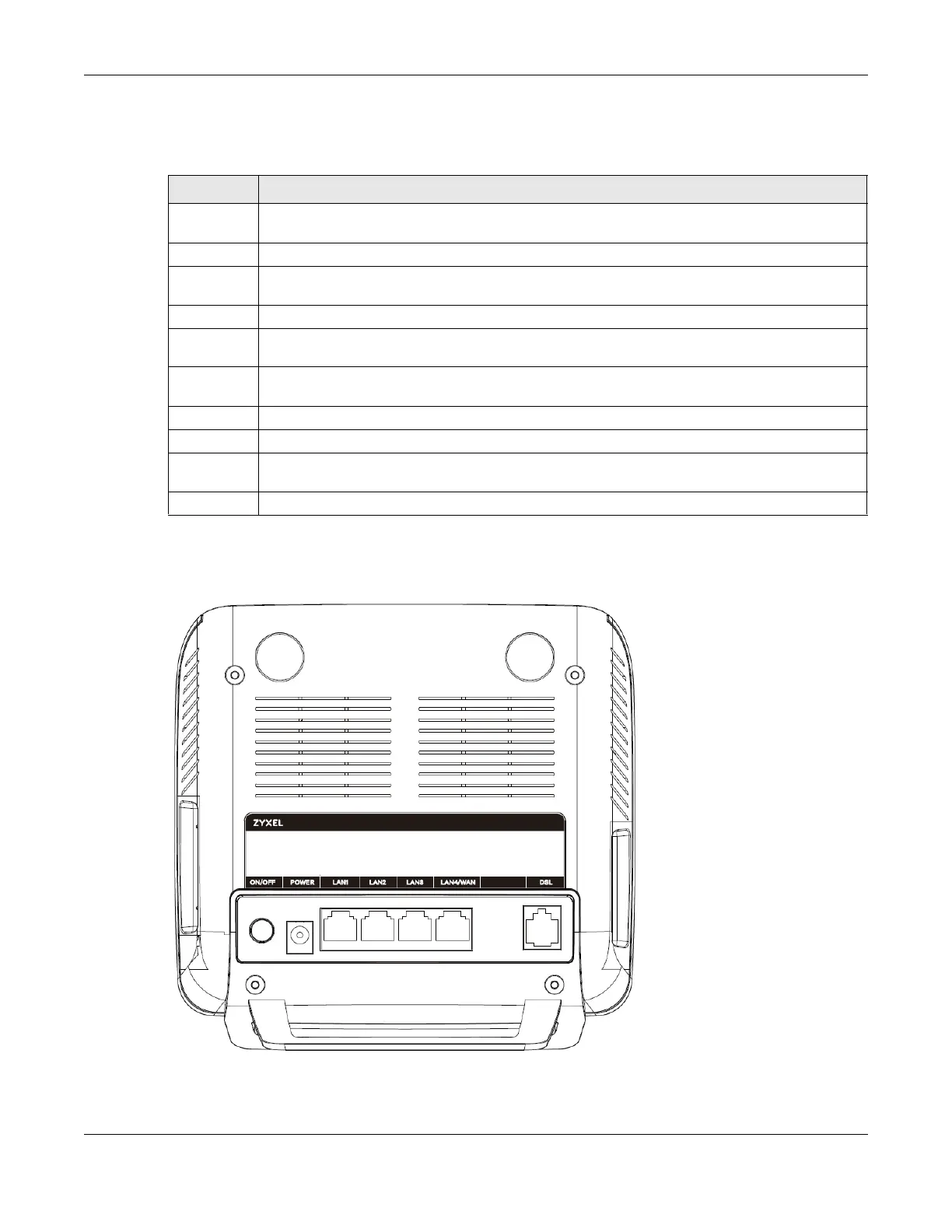

Figure 30 DX3300-T1
Table 16 Panel Ports and Buttons
LABEL DESCRIPTION
WAN For EX3300-T0, EX3301-T0 and EX5401-B0/B1, use an Ethernet cable to connect the WAN port to a
gateway/modem for Internet connection.
LAN1 – LAN4 Connect computers or other Ethernet devices to Ethernet ports for Internet access.
FIBER For DX5401-B0 and EX5401-B0/B1, Insert a compatible SFP transceiver to the FIBER port and connect
the fiber cable for Internet access.
USB The USB port is used for cellular WAN backup, file-sharing, and media server.
DSL For DX3300-T0, DX3301-T0 and DX5401-B0/B1, connect a DSL cable to the DSL port for Internet
connection.
PHONE1/2
For DX3301-T0, DX5401-B0/B1, EX3301-T0, and EX5401-B0/B1, connect analog phones to the PHONE
ports to make phone calls.
RESET Press the button to return the Zyxel Device to the factory defaults.
POWER Connect the power adapter and press the ON/OFF button to start the device.
WPS Press the WPS button once within 3 seconds to quickly setup a secure WiFi connection between the
device and a WPS-compatible client.
WLAN Press the WLAN button for more than 2 seconds to enable the WiFi function.
