AX/DX/EX/PX Series User’s Guide

460

CHAPTER 32

xDSL Statistics

32.1 xDSL Statistics Overview

You can view information about DSL statistics, such as port details, in this screen.

32.2 xDSL Statistics

Use this screen to view detailed DSL statistics. Click System Monitor > xDSL Statistics to open the following

screen.

Note: This screen is only available if your Zyxel Device is a DSL router.

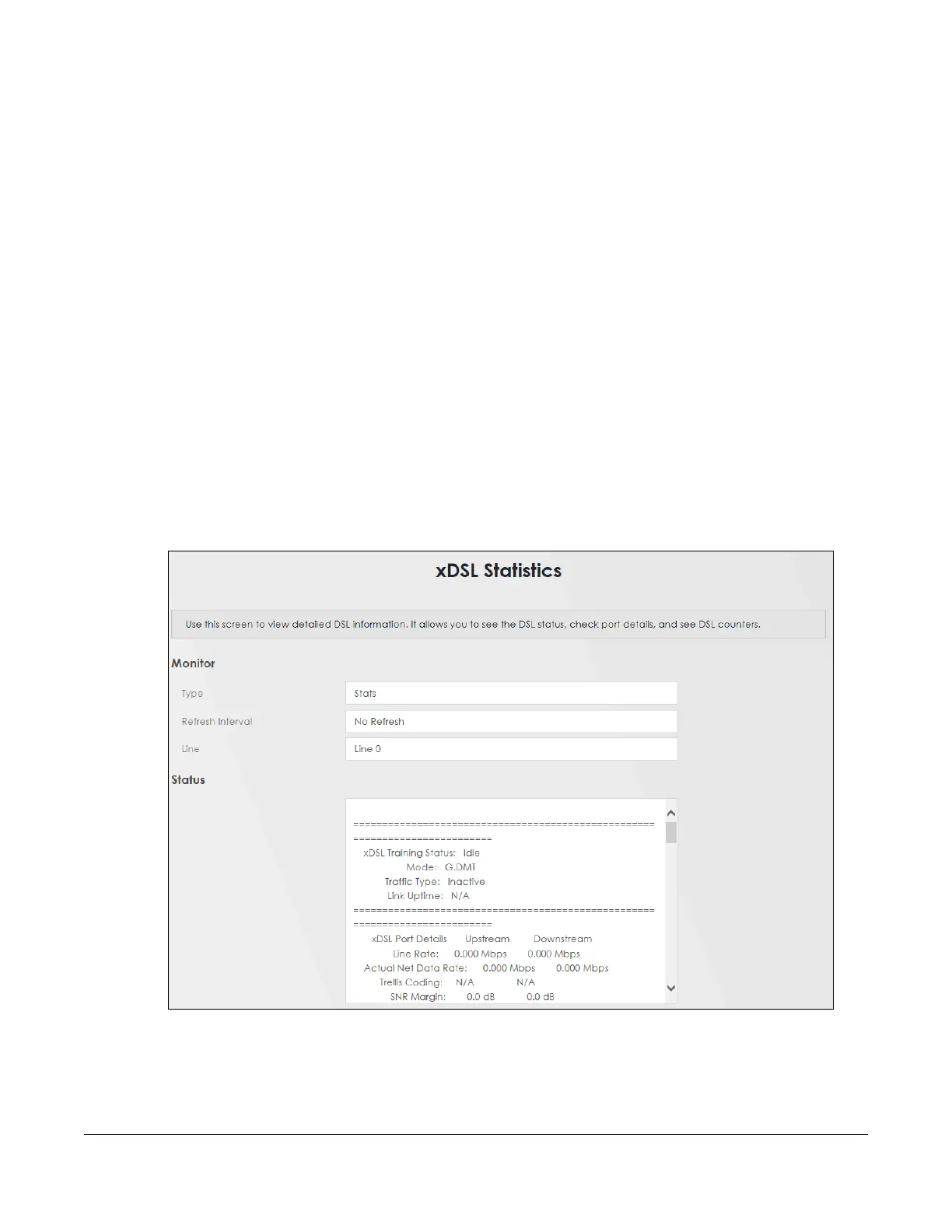

Figure 256 System Monitor > xDSL Statistics
