Chapter 13 Network Address Translation (NAT)
AX/DX/EX/PX Series User’s Guide
341

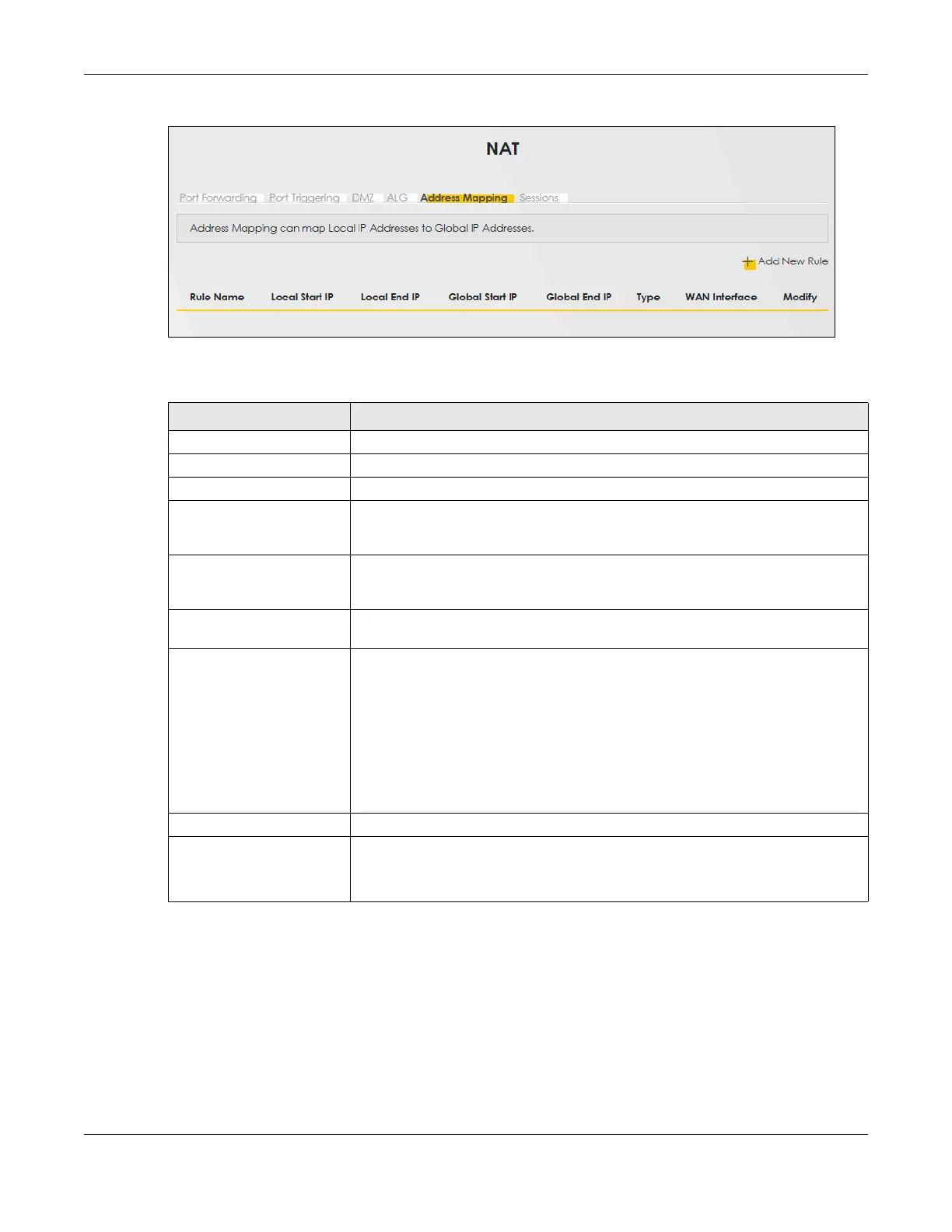

Figure 176 Network Setting > NAT > Address Mapping
The following table describes the fields in this screen.
13.6.2 Add New Rule Screen
To add or edit an address mapping rule, click Add New Rule or the Modify icon in the Address Mapping
screen to display the screen shown next.
Table 105 Network Setting > NAT > Address Mapping
LABEL DESCRIPTION
Add New Rule Click this to create a new rule.
Rule Name This is the name of the rule.
Local Start IP This is the starting Inside Local IP Address (ILA).
Local End IP This is the ending Inside Local IP Address (ILA). If the rule is for all local IP addresses,
then this field displays 0.0.0.0 as the Local Start IP address and 255.255.255.255 as the
Local End IP address. This field is blank for One-to-One mapping types.
Global Start IP This is the starting Inside Global IP Address (IGA). Enter 0.0.0.0 here if you have a
dynamic IP address from your ISP. You can only do this for the Many-to-One
mapping type.
Global End IP This is the ending Inside Global IP Address (IGA). This field is blank for One-to-One
and Many-to-One mapping types.
Type This is the address mapping type.
One-to-One: This mode maps one local IP address to one global IP address. Note
that port numbers do not change for the One-to-One NAT mapping type.
Many-to-One: This mode maps multiple local IP addresses to one global IP address.
This is equivalent to SUA (i.e., PAT, port address translation), the Device's Single User
Account feature that previous routers supported only.
Many-to-Many: This mode maps multiple local IP addresses to shared global IP
addresses.
WAN Interface This is the WAN interface to which the address mapping rule applies.
Modify Click the Edit icon to go to the screen where you can edit the address mapping rule.
Click the Delete icon to delete an existing address mapping rule. Note that
subsequent address mapping rules move up by one when you take this action.
